Torque Specifications
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
A/C SYSTEM TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | ||
|---|---|---|---|
| A/C Compressor Fitting Bolts | 11.6-16.6 (15.7-22.6) | ||
| A/C Compressor Mounting Bolts | 11.6-16.6 (15.7-22.6) | ||

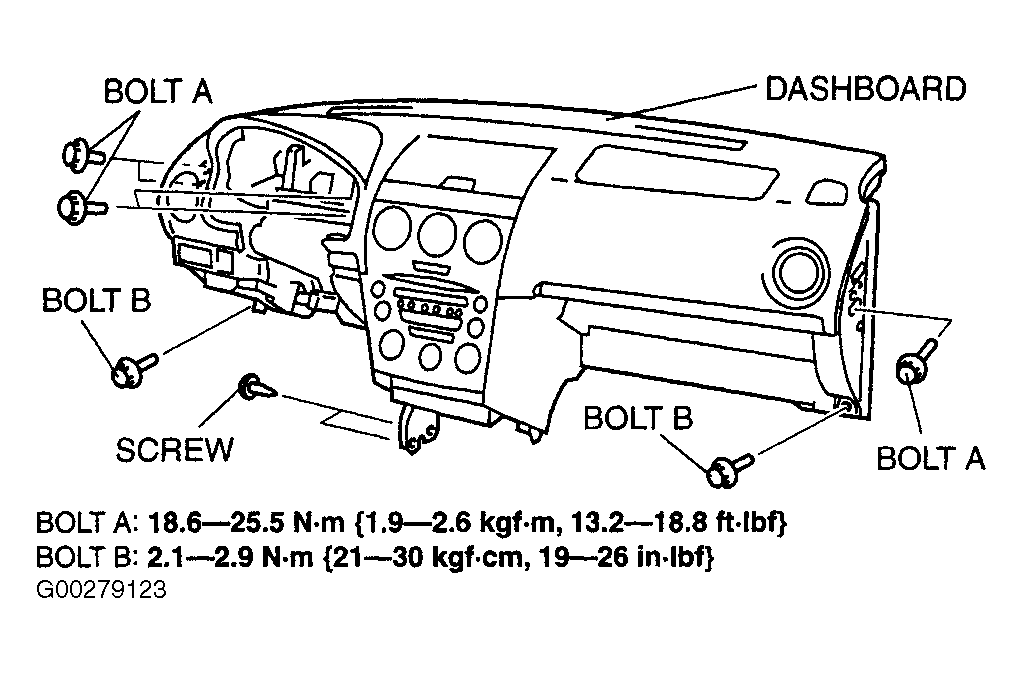

| Dashboard Mounting Bolts (Bolt "A") (1) | 13.2-18.8 (18.6-25.5) | ||
| Power Steering Oil Pump Mounting Bolt | 14-18 (18.6-25.5) | ||
| Power Steering Pressure Pipe Mounting Bolts | 22-32 (29.4-44.1) | ||
| Power Steering Oil Pump Bracket Mounting Bolt (3.0L) | 14-18 (18.6-25.5) | ||
| Steering Wheel Nut | 30-36 (39.2-497) | ||
| INCH Lbs. (N.m) | |||
| Dashboard Mounting Bolts (Bolt "B") (1) | 19-26 (2.1-2.9) | ||
| Drivers Side Air Bag Module Mounting Bolt | 79-112 (8.9-12.7) | ||
| Passenger Side Air Bag Module Mounting Bolt | 70-104 (7.9-11.7) | ||
| Steering Wheel Column Bolts | 79-112 (8.9-12.7) | ||
|
|||
