Second-Row Buckle Removal/Installation

1. Remove the seat cushion. See SECOND-ROW SEAT DISASSEMBLY/ASSEMBLY .
2. Remove the bolt, and then remove the second-row buckle.
3. Install in the reverse order of removal.

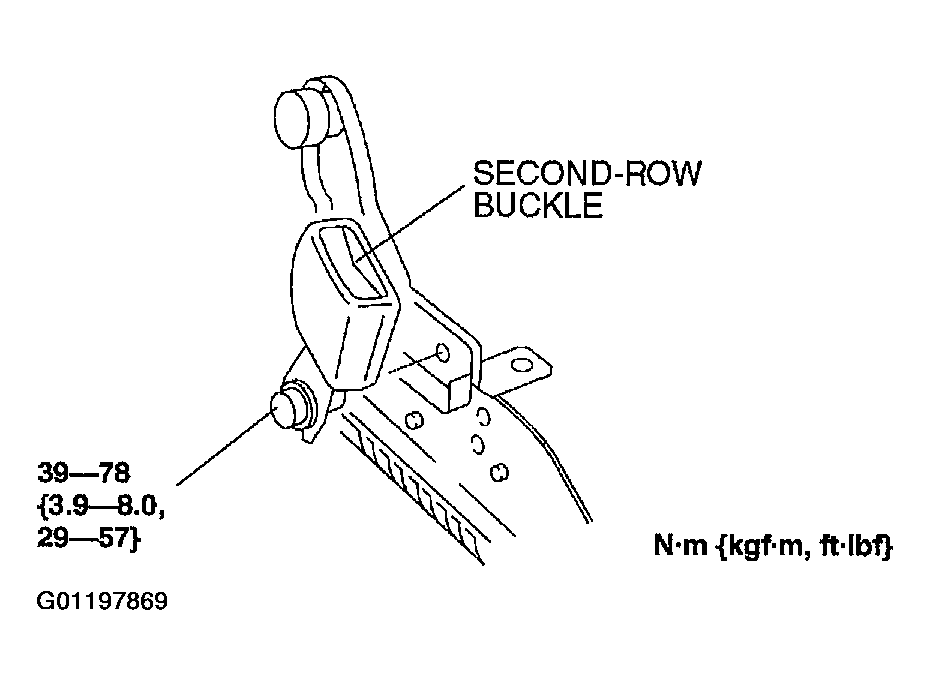

Fig 1: Removing Second Row Buckle

Courtesy of MAZDA MOTORS CORP.
