Front Tweeter Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the A-pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION .)

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING FRONT TWEETER

Component/Step No.	Component Description
1	Front tweeter (See FRONT TWEETER REMOVAL NOTE )
2	Connector

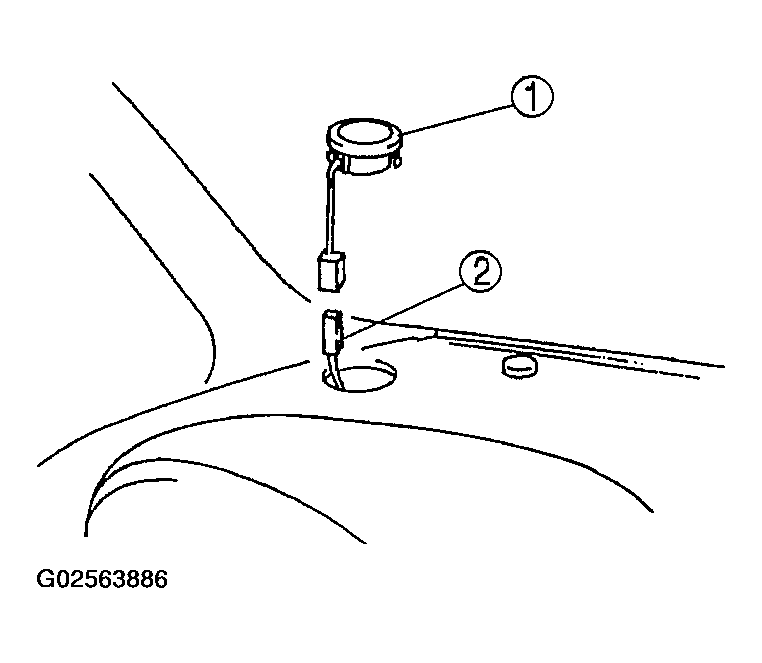

Fig 1: Removing/Installing Front Tweeter

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
