Generators & Regulators: Overhaul

Overhaul procedure is not available from manufacturer. To aid in overhaul, refer to illustration. See Fig 1.

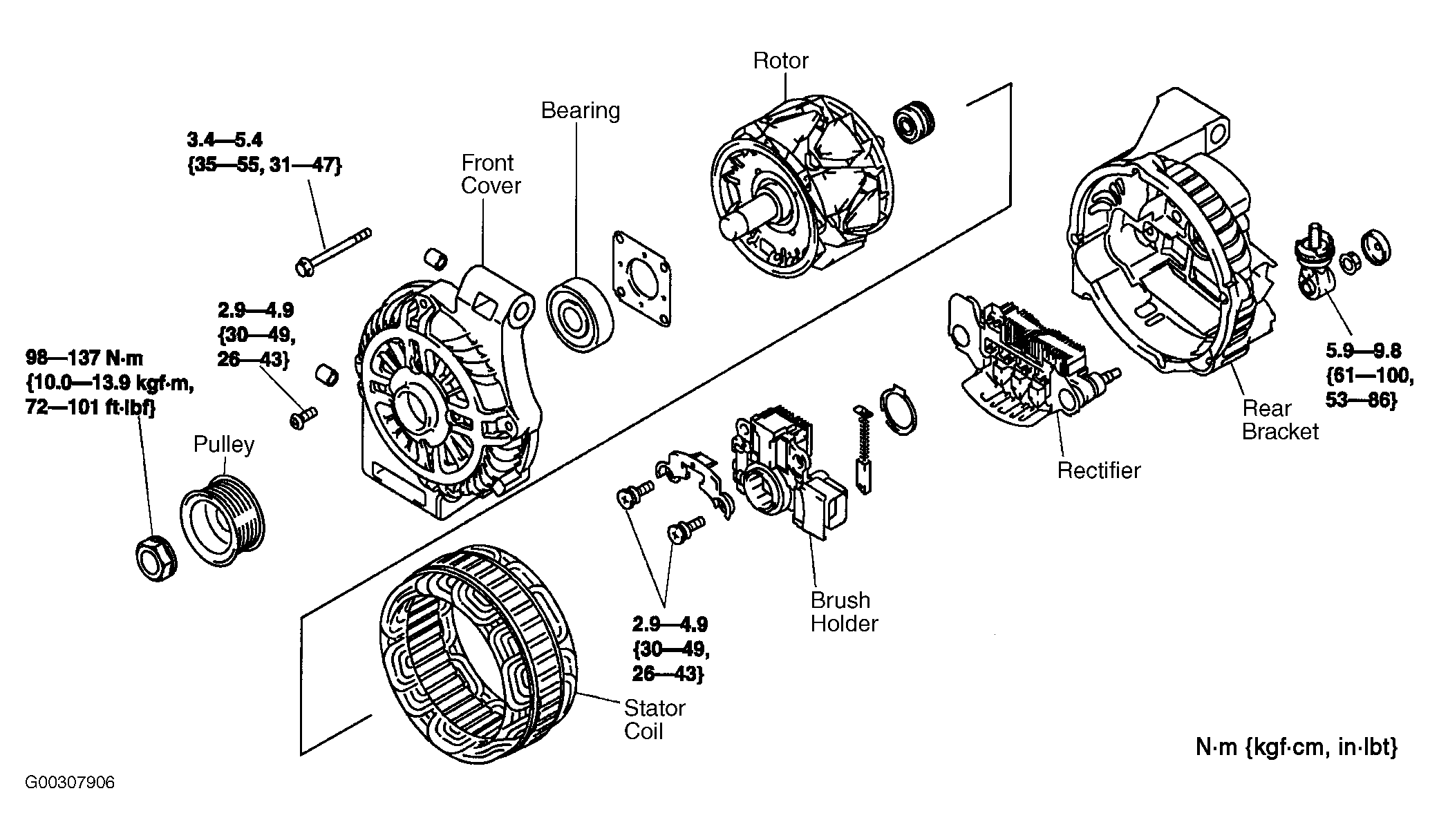

Fig 1: Exploded View Of Generator With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
