Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Inspect the following wiring harnesses for open or short circuit. (Continuity check)

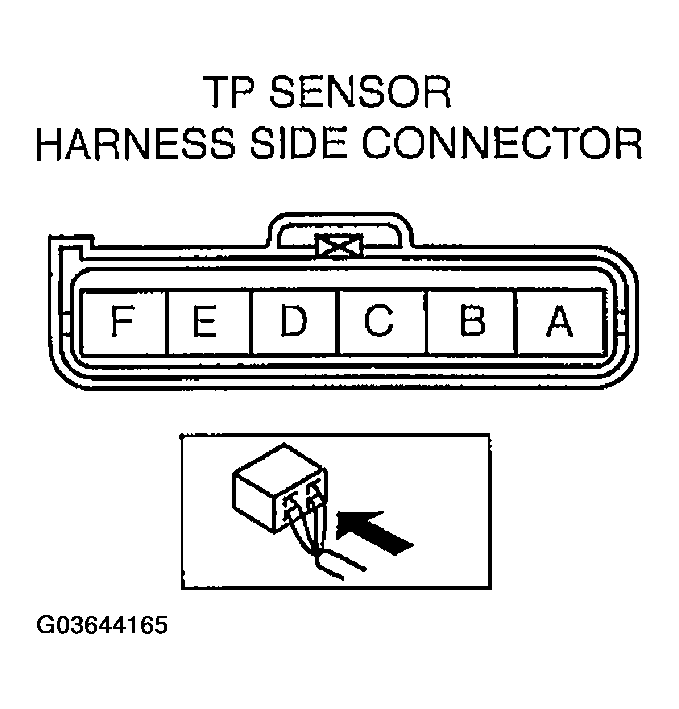

    Fig 1: Identifying TP Sensor Harness Side Connector
    G03644165Courtesy of MAZDA MOTORS CORP.
