Ignition Switch Removal/Installation

1. Disconnect the negative battery cable.
2. Remove the column cover.
3. Remove in the order indicated in Fig 1.
4. Install in the reverse order of removal.

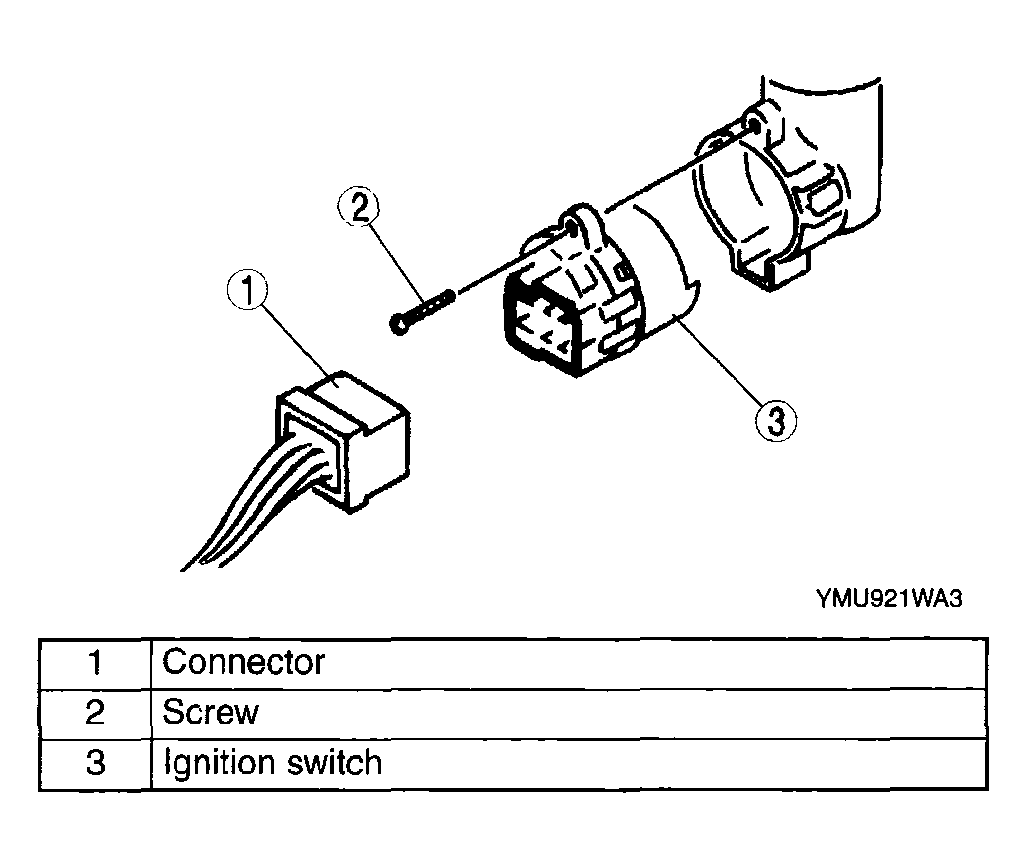

Fig 1: Identifying Ignition Switch

Courtesy of MAZDA MOTORS CORP.
