Instrument Cluster Removal/Installation: Notes

CAUTION:
  • When replacing the instrument cluster, the configuration procedure must be performed before removing the instrument cluster. If the configuration procedure is not performed before removing the instrument cluster, it is possible that the instrument cluster will not operate normally.
  1. Configure the instrument cluster (only when replacing it). (See INSTRUMENT CLUSTER CONFIGURATION ).
  2. Disconnect the negative battery cable.
  3. Pull down the adjusting lever of the tilt steering wheel and push the steering wheel down.
  4. Pull the steering wheel toward you.
  5. Remove the meter hood.
  6. Remove in the order indicated in the table.

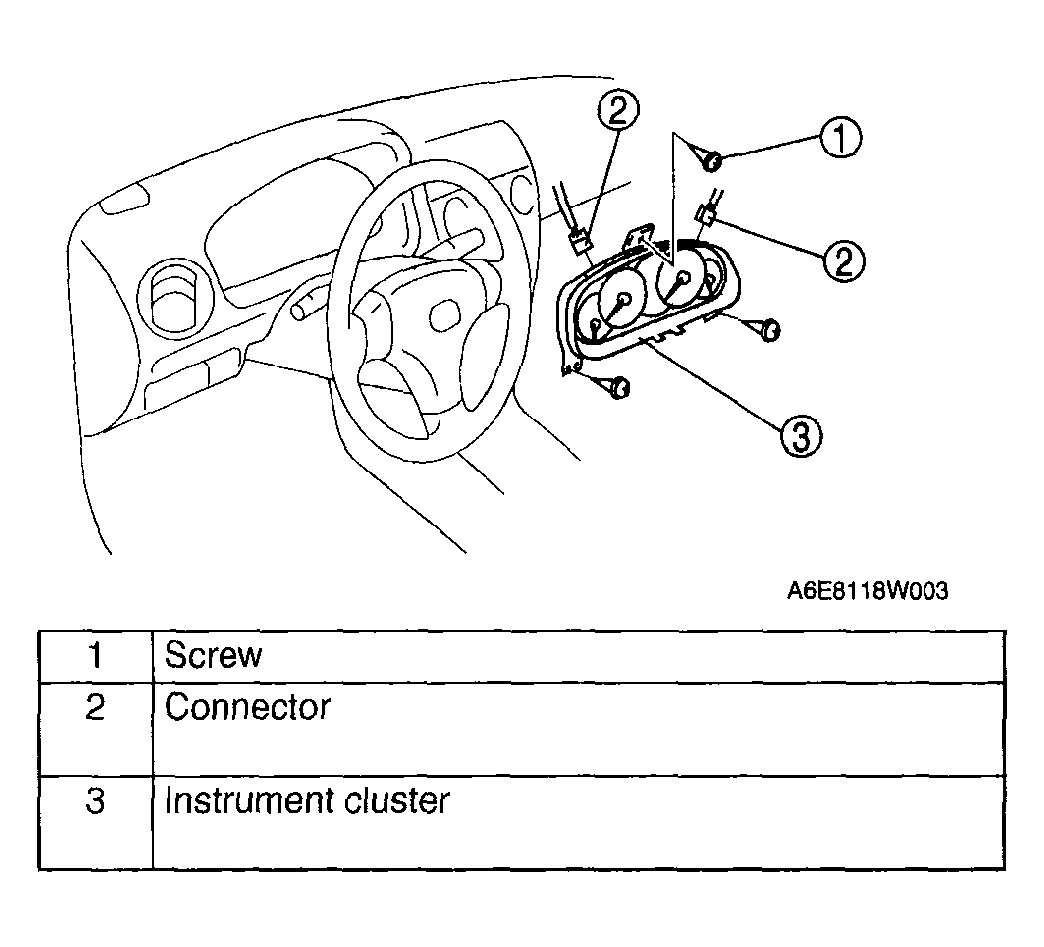

    Fig 1: Removing Instrument Cluster
    G04327719Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
    CAUTION:
    • The removed instrument cluster should be placed with the display side up to prevent grease from leaking from the meters.

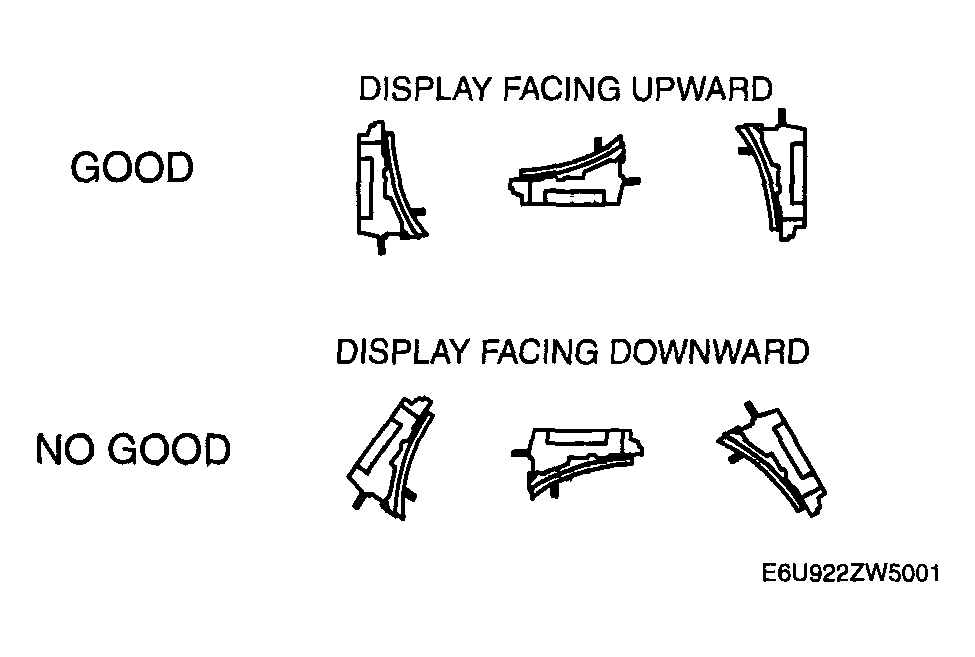

      Fig 2: Identifying Correct And Incorrect Placing Method For Instrument Cluster
      G04327720Courtesy of MAZDA MOTORS CORP.
