Circuit Open/Short Inspection: Notes

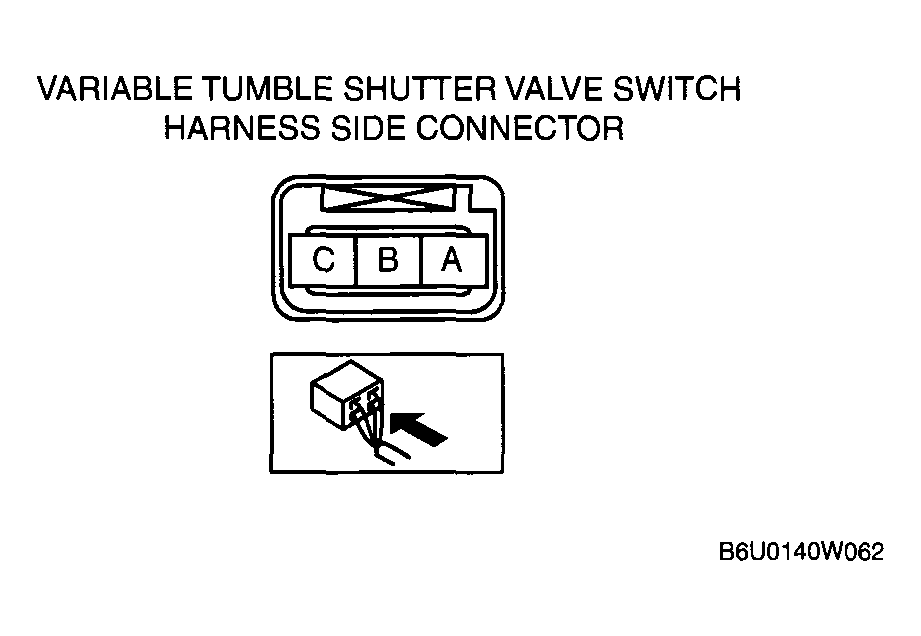

Fig 1: Identifying Variable Tumble Shutter Valve Switch Harness Side Connector Terminals
G04325147Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION ).
  2. Inspect the following harnesses for open or short circuit. (Continuity inspection)
