Circuit Open/Short Inspection: Notes

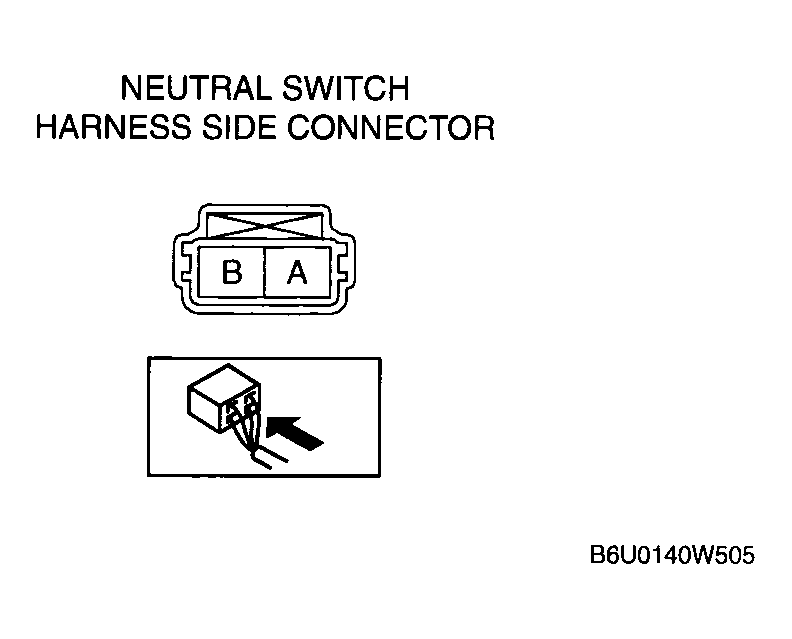

Fig 1: Identifying Neutral Switch Connector Terminals
G04325307Courtesy of MAZDA MOTORS CORP.

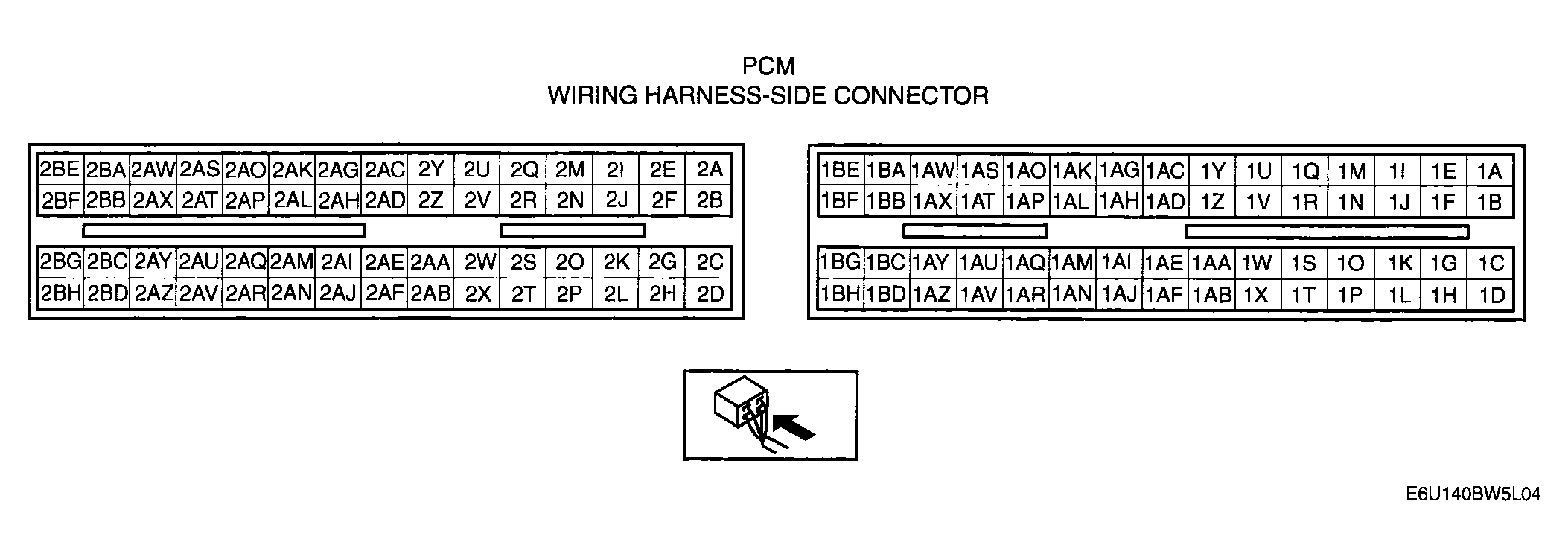

Fig 2: PCM Connector Terminal Identification
G04325308Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION ).
  2. Inspect the following harness for open or short circuit. (Continuity check)
