Pcm Removal/Installation
- When replacing the PCM, perform the following:
- PCM configuration (See PCM CONFIGURATION ).
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION )

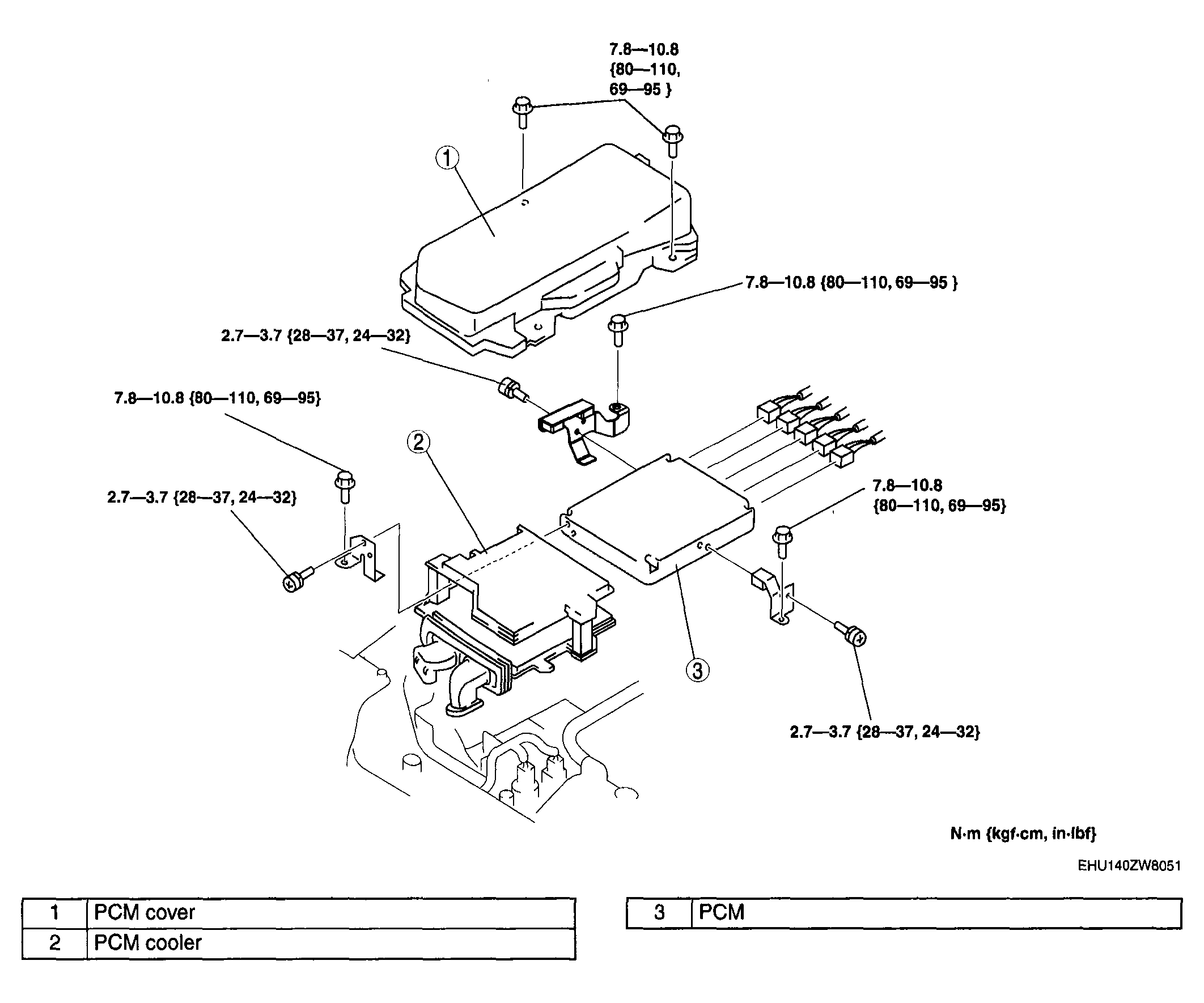

- Remove in the order indicated in 5.
- When replacing the PCM on the vehicles with the immobilizer system, perform the following:
- Immobilizer system component replacement/key addition and clearing (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING[WITH KEYLESS ENTRY SYSTEM] or IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING[WITH ADVANCED KEYLESS SYSTEM] ).
- Install in the reverse order of removal.
