Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

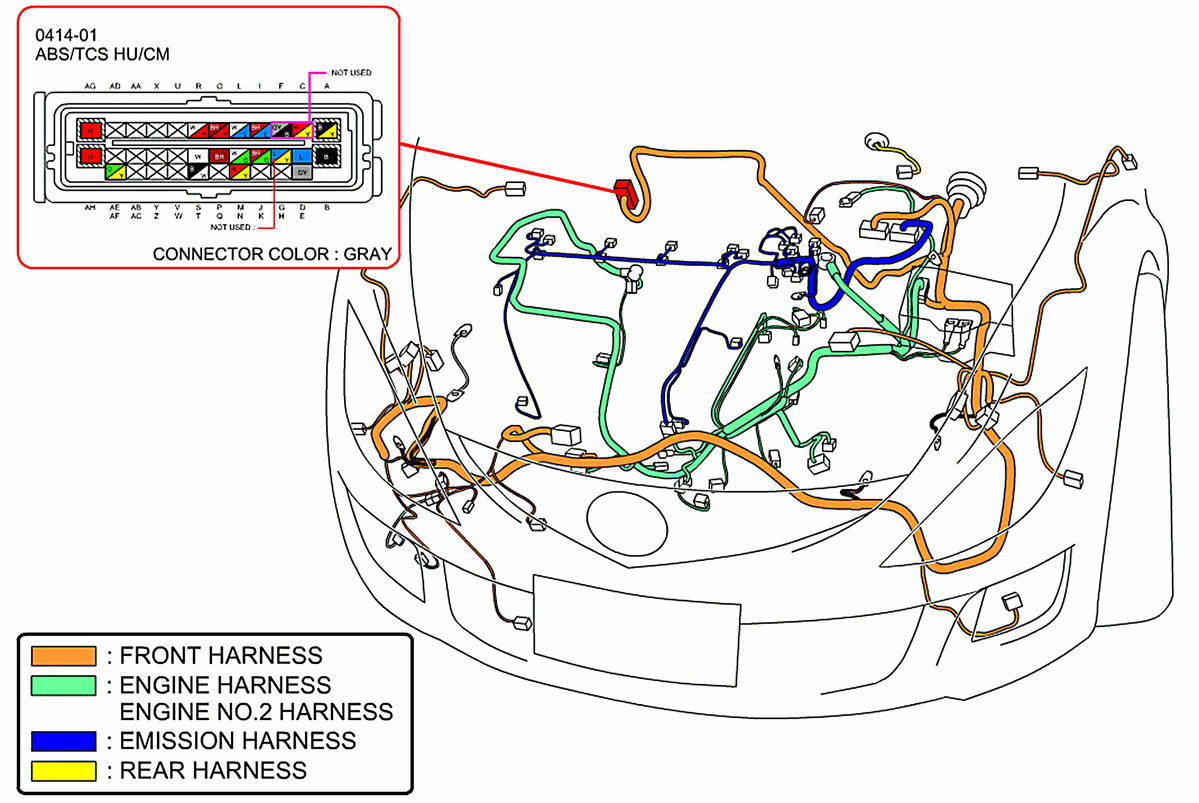

| ABS/TCS HU/CM | Right rear of engine compartment. See Figure. |

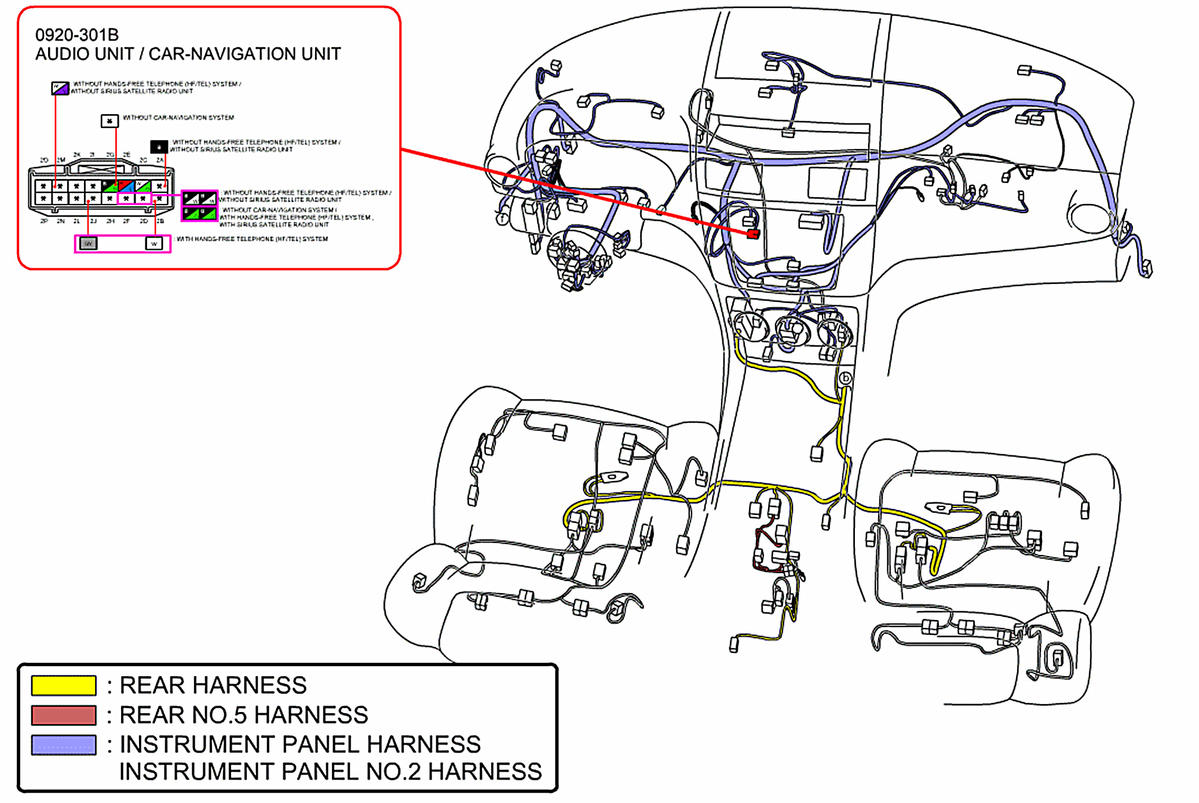

| Audio Unit/Car-Navigation Unit | Lower center of dash. See Figure. |

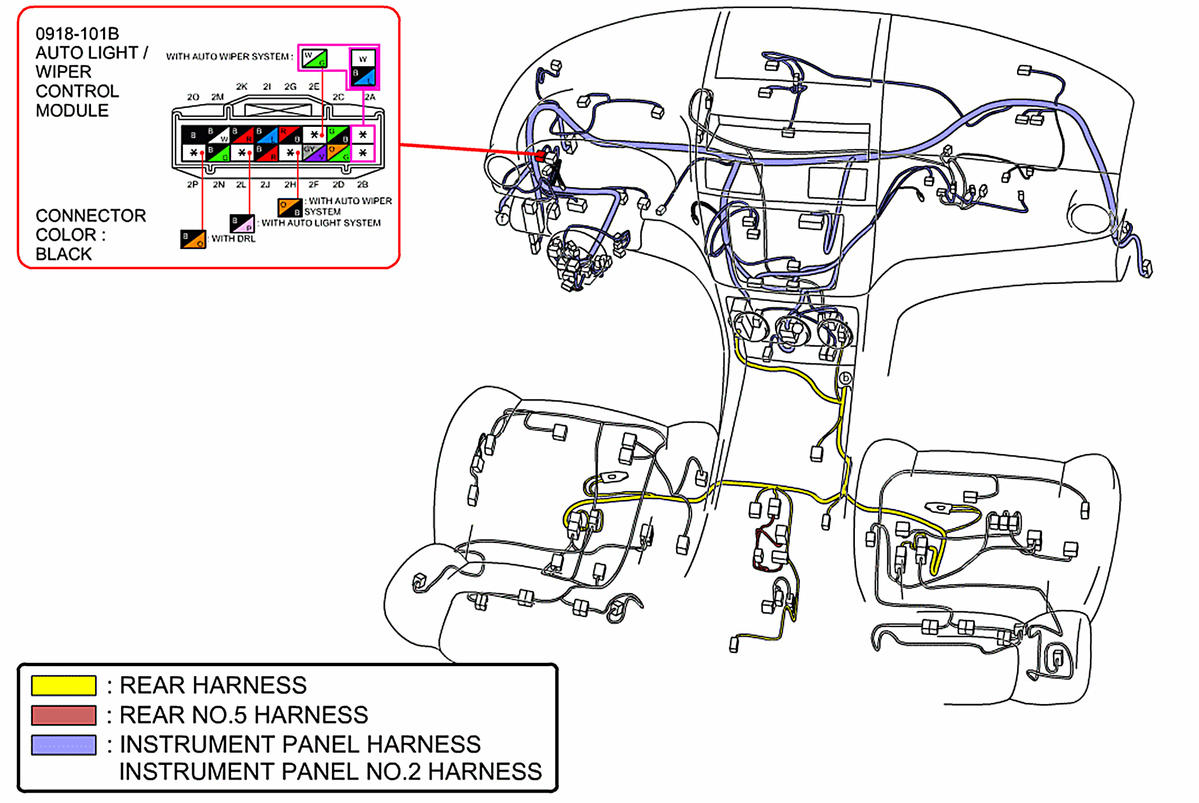

| Auto Light/Wiper Control Module | Behind left side of dash. See Figure. |

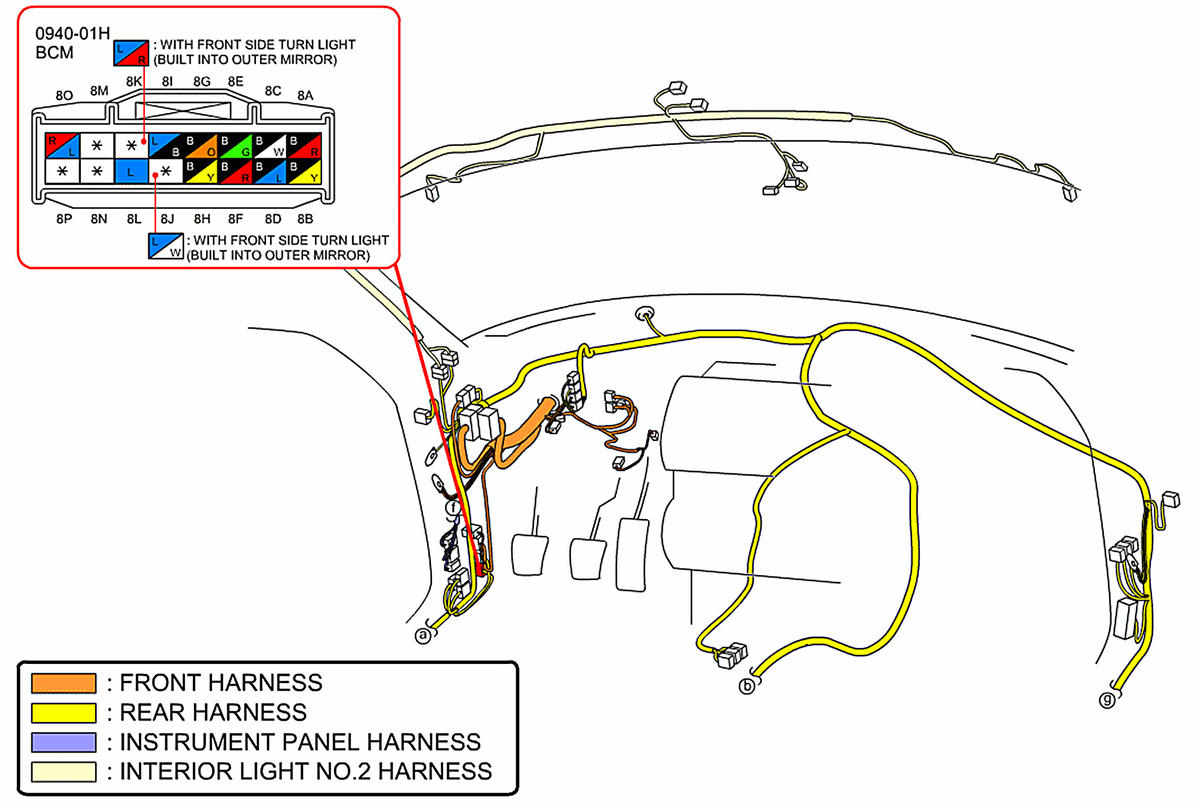

| BCM | Behind left kick panel. See Figure. |

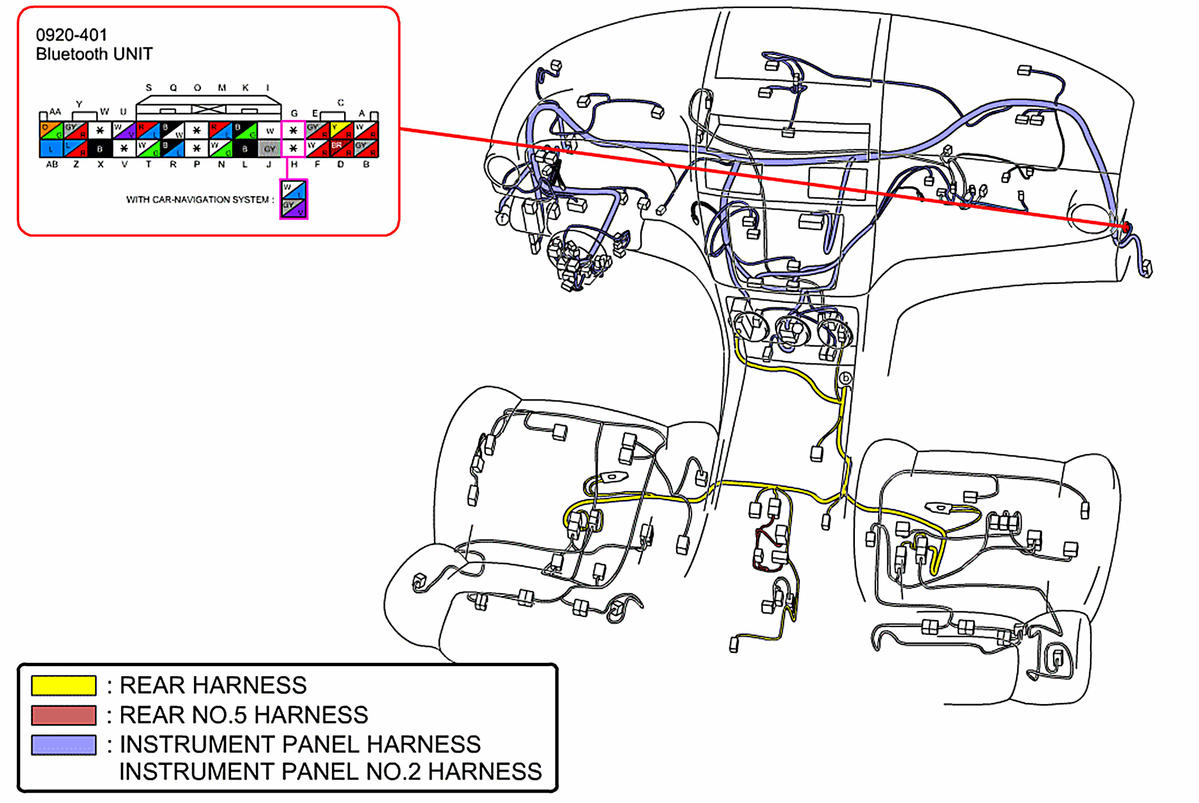

| Bluetooth Unit | Right end of dash. See Figure. |

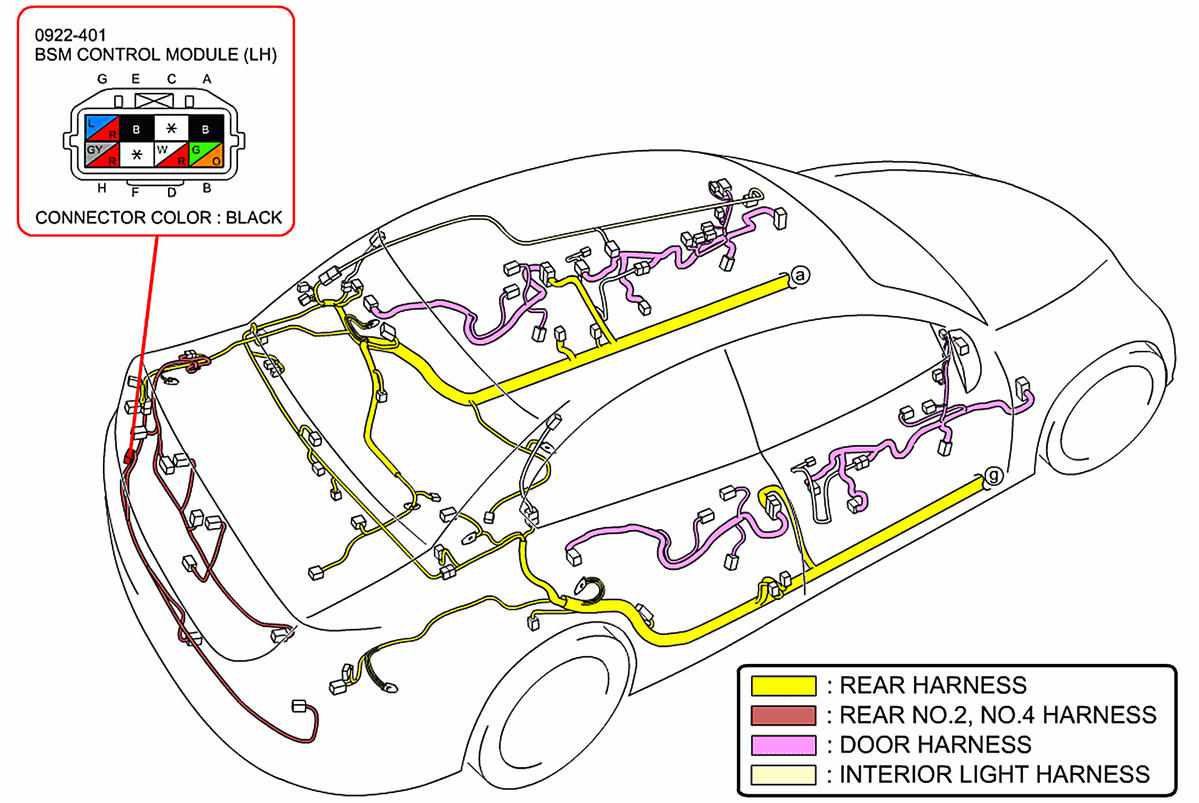

| BSM Control Module (Left) | Left rear of trunk. See Figure. |

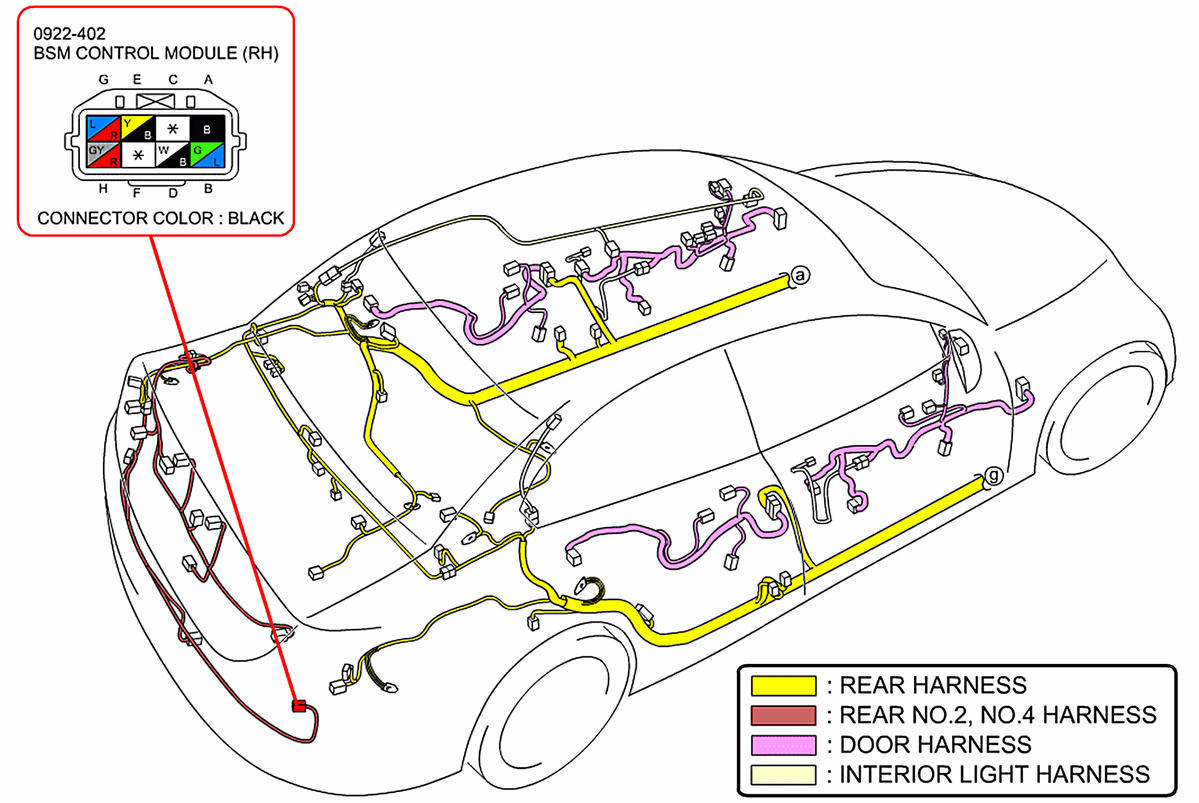

| BSM Control Module (Right) | Right rear of trunk. See Figure. |

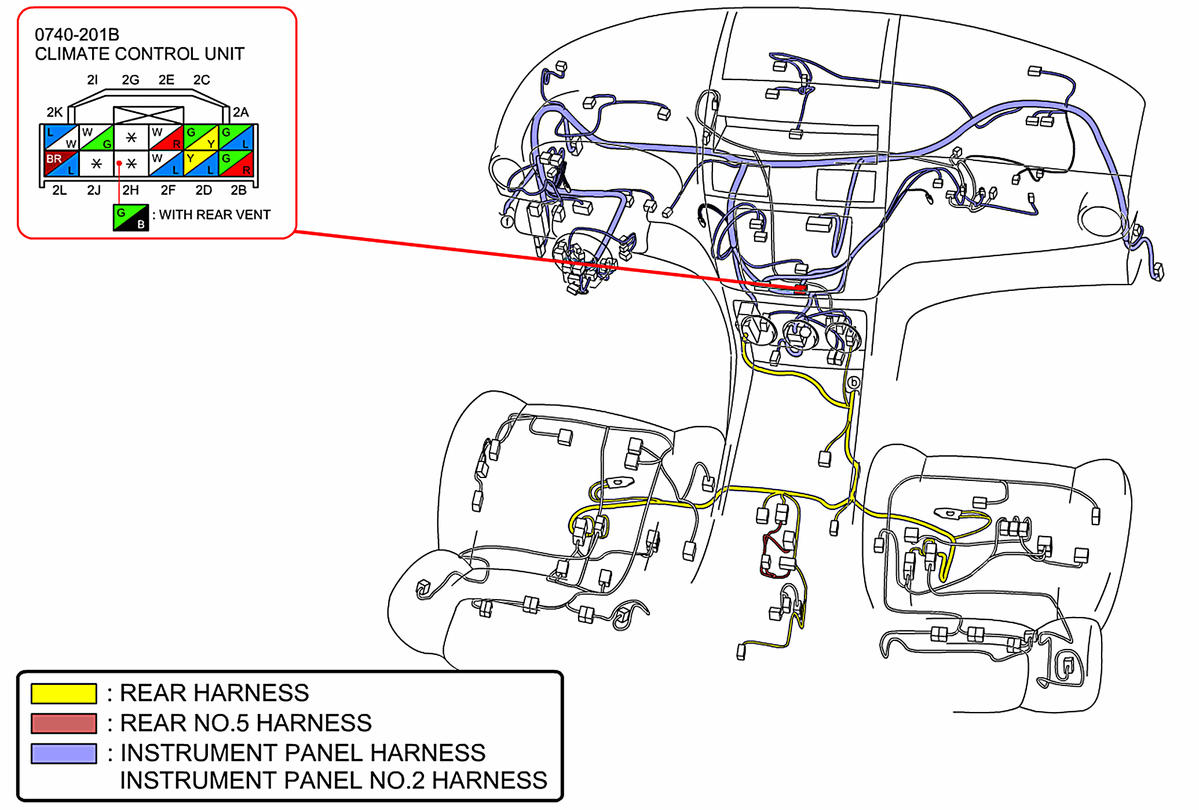

| Climate Control Module | Lower center of dash. See Figure. |

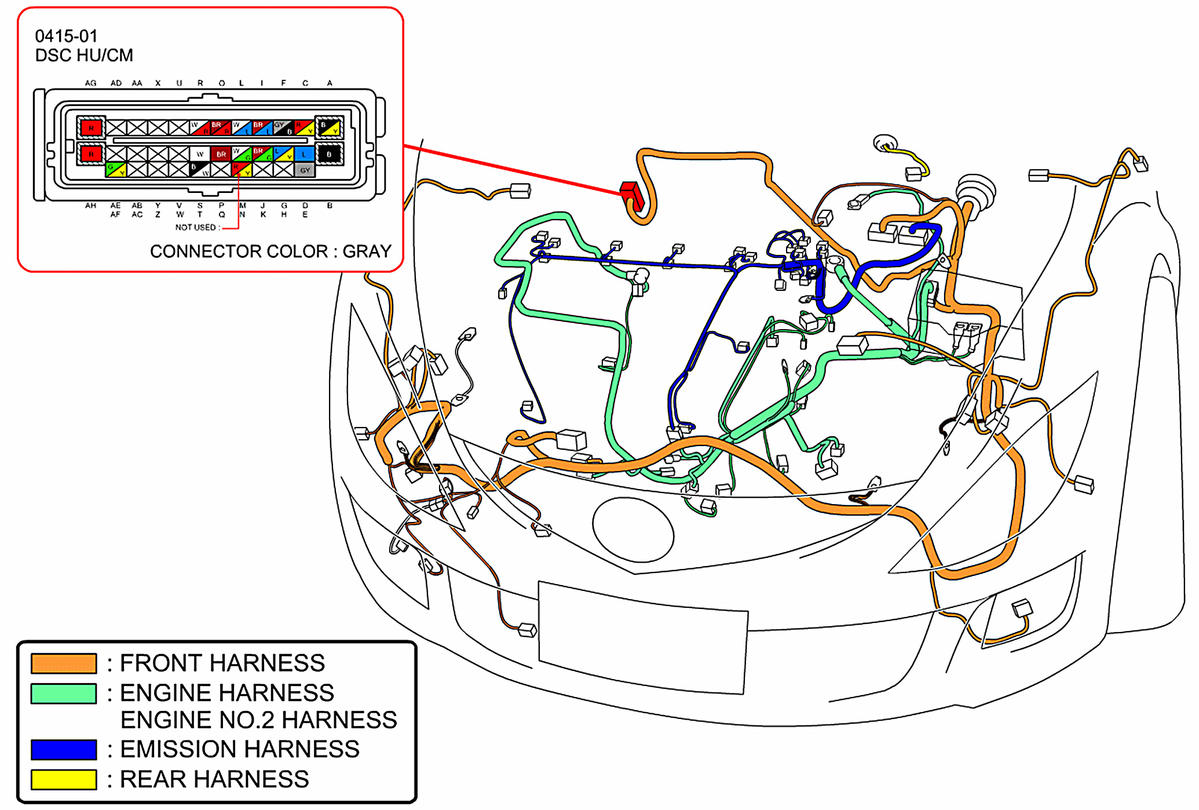

| DSC HU/CM | Right rear of engine compartment. See Figure. |

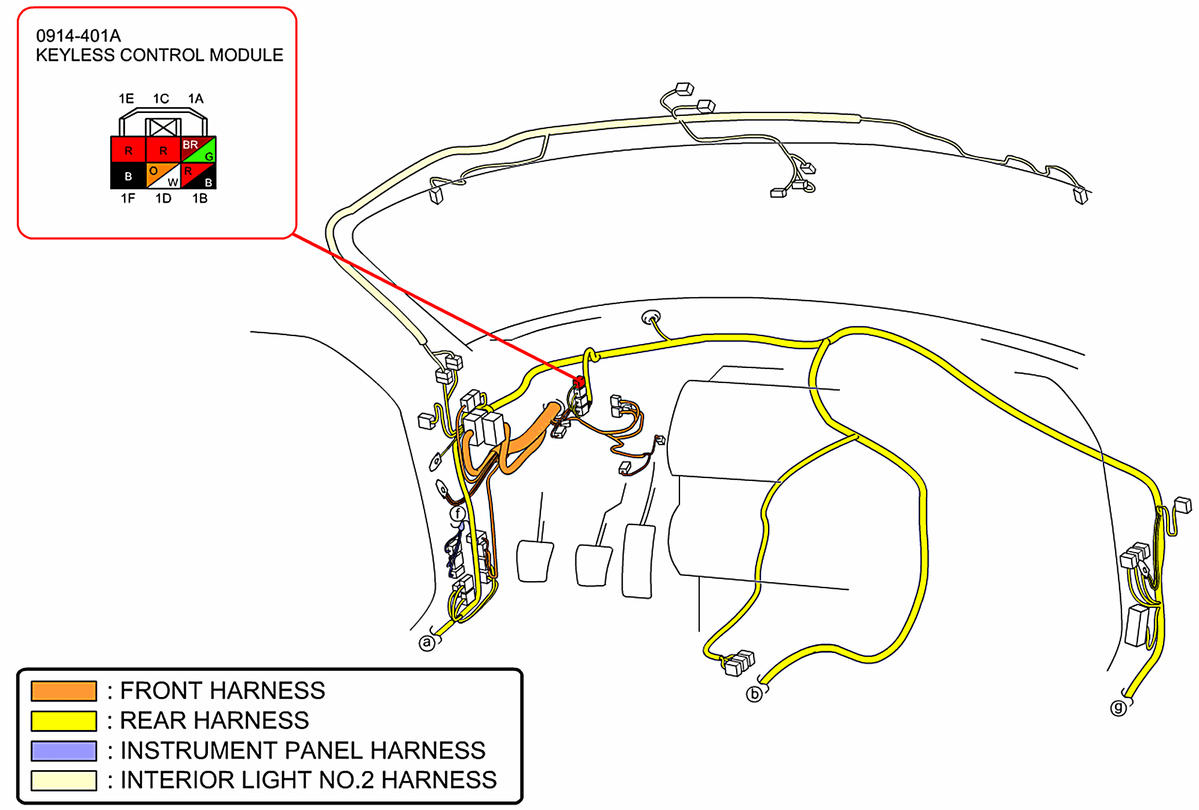

| Keyless Control Module | Behind left side of dash. See Figure. |

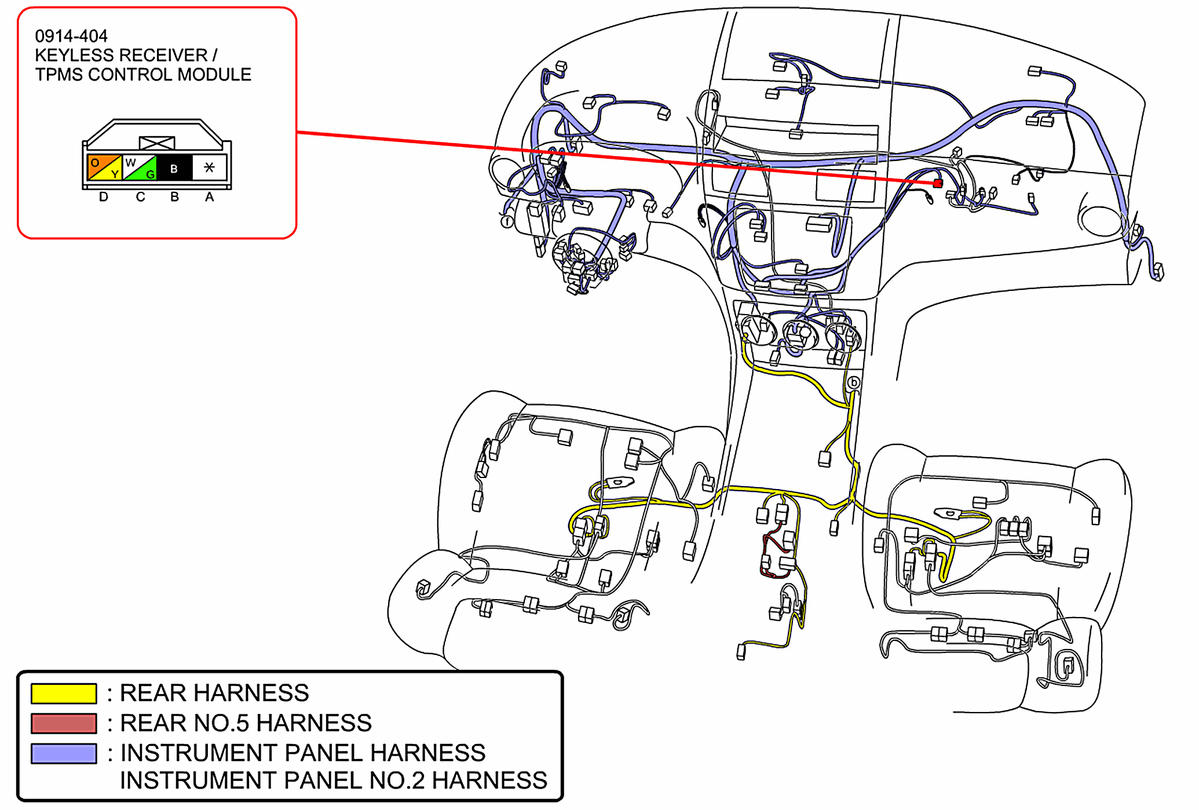

| Keyless Receiver/TPMS Control Module | Behind right side of dash. See Figure. |

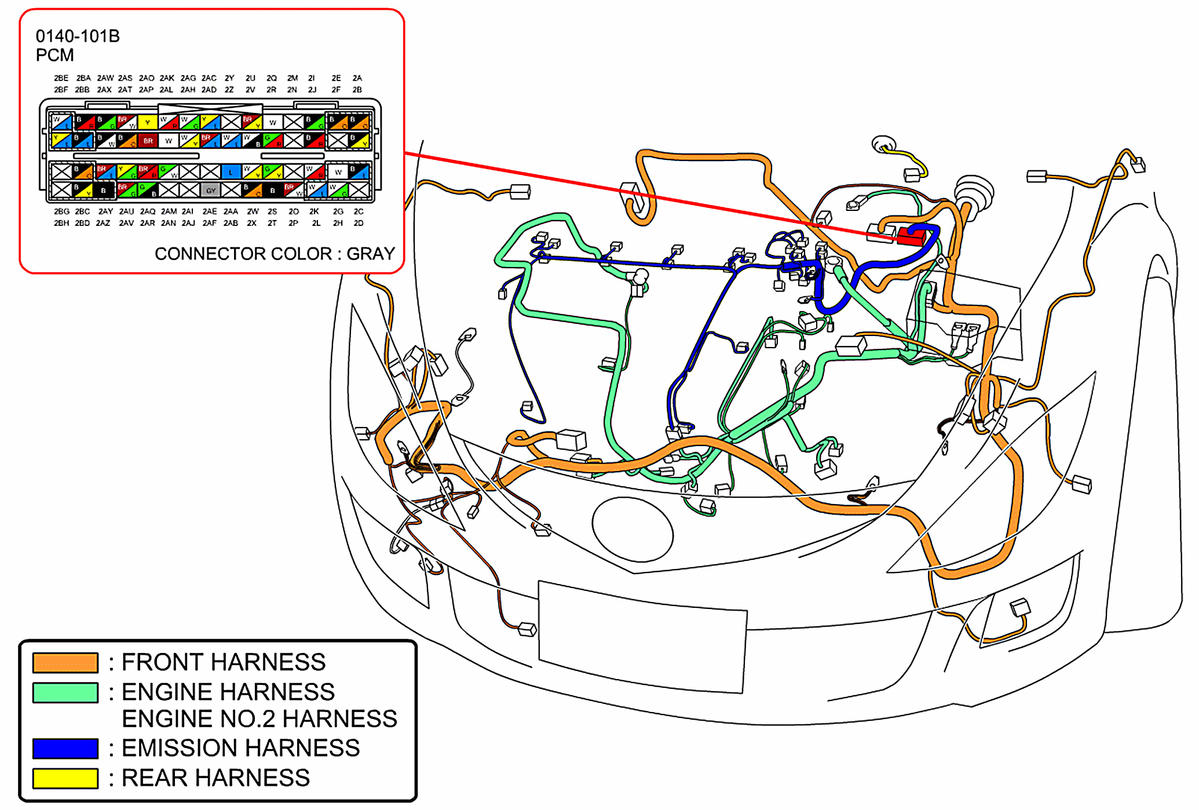

| PCM (2.5L) | Left rear of engine compartment. See Figure. |

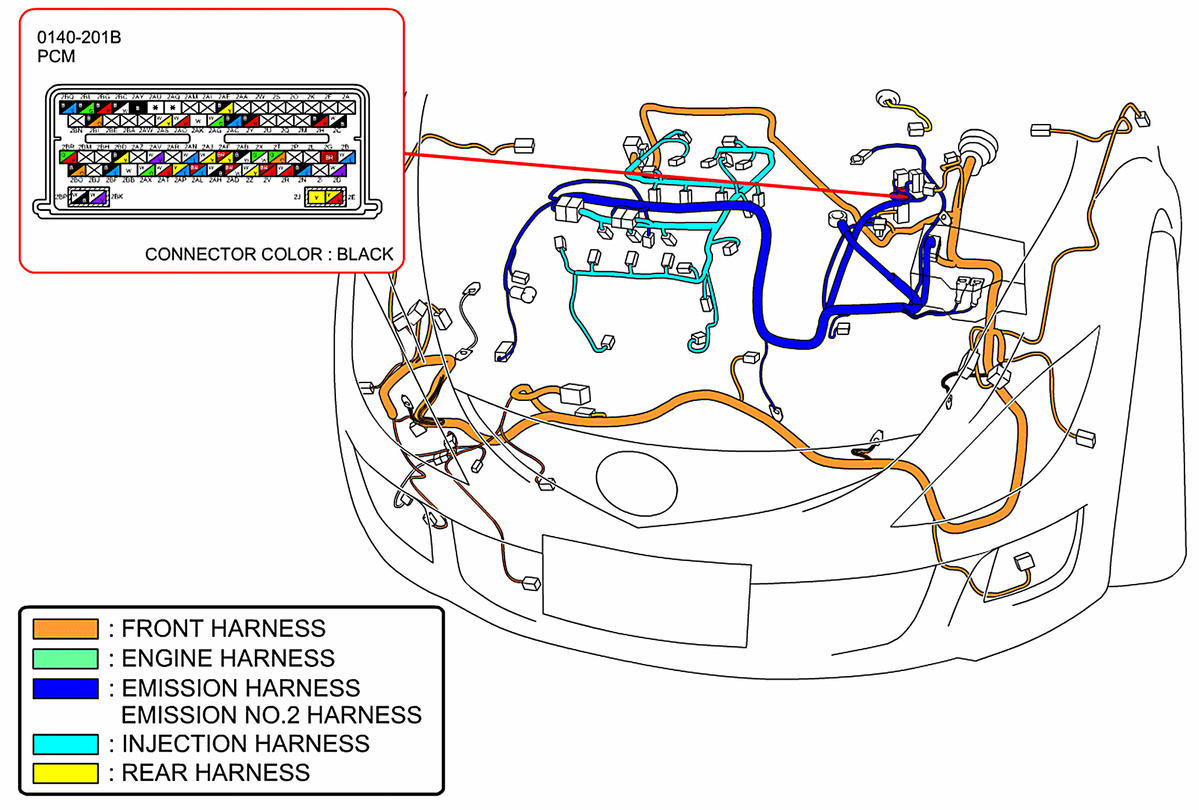

| PCM (3.7L) | Left rear of engine compartment. See Figure. |

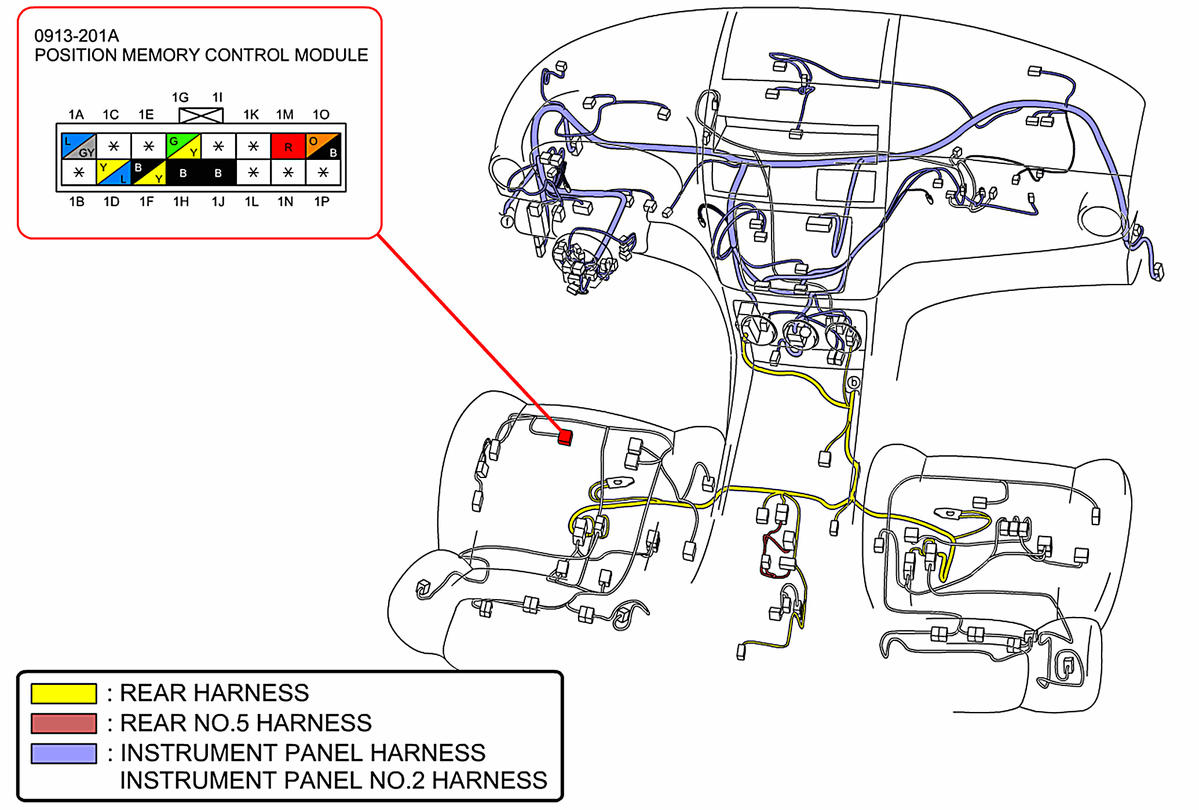

| Position Memory Control Module | Under driver's seat. See Figure. |

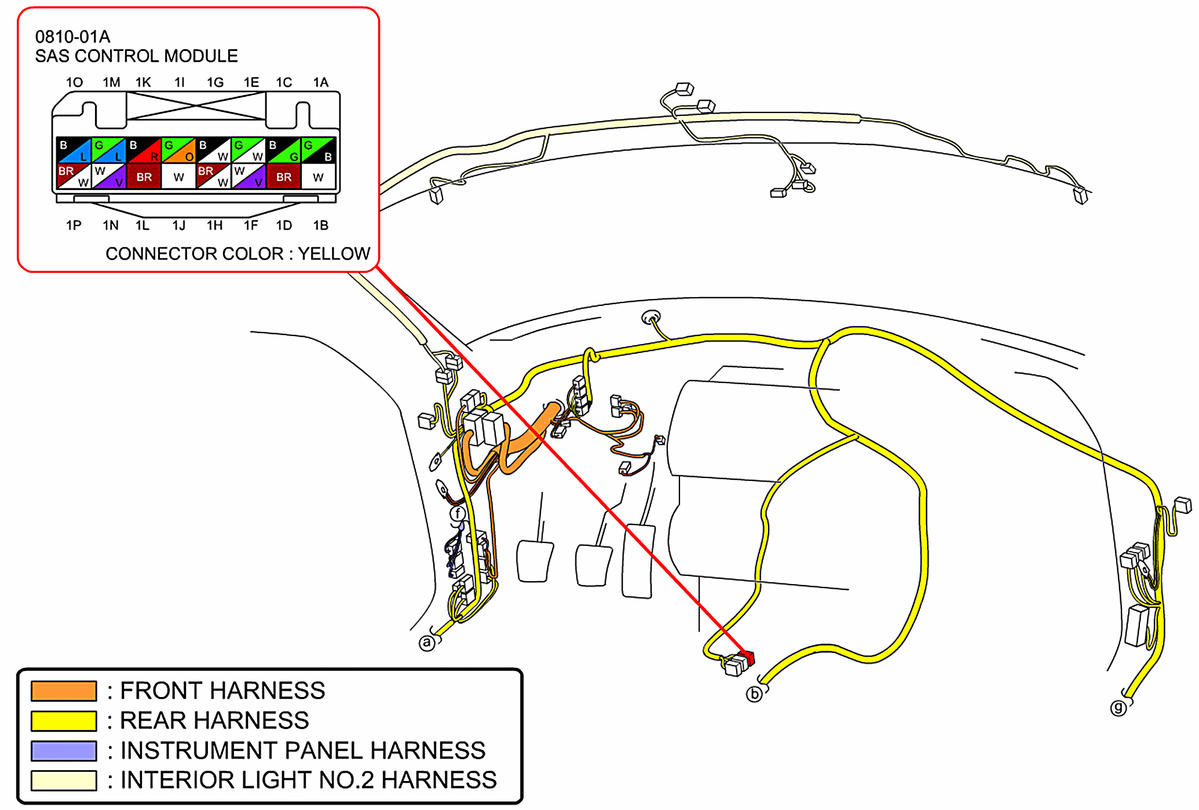

| SAS Control Module | Under front of center console. See Figure. |
| Seat Weight Sensor Control Module | Under front passenger's seat. |

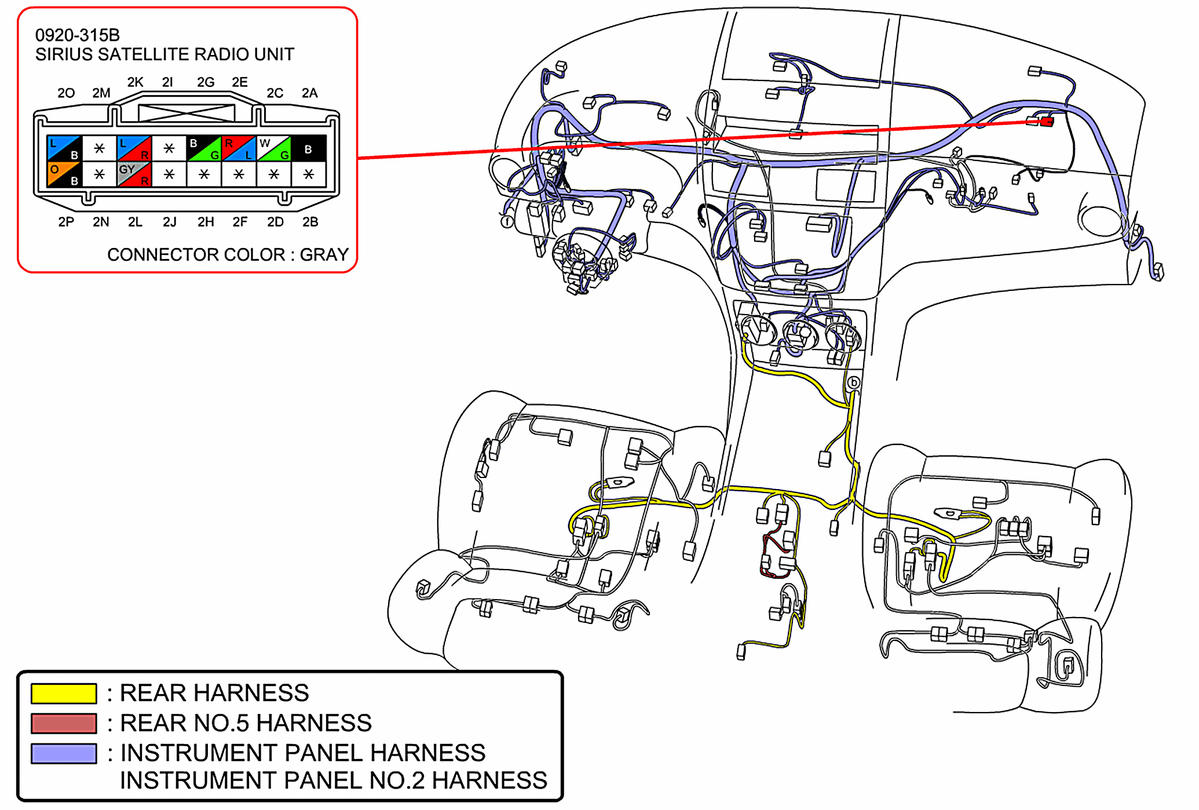

| Sirius Satellite Radio Unit | Right side of dash. See Figure. |

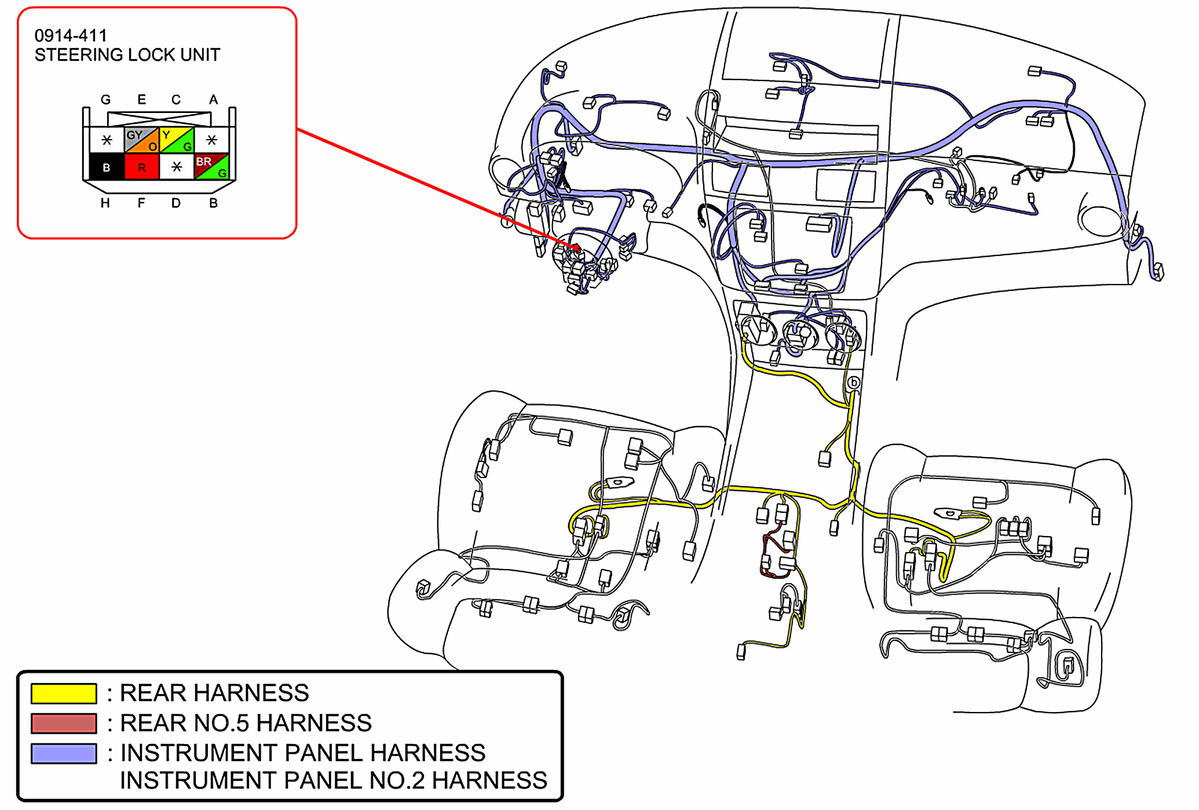

| Steering Lock Unit | On steering column. See Figure. |

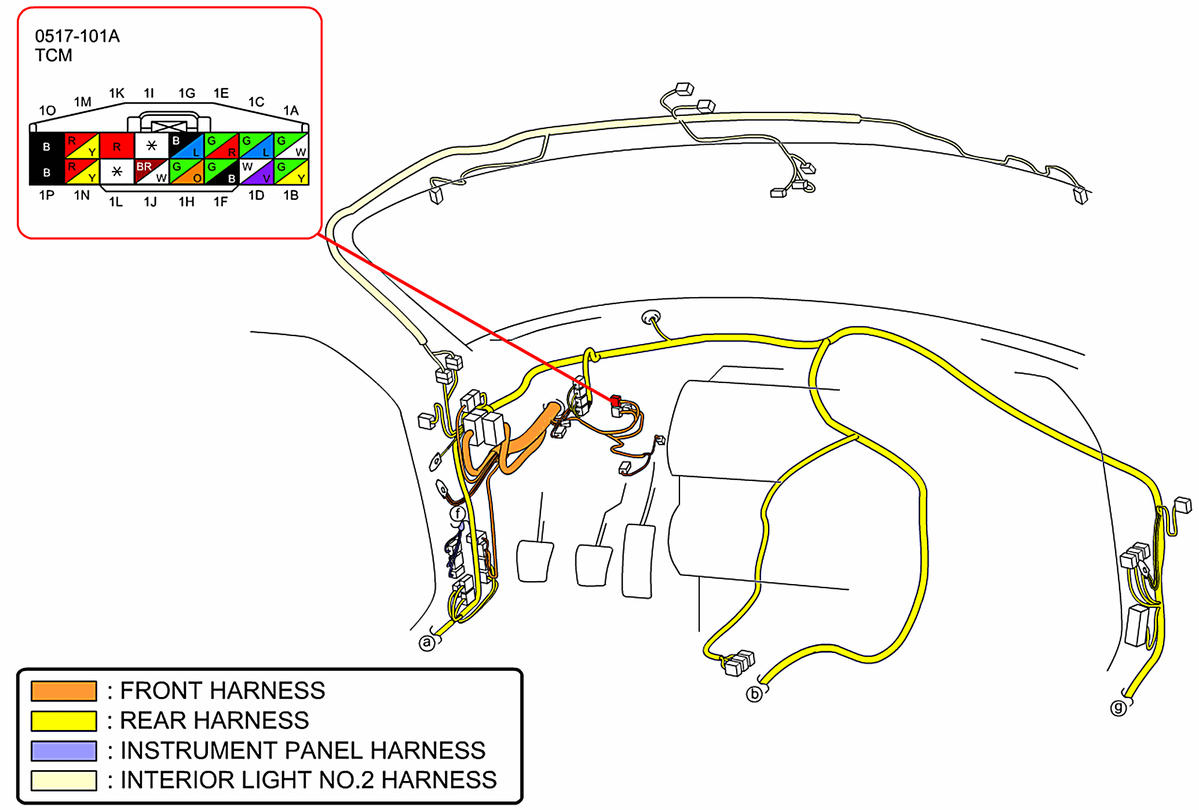

| TCM (2.5L) | Lower left side of dash. See Figure. |

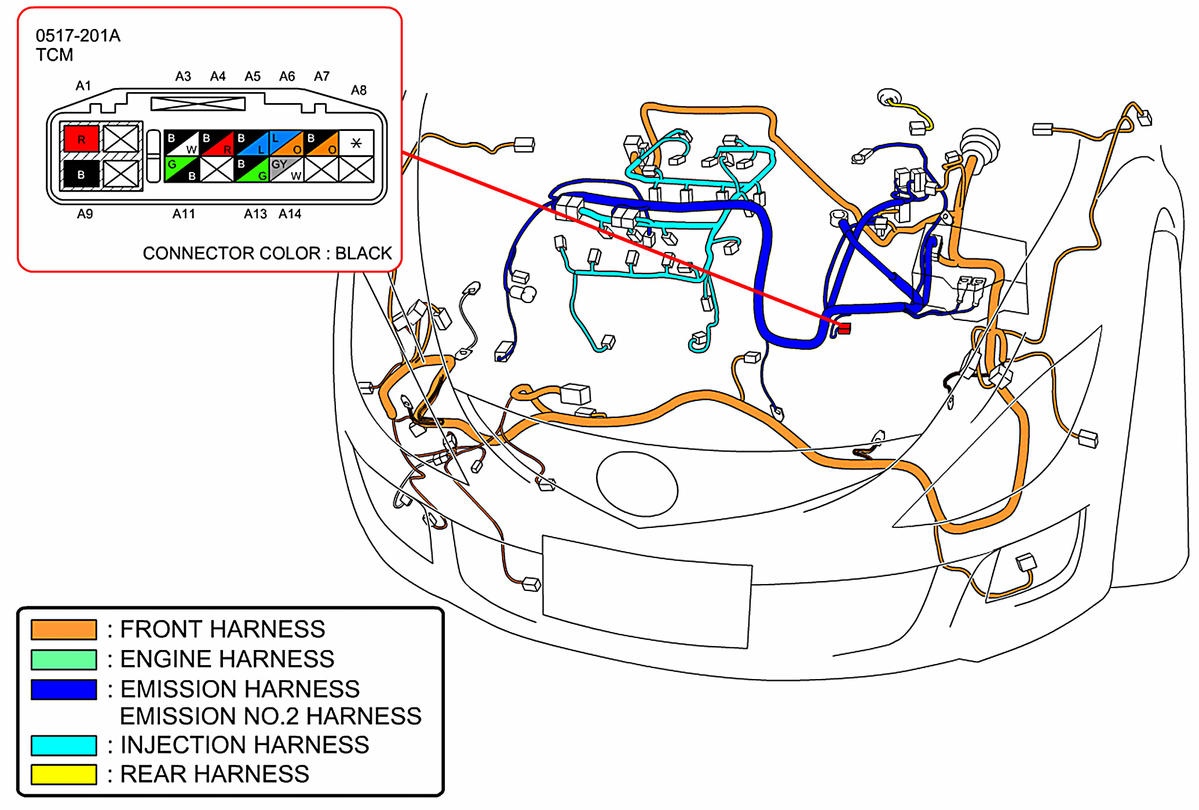

| TCM (3.7L) | Rear of engine. See Figure. |
