DSC Off Switch Inspection

  1. Remove the DSC OFF switch. (See DSC OFF SWITCH REMOVAL/INSTALLATION .)
  2. Verify that the continuity between the DSC OFF switch terminals is as indicated in the table.
    • If not as indicated in the table, replace the DSC OFF switch.

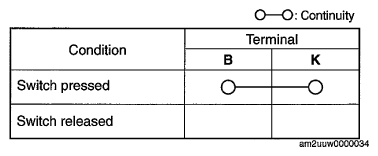

    Fig 1: Identifying DSC OFF Switch Terminals Continuity Chart
    G06941106Courtesy of MAZDA MOTORS CORP.
  3. Apply battery voltage to DSC OFF switch terminal E, and connect terminal A to ground.
  4. Verify that the LED illuminates.
    • If there is any malfunction, replace the DSC OFF switch.

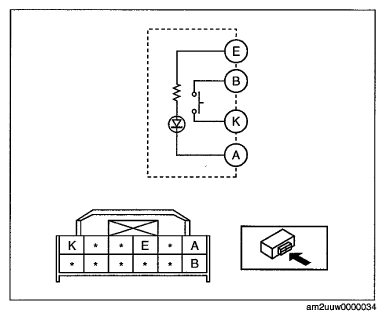

    Fig 2: Identifying DSC OFF Switch Connector Terminals
    G06941107Courtesy of MAZDA MOTORS CORP.
