Front Power Window Regulator Removal/Installation

  1. Perform the front door glass preparation. (Refer to FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Power window main switch (driver-side) (Refer to POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    2. Power window subswitch (passenger-side) (Refer to POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    3. Front door trim (Refer to FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    4. Front door speaker (Refer to FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    5. Front door glass (Refer to FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    6. Front power window motor (Refer to FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
    7. Front door module panel (Refer to FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
  4. Remove the nuts.

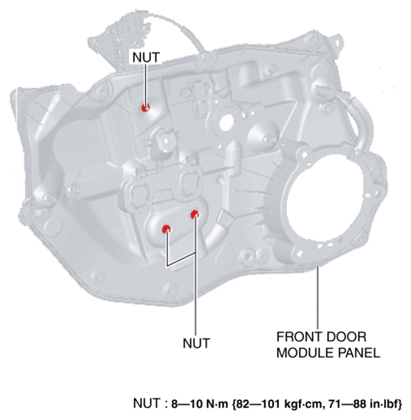

    Fig 1: Identifying Front Door Module Panel And Nuts With Torque Specification
    G10914139Courtesy of MAZDA MOTORS CORP.
  5. While supporting the drum housing and moving the clip tabs in the direction of arrows (1) shown in the figure, move the clip in the direction of arrow (2) and remove the front power window regulator.

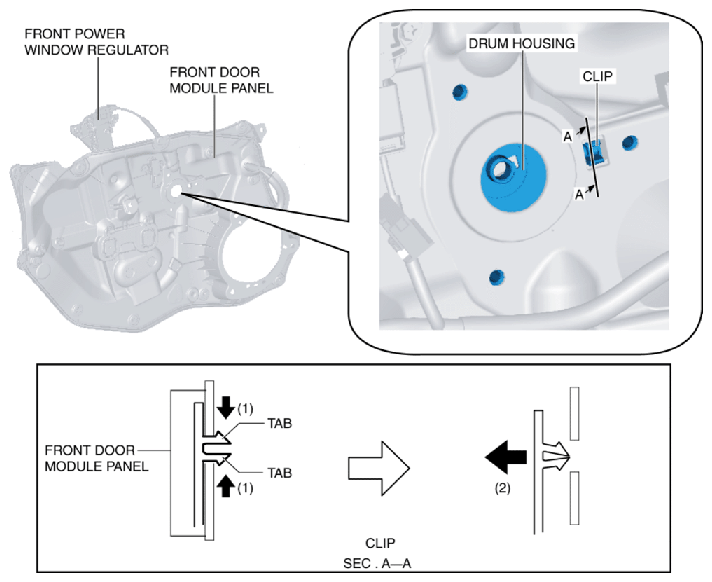

    Fig 2: Removing Front Power Window Regulator Clip Tabs
    G10914140Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
