Windshield Installation

WARNING:
  • Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.
CAUTION:
  • If a door is opened or closed when all the window glass is closed, the resulting change in air pressure could cause the sealant to crack preventing the proper installation of the windshield. Keep the door glass opened until the windshield installation is completed.
  1. Remove the sealant along the perimeter of the glass using a utility knife. (Reusing windshield)
  2. Clean and degrease an approx. 50 mm {2.0 in} wide strip along the perimeter of the windshield.
  3. Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.
  4. Align the alignment marks made before removal and install the pin to the windshield referring to the figure. (Reusing windshield)

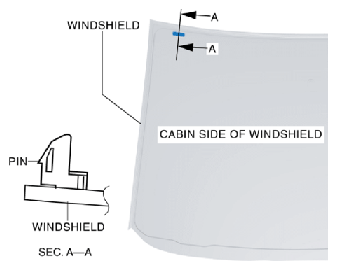

    Fig 1: Identifying Alignment Marks Windshield
    G10914109Courtesy of MAZDA MOTORS CORP.
  5. Install the windshield molding.

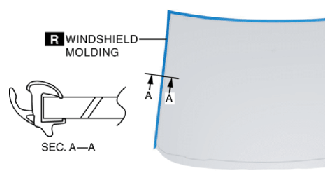

    Fig 2: Identifying Windshield Molding Installation Position
    G10914110Courtesy of MAZDA MOTORS CORP.
  6. Apply primer to the area of the glass shown in the figure.
    • Follow the primer product instructions for the drying time.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
    NOTE:
    • Apply primer to the hollowed marks in the ceramic coating.

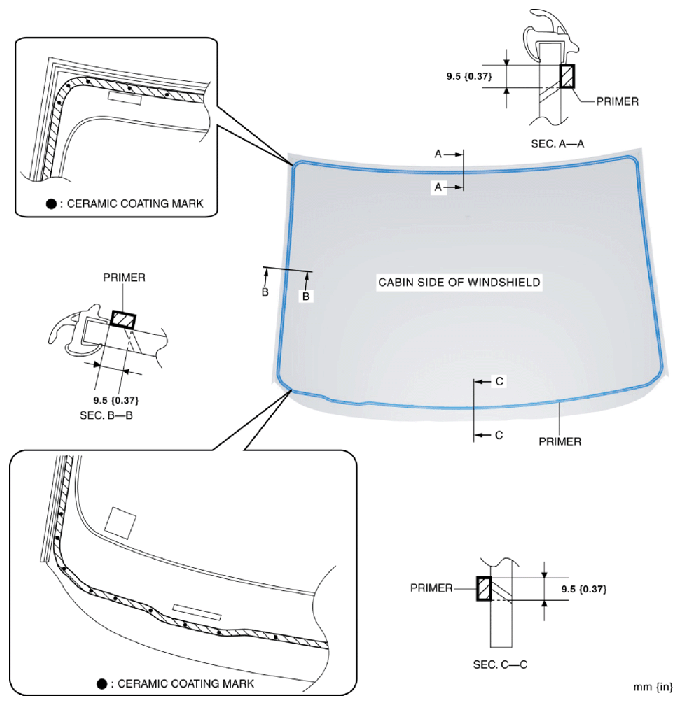

    Fig 3: Identifying Primer Applying Dimension On Glass
    G10914111Courtesy of MAZDA MOTORS CORP.
  7. Cut away the old sealant using a utility knife so that 1-2 mm {0.04-0.07 in}  thickness of sealant remains along the perimeter of the frame.
    Fig 4: Cutting Old Sealant Using Utility Knife
    G10914112Courtesy of MAZDA MOTORS CORP.
  8. Clean and degrease along the perimeter of the bonding area on the body.
  9. Apply primer to the area of the body shown in the figure.
    • Follow the primer product instructions for the drying time.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

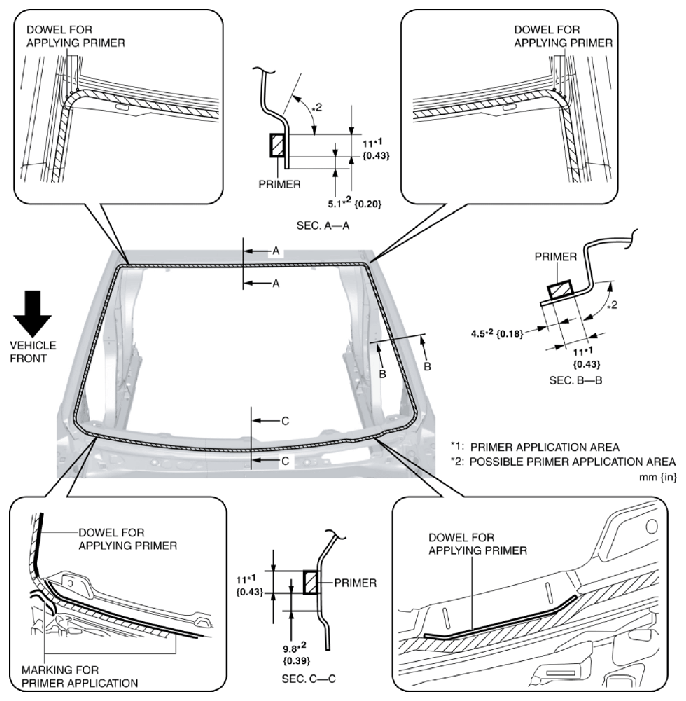

    Fig 5: Identifying Primer Applying Dimension To Body
    G10914113Courtesy of MAZDA MOTORS CORP.
  10. Apply sealant to the area of the glass surface as shown in the figure.

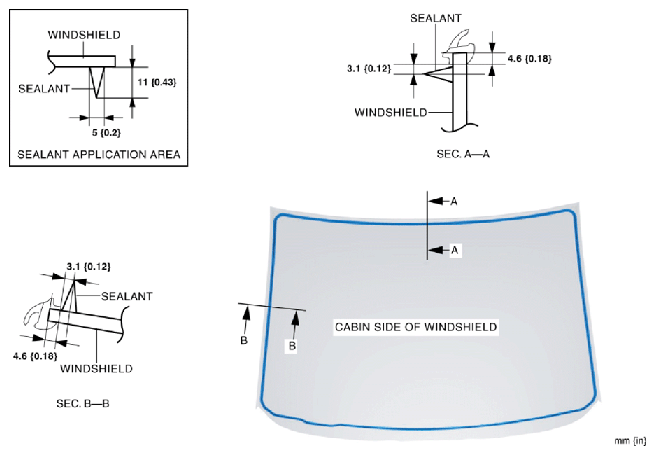

    Fig 6: Identifying Sealant Applying Dimension To Area Of Glass Surface
    G10914114Courtesy of MAZDA MOTORS CORP.
  11. Insert the positioning pins to the body and install the windshield.
  12. Verify that the clearance between the A-pillar and the roof is within the range shown in the figure, and press along the perimeter of the glass.

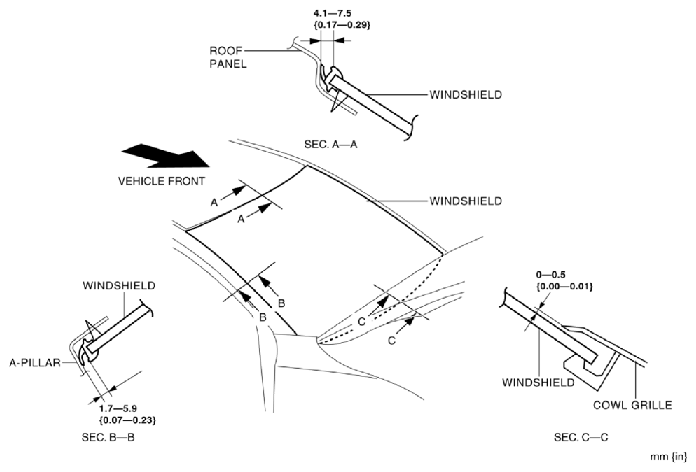

    Fig 7: Checking Clearance Between A-Pillar And Roof
    G10914115Courtesy of MAZDA MOTORS CORP.
  13. Install the following parts:
    1. Forward sensing camera (FSC) Short-cord (with forward sensing camera (FSC)) (Refer to FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION .)
    2. Rearview mirror (Refer to REARVIEW MIRROR REMOVAL/INSTALLATION .)
    3. Forward sensing camera (FSC) clip (with forward sensing camera (FSC)) (Refer to FORWARD SENSING CAMERA (FSC) CLIP REMOVAL/INSTALLATION .)
    4. Forward sensing camera (FSC) cover (with forward sensing camera (FSC)) (Refer to FORWARD SENSING CAMERA (FSC) COVER REMOVAL/INSTALLATION .)
    5. Laser sensor (with smart city brake support (SCBS)) (Refer to LASER SENSOR REMOVAL/INSTALLATION .)
    6. Rain sensor (with auto light/wiper system) (Refer to RAIN SENSOR REMOVAL/INSTALLATION .)
    7. Forward sensing camera (FSC) (with forward sensing camera (FSC)) (Refer to FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .)
    8. Sensor cover (with smart city brake support (SCBS)) (Refer to SENSOR COVER REMOVAL/INSTALLATION .)
    9. Assist handle (Refer to ASSIST HANDLE REMOVAL/INSTALLATION .)
    10. Front map light (Refer to FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    11. Sunvisor (Refer to SUNVISOR REMOVAL/INSTALLATION .)
    12. A-pillar trim (Refer to A-PILLAR TRIM REMOVAL/INSTALLATION .)
    13. Side cowl grille (Refer to SIDE COWL GRILLE REMOVAL/INSTALLATION .)
    14. Front fender molding (Refer to FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
    15. Cowl grille (Refer to COWL GRILLE REMOVAL/INSTALLATION .)
    16. Windshield wiper arm and blade (Refer to WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  14. Connect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  15. Allow the sealant to harden completely.
    NOTE:
    • Follow the sealant product instructions for the drying time.
  16. Perform the forward sensing camera (FSC) aiming in the following cases. (Refer to FORWARD SENSING CAMERA (FSC) AIMING .)
    • Windshield is replaced
    • Windshield is reused and forward sensing camera (FSC) or forward sensing camera (FSC) clips are replaced
  17. If the rain sensor is replaced, perform the sensitivity setting procedure for the auto lights. (Refer to CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
