Parking Sensor Control Module Inspection: Notes
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the glove compartment. (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
- Remove the parking sensor control module. (Refer to PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION .)
- Connect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

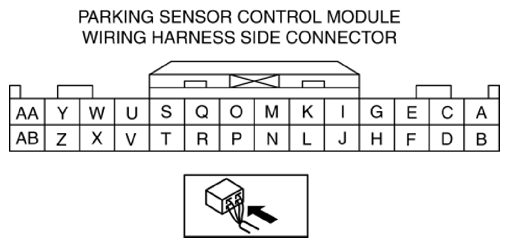

- Verify that the voltages of each of the terminals are as indicated in the terminal voltage table (reference).
- If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.
- If the system does not operate normally even though the inspection items are normal, replace the parking sensor control module.
Terminal Voltage Table (Reference)
- If the system does not operate normally even though the inspection items are normal, replace the parking sensor control module.
Terminal Signal name Connected to Test condition Voltage (V) Inspection item A Ultrasonic sensor Ultrasonic sensor (LH) Wave pattern (Refer to INSPECTION USING AN OSCILLOSCOPE (REFERENCE) .) - Ultrasonic sensor (LH)
- Related wiring harness
B Ultrasonic sensor GND Ultrasonic sensor (LH) Under any condition 1.0 or less - Ultrasonic sensor (LH)
- Related wiring harness
C Ultrasonic sensor Ultrasonic sensor (RH) Wave pattern (Refer to INSPECTION USING AN OSCILLOSCOPE (REFERENCE) .) - Ultrasonic sensor (RH)
- Related wiring harness
D Ultrasonic sensor GND Ultrasonic sensor (RH) Under any condition 1.0 or less - Ultrasonic sensor (RH)
- Related wiring harness
E Ultrasonic sensor Corner ultrasonic sensor (LH) Wave pattern (Refer to INSPECTION USING AN OSCILLOSCOPE (REFERENCE) .) - Corner ultrasonic sensor (LH)
- Related wiring harness
F Corner ultrasonic sensor GND Corner ultrasonic sensor Under any condition 1.0 or less - Corner ultrasonic sensor
- Related wiring harness
G Ultrasonic sensor Corner ultrasonic sensor (RH) Wave pattern (Refer to INSPECTION USING AN OSCILLOSCOPE (REFERENCE) .) - Corner ultrasonic sensor (RH)
- Related wiring harness
H - - - - - I - - - - - J - - - - - K - - - - - L - - - - - M - - - - - N - - - - - O - - - - - P - - - - - Q GND Body ground Under any condition 1.0 or less - Body ground
- Related wiring harness
R - - - - - S - - - - - T - - - - - U IG1 IG1 relay Ignition switched ON (engine off or on) B+ - C/U IG1 15A fuse
- IG1 relay
- Related wiring harness
Ignition switched off or ACC 1.0 or less V Parking sensor switch Cluster switch Ignition switched ON (engine off or on) Parking sensor switch ON B+ - Cluster switch
- Related wiring harnesses
Parking sensor switch OFF 1.0 or less W Parking sensor buzzer Parking sensor buzzer Ignition switched ON (engine off or on) B+ - Parking sensor buzzer
- Related wiring harness
Ignition switched off or ACC 1.0 or less X Parking sensor buzzer GND Parking sensor buzzer Ignition switched ON (engine off or on) Buzzer sounding 1.0 or less - Parking sensor buzzer
- Related wiring harness
Buzzer stopped B+ Y - - - - - Z - - - - - AA CAN_H CAN system related module Terminal used for communication therefore determination based on terminal voltage is not possible. AB CAN_L CAN system related module Terminal used for communication therefore determination based on terminal voltage is not possible. - If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.
