Transfer Location Index

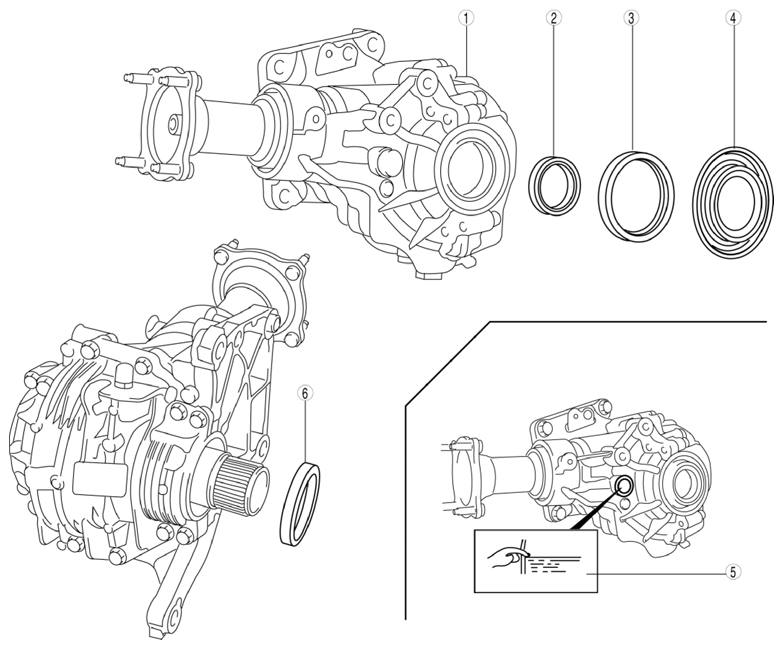

Fig 1: Transfer Related Components (GW6AX-EL)

Courtesy of MACK TRUCKS, INC.

COMPONENT DESCRIPTION

1	Transfer (See TRANSFER REMOVAL/INSTALLATION [GW6AX-EL] .)
2	Transfer oil seal (RH) No. 3 (See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL] .)
3	Transfer oil seal (RH) No. 2 (See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL] .)
4	Transfer oil seal (RH) No. 1 (See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL] .)
5	Transfer oil (See TRANSFER OIL INSPECTION [GW6AX-EL] .) (See TRANSFER OIL REPLACEMENT [GW6AX-EL] .)
6	Transfer oil seal (LH) (See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL] .)
