Vacuum Control Unit: Removal

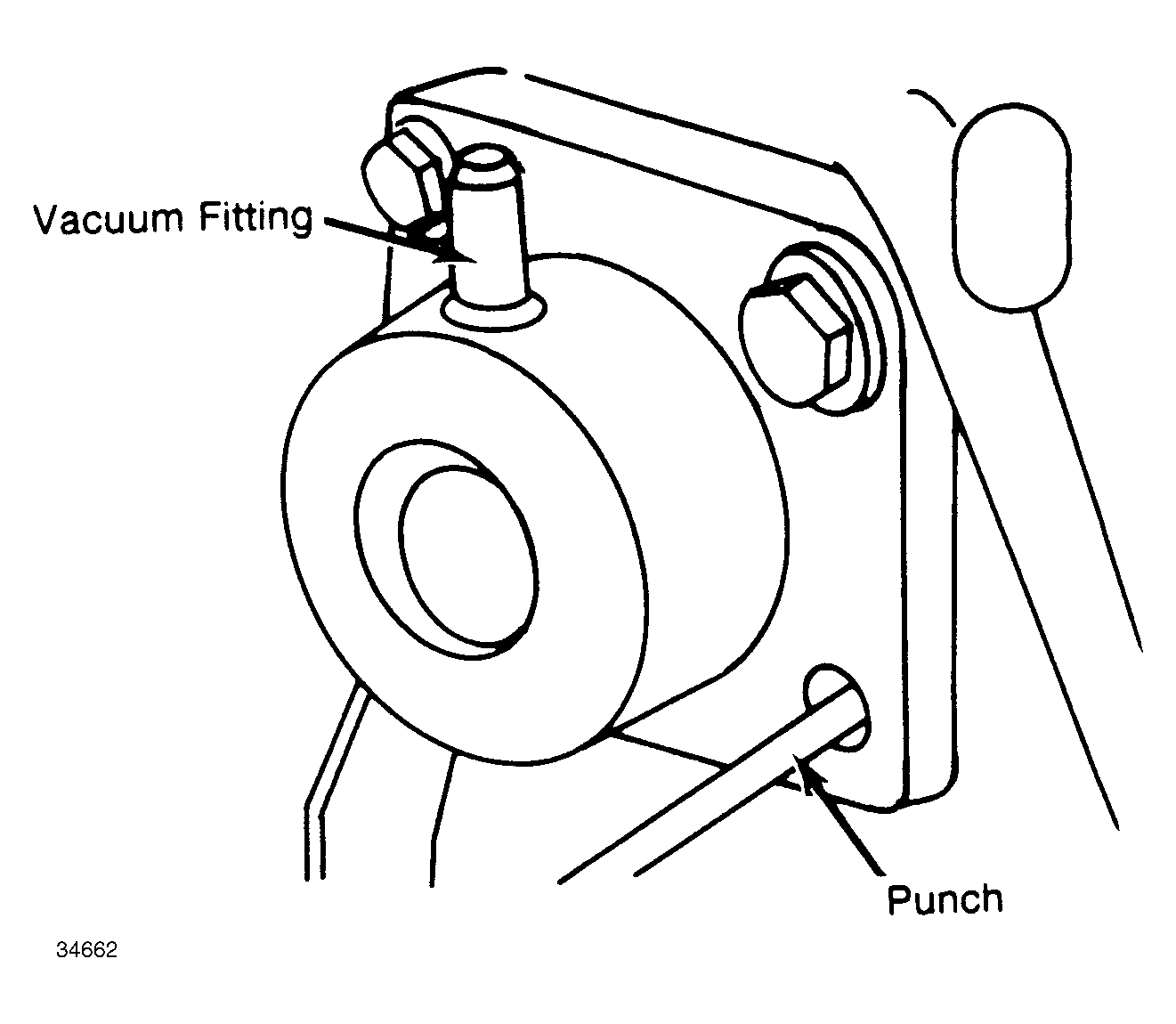

- Unscrew lower right-hand mounting screw from vacuum control unit. See Fig 1 .
- Depress "stop" lever on cylinder head cover. Measure position of main rack by inserting punch into screw bore until it touches main rack. Mark this position on punch.
- Unscrew remaining 3 mounting screws and remove control unit.
