Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/C Control Unit | On right side of brake master cylinder. | |
| A/C Blower Speed Control Unit | On center of blower housing. | |
| A/C Control Unit | On right side of blower housing. See Figure . | |
| A/C Compressor Cut-Out Unit | ||

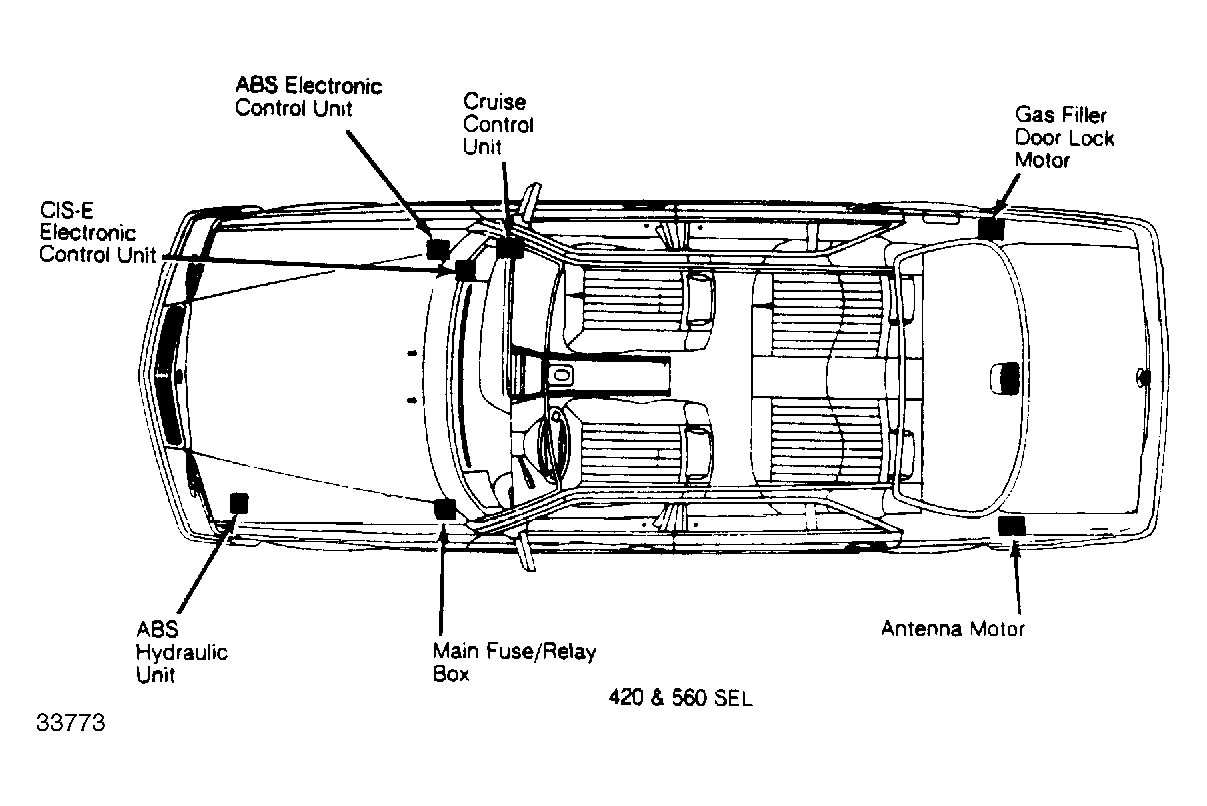

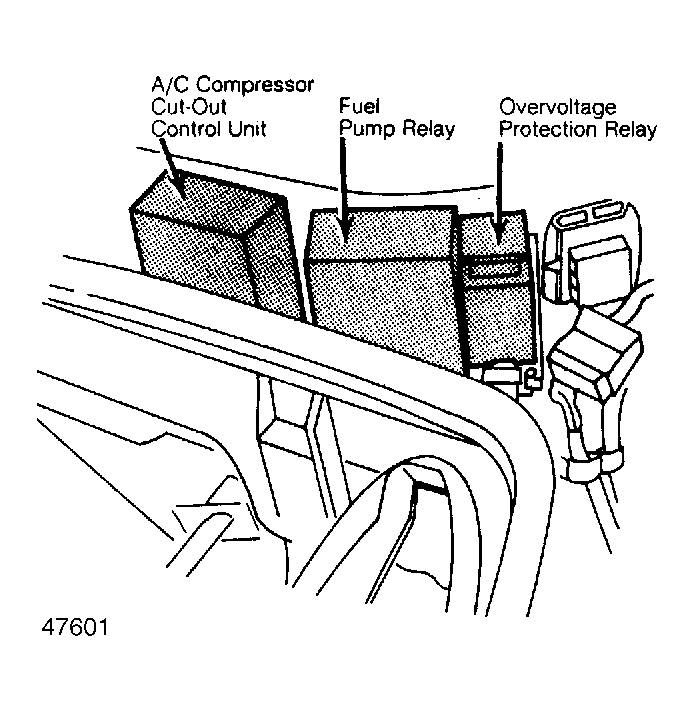

| 420 & 560 SEL | Above right side of passenger's footwell. See Figure . | |
| 560 SEC | On left rear side of engine compartment. See Figure . | |
| A/C Temperature Control Unit | On right side of blower housing. | |
| ABS Electronic Control Unit | On right side of engine compartment, between cowl and bulkhead. See Figure . | |
| Anti-Theft Control Unit | On right side of engine compartment. See Figure . | |
| CIS-E Electronic Control Unit | Above right side passenger's footwell. See Figure & Figure . | |
| Cruise Control Unit | Above right side of passenger's footwell. See Figure . | |
| Cruise Control Amplifier | Above right side of driver's footwell. | |
| Electronic Illumination Control Unit | Under left side of dash. | |
| Idle Speed Control Unit | Under passenger's kick panel, next to CIS-E control unit. | |
| Ignition Switching Control Unit | On left front inner wheelwell. | |
| Key/Light Warning Module | Above left side of driver's footwell. | |
| Oxygen Sensor Control Unit | On right side of passenger's footwell. | |
| Seat Adjustment Control Unit | Under both front seats. | |
| Seat Back Warning Module | On left side of driver's footwell. | |
| Seat Belt Modules | Behind rear seat side panels. | |

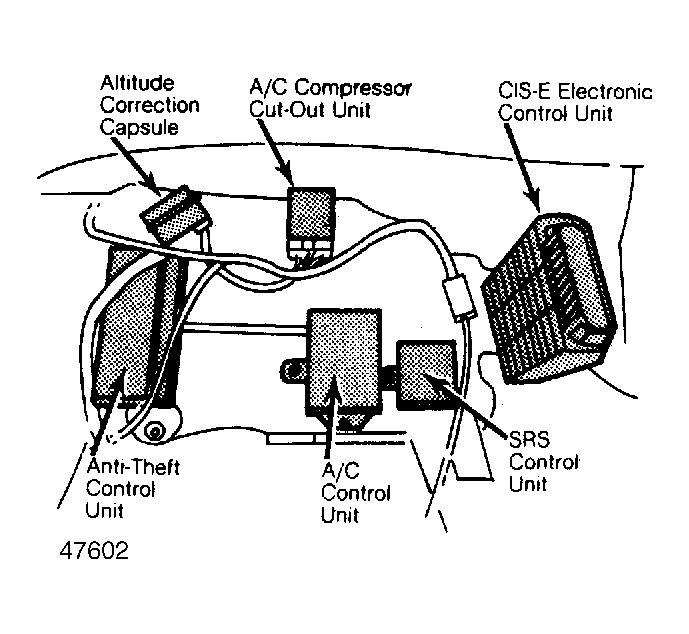

| SRS Control Unit | Inside of center console. See Figure . | |
| Transmission 1st Gear Control Unit | Under dash, above accelerator pedal. | |
