Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Control Unit | Built into control head switches. |
| A/C Blower Speed Control Unit | Behind glove box, farthest from firewall. |
| A/C Temperature Control Unit | Behind glove box, closest to firewall. |

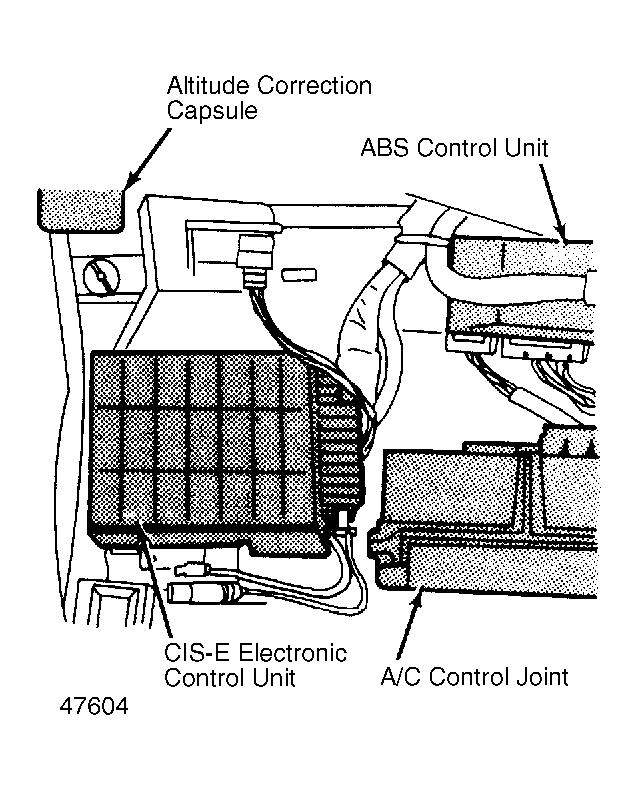

| ABS Control Unit | Behind right kick panel. See Figure . |
| CIS-E Electronic Control Unit | Under passenger's foot rest. See Figure . |
| Cruise Control Amplifier | Under dash, between parking brake and brake support. |

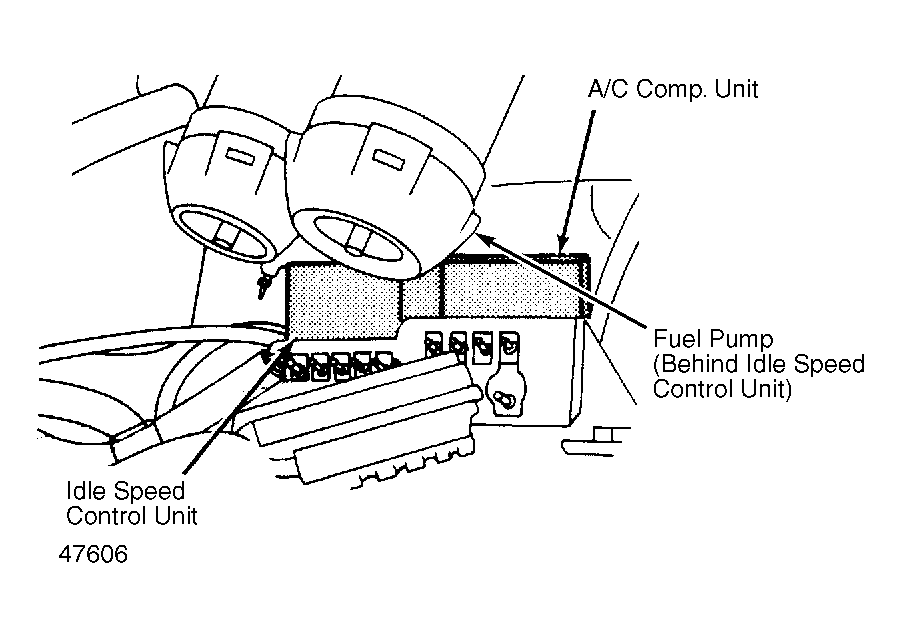

| Idle Speed Control Unit | At rear of engine compartment, between cowl and bulkhead. See Figure . |
| Ignition Control Module | Ahead of left front wheelwell. |
| Light Control Unit | In engine compartment, behind rear bulkhead. |
| Oxygen Sensor Control Unit | Under passenger's front kick panel. |
| Warning Module | To right of parking brake support. |
| Wiper Interval Control Unit | Behind instrument cluster. |
