Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/C Blower Speed Control Unit | Under right side of dash, behind glove box. | |
| A/C Compressor Control Unit | Under right side of dash, behind glove box. | |
| A/C Temperature Control Unit | Under right side of dash, behind glove box. | |
| ABS Control Unit | Under passenger's foot rest. See Figure . | |
| Anti-Theft Control Unit | Under right side of dash, behind glove box. | |
| Anti-Theft/Courtesy Light Warning Module | Under left side of dash, above steering column. | |

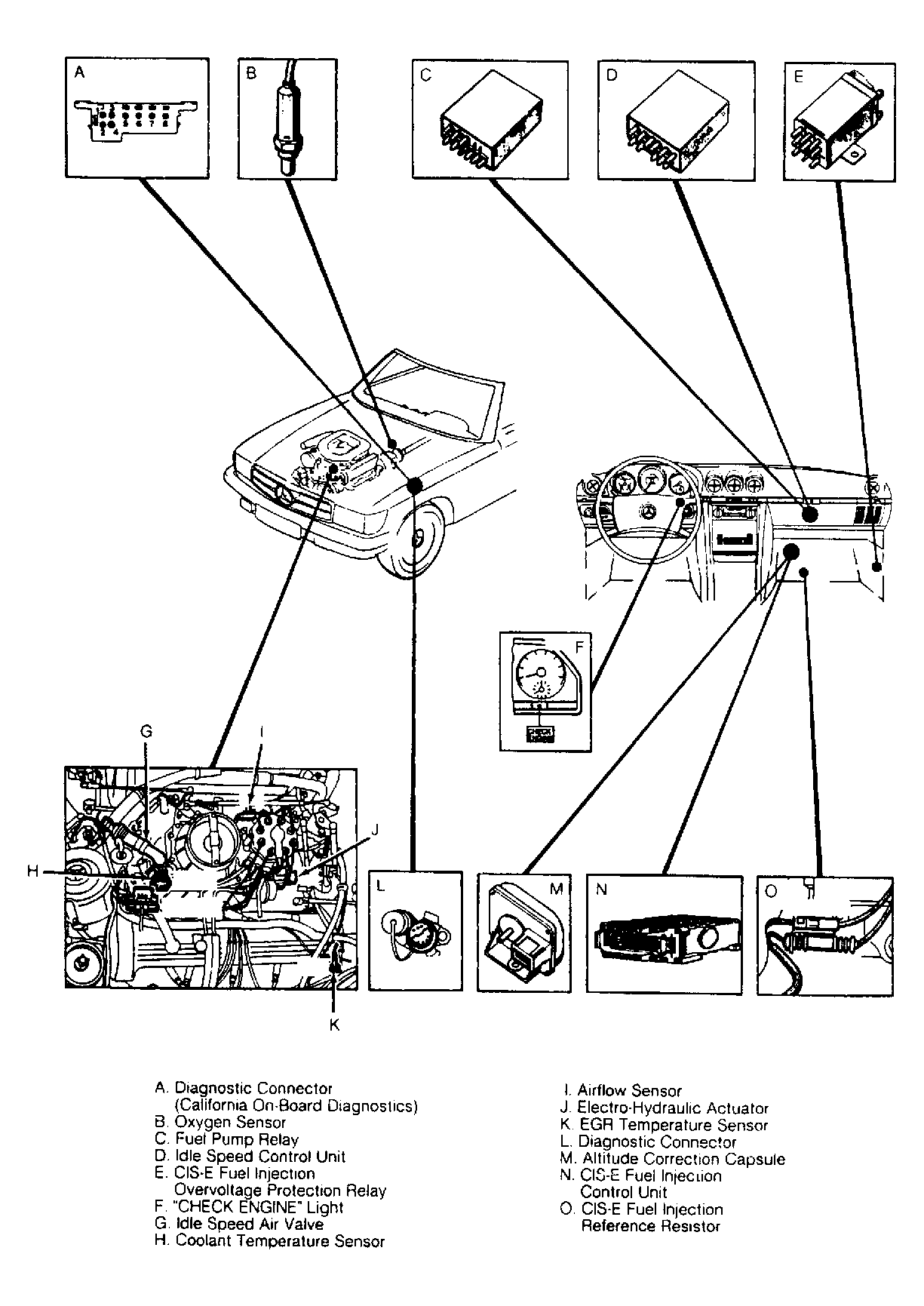

| CIS-E Fuel Injection Control Unit | ||
| Graphic 1 (See View "N") | Under passenger's foot rest. See Figure . | |
| Graphic 2 | Under passenger's foot rest. See Figure . | |
| Cruise Control Unit | Under dash, between parking brake and brake support. | |
| Exterior Light Monitoring Unit | Under passenger's foot rest. See Figure . | |
| Idle Speed Control Unit | ||
| Graphic 1 (See View "D") | Under right side of dash, behind glove box. See Figure . | |
| Graphic 2 | Under right side of dash, behind glove box. See Figure . | |
| Ignition Control Unit | On left front corner of engine compartment, behind headlights. | |
| Interval Wiper Control Unit | Under right side of dash, above steering column. | |

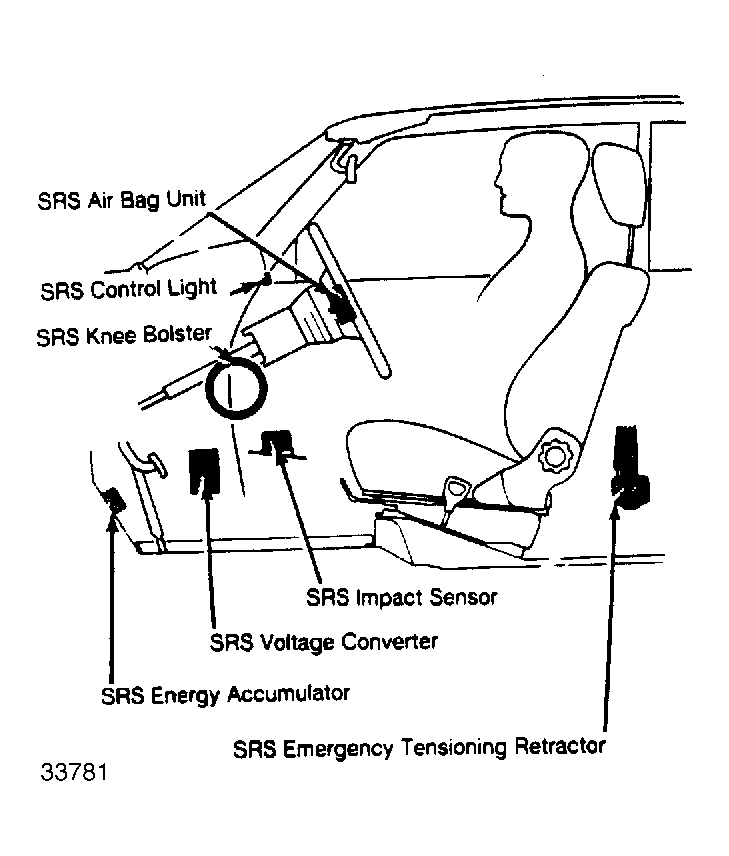

| SRS Control Unit/Sensor | Under center console, below dashboard. See Figure . | |
