Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Unit | At right rear of engine compartment. |
| ABS Hydraulic Unit | On front left side of engine compartment. |
| ASD Control Module | At right rear of engine compartment. |
| ASR Control Module | At right rear of engine compartment. |
| ATA Control Module | At front of luggage compartment. |
| BAS Control Module | Next to brake booster. |
| Cruise Control Unit | At right rear of engine compartment. |
| EA/CC/ISC Control Module | At right rear of engine compartment. |
| Electronic Ignition Switch Control Module | At right side of steering column. |

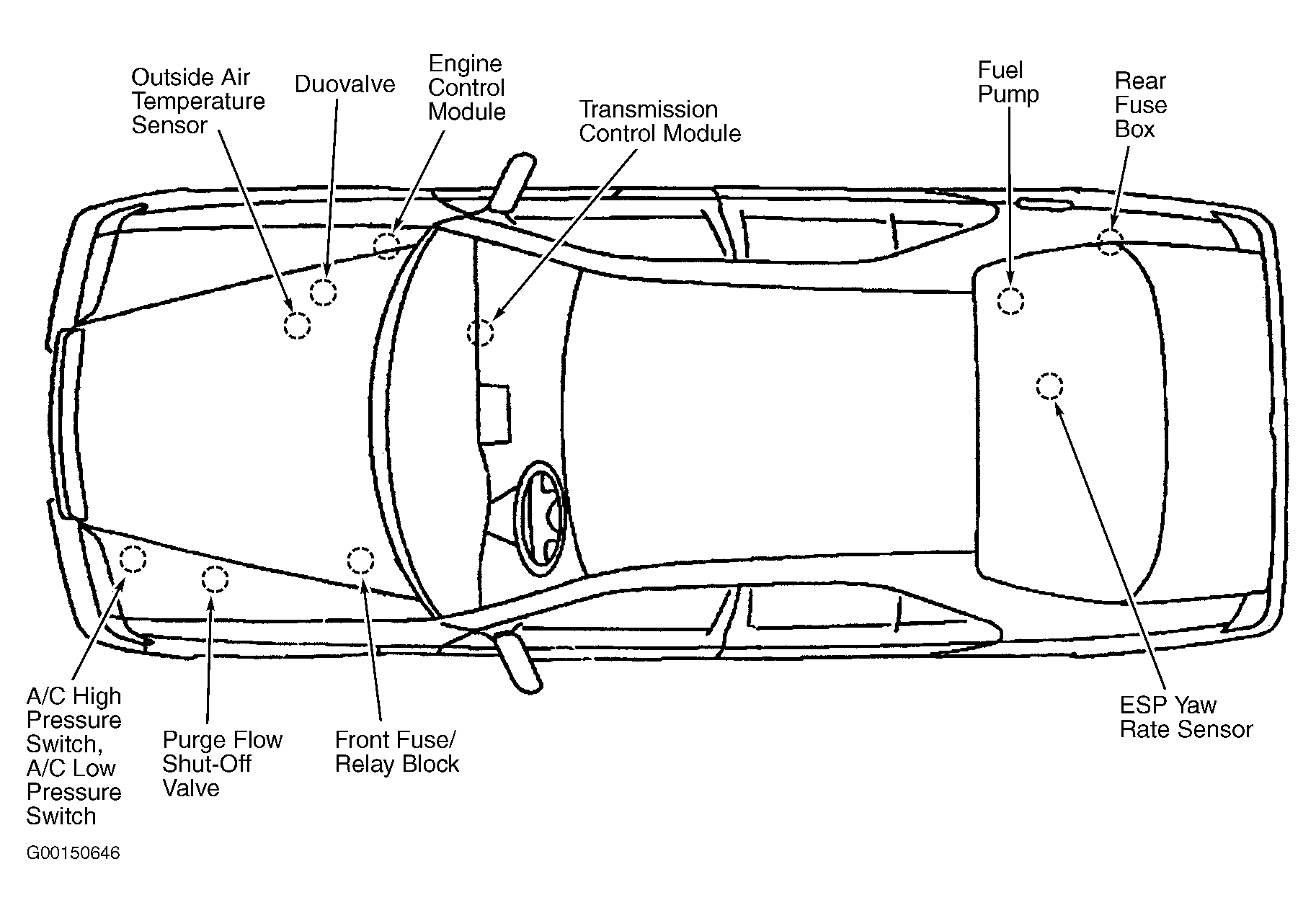

| Engine Control Module | At right rear of engine compartment. See Figure . |
| DAS Control Module | Behind instrument cluster. |
| DRL Control Module | Behind left side of dash. |
| RCL Control Module | At right front of luggage compartment. |
| Seat Belt Warning Module | Under left kick panel. |
| SRS Control Unit/Sensor | Under center console, forward of shifter, bolted to transmission tunnel. |
| Transmission Control Module | In passenger footwell, under footplate. See Figure . |
