Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| BAS Control Module | Below brake master cylinder. |
| Blower Regulator | Integrated into electric cooling fan, on engine side of radiator. |
| DAS Control Module | Behind instrument cluster. |
| Door Control Module (2) | In respective door. |
| Electronic Ignition Lock Control Module | On ignition switch. |
| Engine Control Module | At right rear corner of engine compartment. |
| ESA Control Module (Left Front) | Below left front seat. |
| ESA Control Module (Right Front) | Below right front seat. |

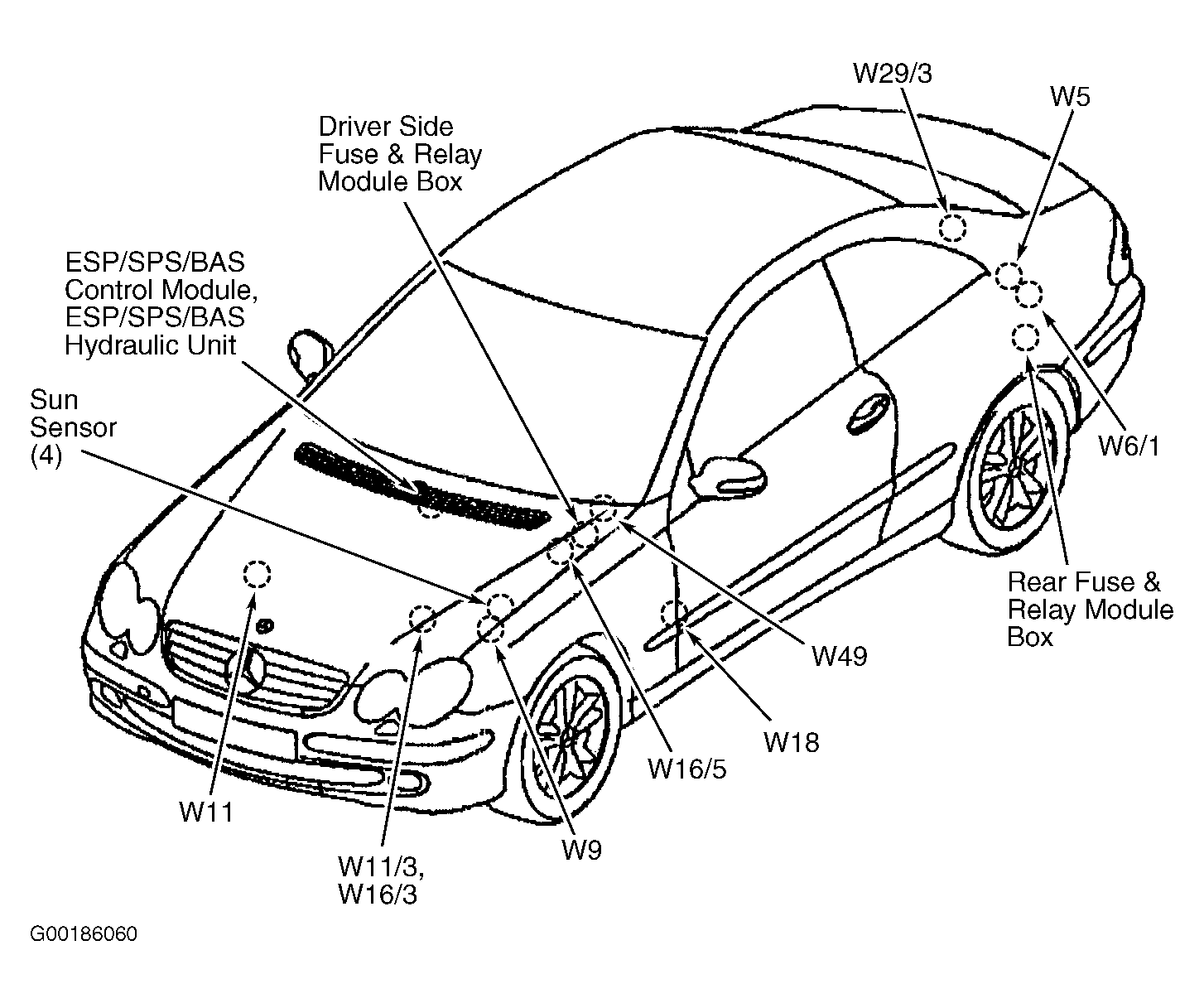

| ESP/SPS/BAS Control Module | At right front of engine compartment. See Figure. |
| Garage Door Opener Control Module | On left sun visor. |
| Headlight Range Adjustment Control Module | In front passenger footwell, under foot support. |
| Lower Control Field Control Module | Under center console, to left of shifter assembly. |
| Overhead Control Panel Control Module | At front of sliding/pop-up roof opening. |

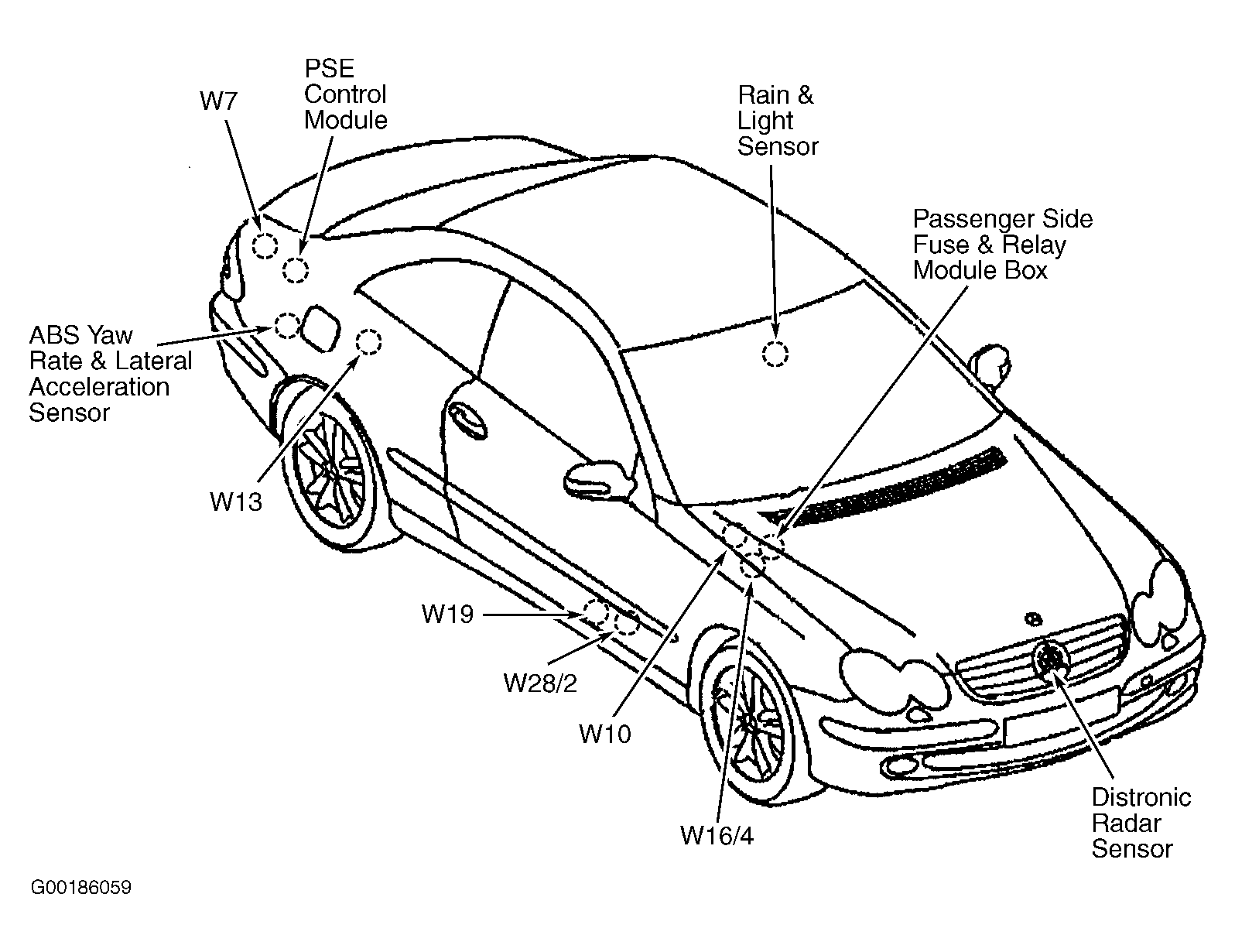

| PSE Control Module | At right side of trunk. See Figure. |
| Signal Pickup & Activation Module (Left Front) | On bottom of driver side fuse & relay module box. |
| SRS Control Module | Under front of center floor console. |
| Transmission Control Module | In front passenger footwell, under foot support. |
| Ultrasonic PTS Control Module | In front passenger footwell, under foot support. |
| Upper Control Field Control Module | Behind center of dash, below air vents. |
| Xenon Headlight Control Module (2) | On respective headlight assembly. |
| Xenon Headlight Ignition Module (2) | On respective headlight assembly. |
