Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | ||
|---|---|---|---|
| ABS Test Connector | In trunk on right side, near wheelwell. See Figure. | ||
| A/C-Heater Blower Resistors | On heater evaporator assembly. | ||
| Anti-Theft Fuses | In upper left side of trunk. | ||
| Circuit Breakers | |||

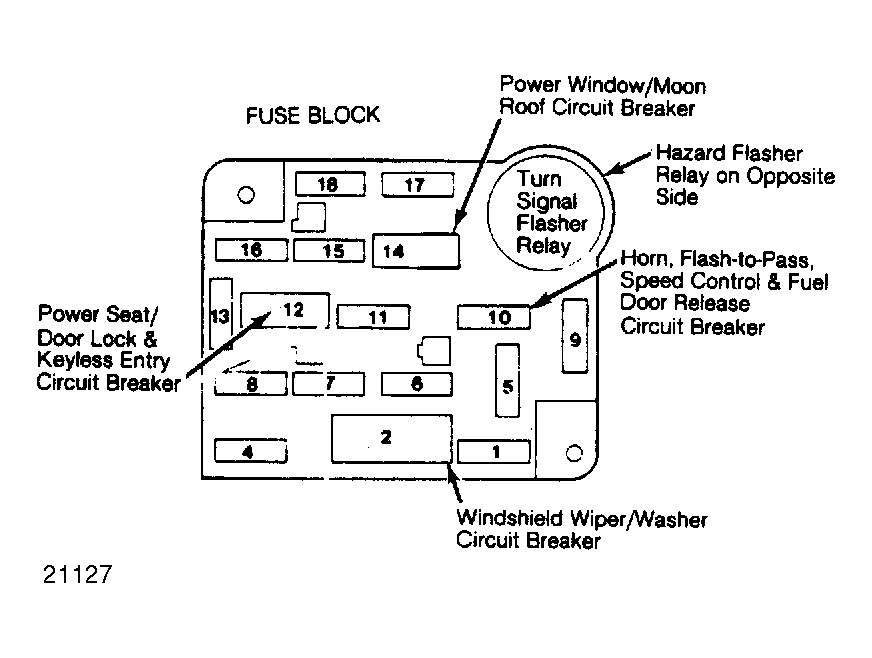

| Horn, Flash-to-Pass, Speed Control & Fuel Door Release | In cavity 10 of fuse block. See Figure. | ||
| Power Seat/Door Lock & Keyless Entry System | In cavity 12 of fuse block. See Figure. | ||
| Power Window/Moon Roof | In cavity 14 of fuse block. See Figure. | ||
| Windshield Wiper/Washer | In cavity 2 of fuse block. See Figure. | ||
| Fuse Block | Under left side of dash. | ||
| Fusible Links | |||
| 2.3L Turbo | |||
| A (Blue/20 ga.) Engine Bay Light | Near starter relay. | ||
| B & C (Black/16 ga.) ABS Power Relay | Near starter relay. | ||
| D (Brown/18 ga.) Ride Control Relay | At starter relay terminal post. | ||
| E (Blue/20 ga.) ABS & EEC | At starter relay terminal post. | ||
| F (Black/16 ga.) EEC Power Relay | At starter relay terminal post. | ||
| G (Black/16 ga.) Rear Defrost | At starter relay terminal post. | ||
| H (Black/16 ga.) Accessories | At starter relay terminal post. | ||
| I (Black/16 ga.) Stop/Hazard Lights & Speed Control | At starter relay terminal post. | ||
| J (Black/16 ga.) EEC Power Relay | At starter relay terminal post. | ||
| K (Blue/20 ga.) Ignition Switch | At starter relay terminal post. | ||
| L (Green/14 ga.) Starter Relay | At starter relay terminal post. | ||
| 3.8L | |||
| A (Green/14 ga.) Charge System | At starter relay terminal post. | ||
| B (Black/16 ga.) Power Distribution | At starter relay terminal post. | ||
| C (Black/16 ga.) Accessories | At starter relay terminal post. | ||
| E (Black/20 ga.) Rear Def. | Attached to starter relay. | ||
| F (Blue/20 ga.) Engine Bay Light | Attached to starter relay. | ||
| L & M (Blue/20 ga.) EEC Power Relay | Attached to starter relay. | ||
| 5.0L | |||
| A (Black/16 ga.) Charge System | At starter relay terminal post. | ||
| B (Black/16 ga.) Power Distribution | At starter relay terminal post. | ||
| C (Black/16 ga.) Accessories | At starter relay terminal post. | ||
| E (Black/16 ga.) Rear Def. | Attached to starter relay. | ||
| F (Blue/20 ga.) Engine Bay Light | Attached to starter relay. | ||
| L & M (Blue/20 ga.) EEC Power Relay | Attached to starter relay. | ||
| Light Sensor Amplifier | Attached to top left underside of dash. | ||
| Premium Sound Amplifier | In trunk under package tray. See Figure. | ||
| Seat Belt Warning Chime | Behind left side of dash. See Figure. | ||
| Self-Test Connector | |||

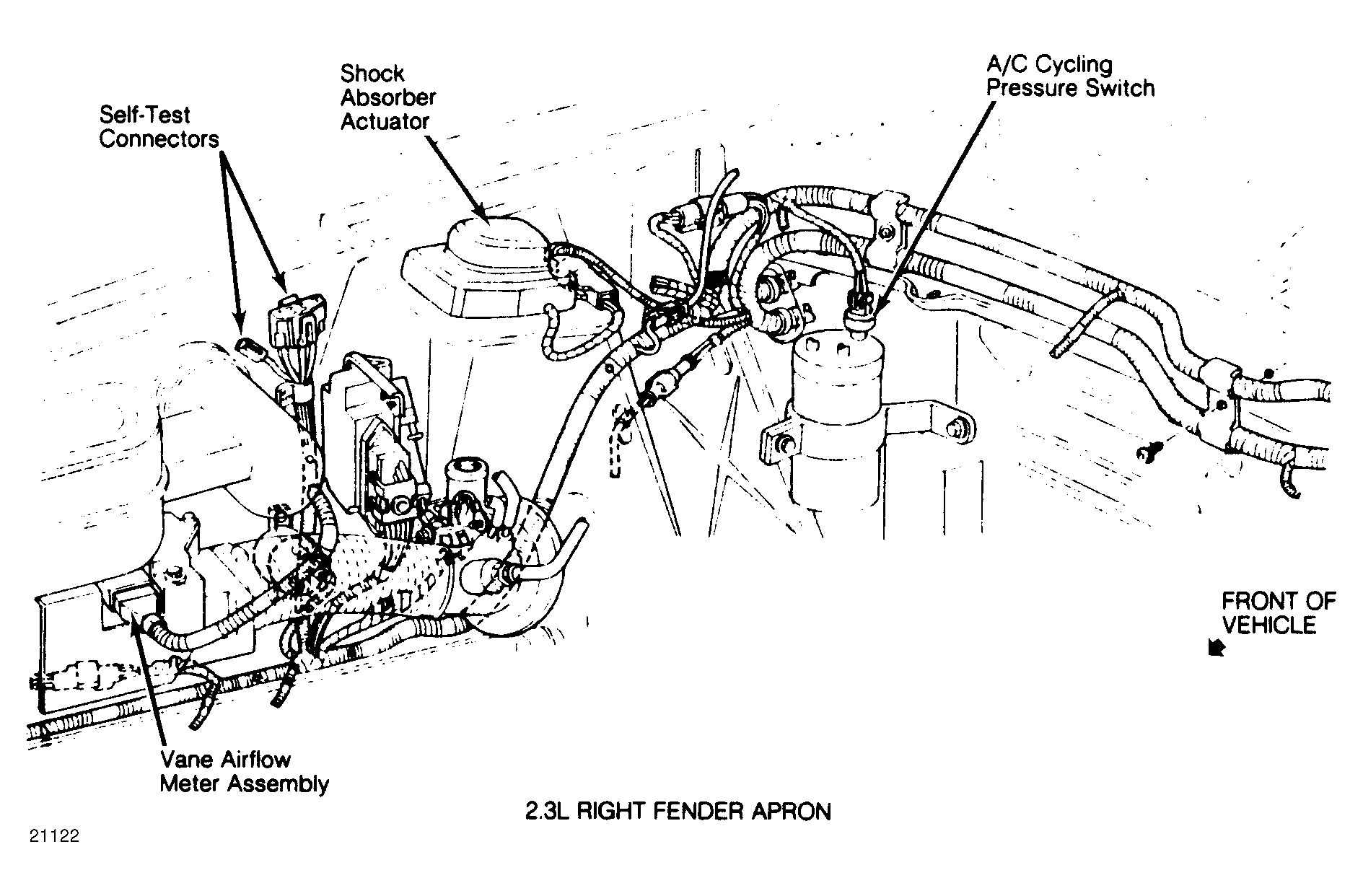

| 2.3L | In front of right front shock tower. See Figure & Figure . | ||

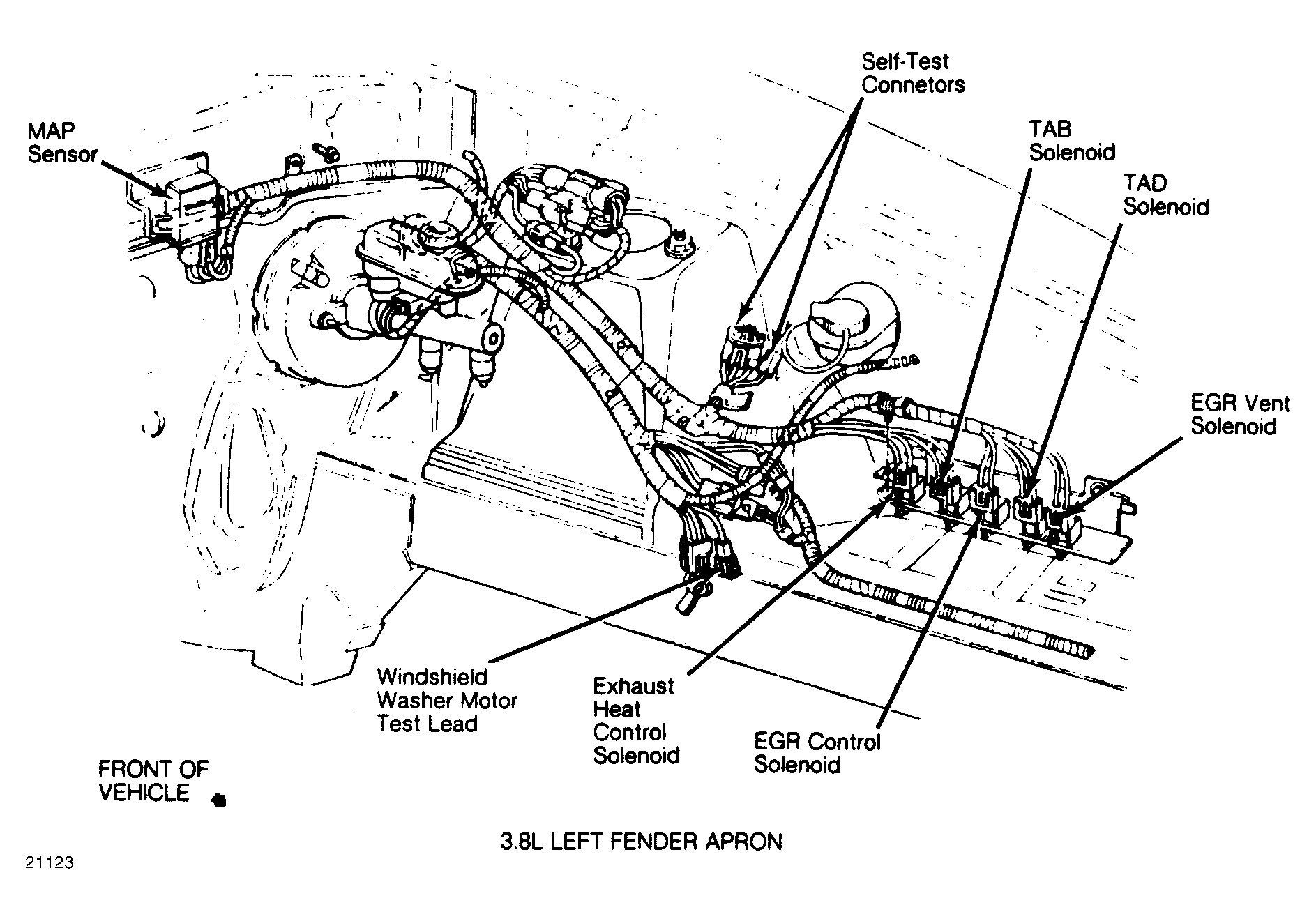

| Except 2.3L | In front of left front shock tower. See Figure & Figure . | ||
| Shock Actuators | On top of shock absorbers. | ||
| Speed Control Amplifier | Attached to left side of dash support. | ||
| Speed Control Servo | Under left front fender, at door pillar. | ||
| Turbo Indicator Diodes | In wiring harness, near turbo pressure switch. | ||
| Windshield Washer Motor Test Lead | In front of left front shock tower, near frame rail. See Figure. | ||
| Wiper Interval Governor | Attached to bottom of instrument panel shake brace. | ||
