Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse Blocks | ||

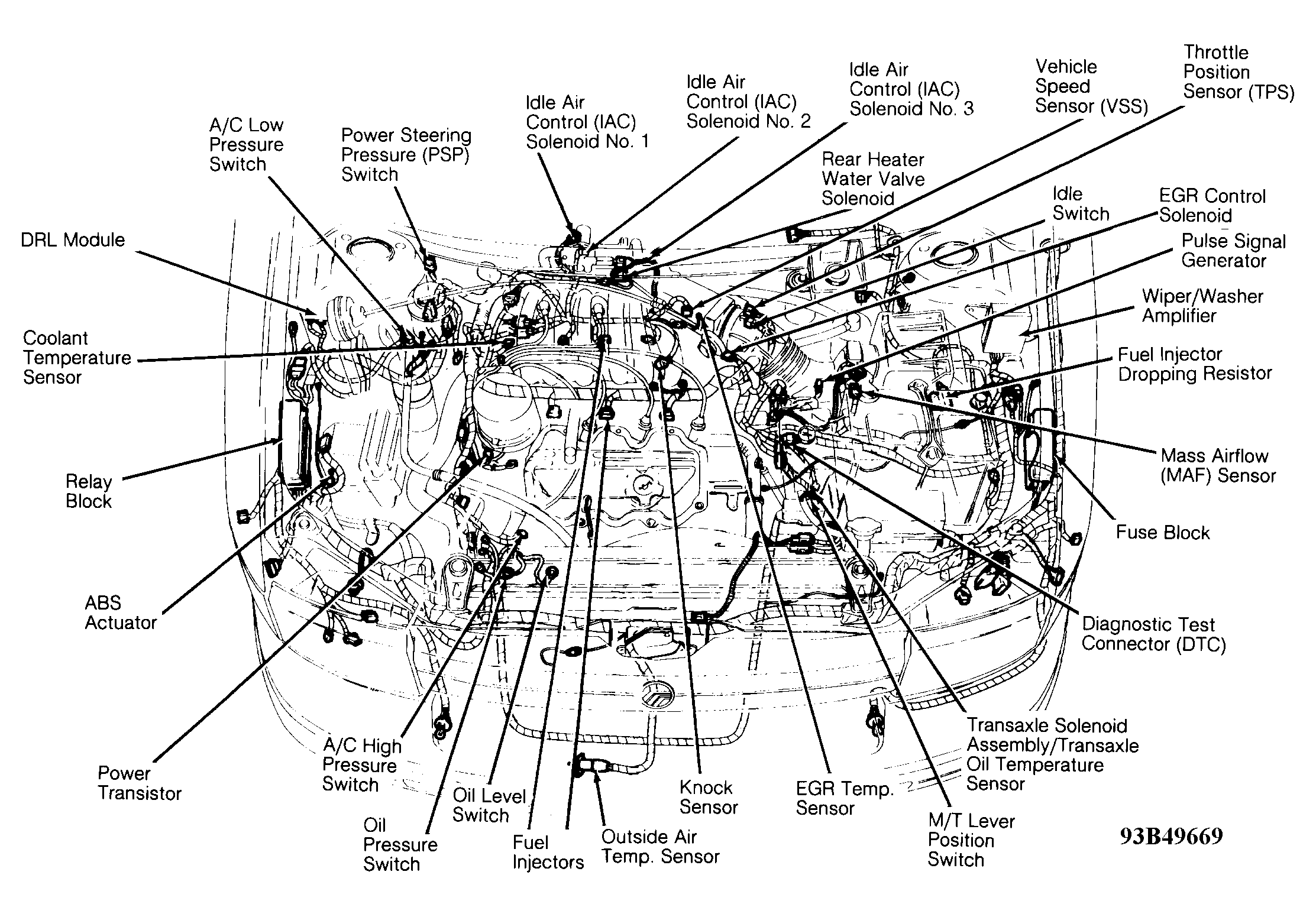

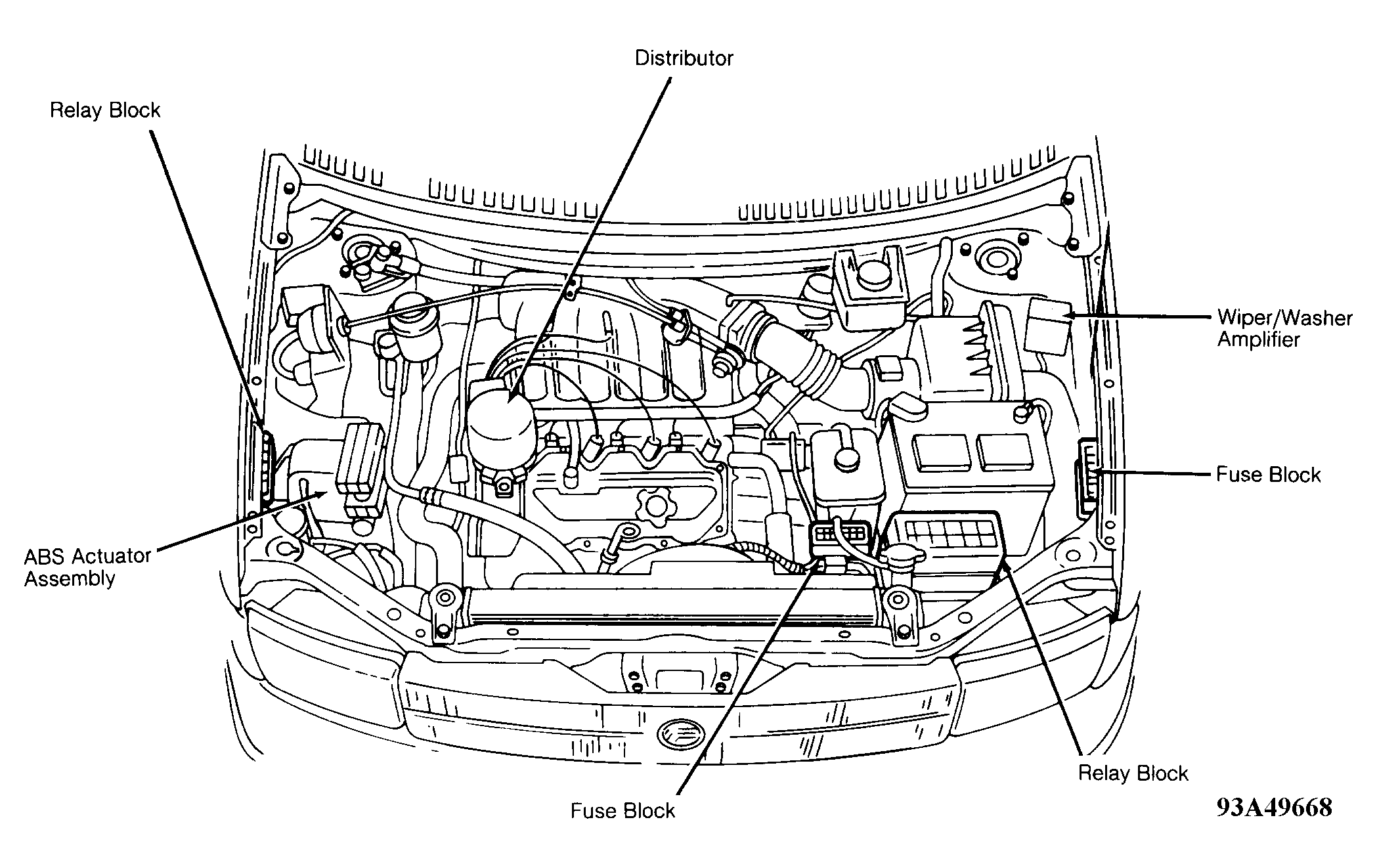

| Engine Compartment (2) | Near battery & left front inner fender panel. See Figure & Figure . | |
| Passenger Compartment | Behind cover, on left side of dash. | |
| Relay Blocks | ||
| Engine Compartment (2) | On left and right side of engine bay. See Figure & Figure | |
| Passenger Compartment | On right side of passenger compartment fuse block. | |
| Circuit Breakers | Above left kick panel. | |
