Ignition Coil Resistance

  1. Using a DVOM, measure primary coil resistance between terminal No. 3 (power terminal) and each coil terminal. See Fig 1 . To check secondary coil resistance, measure between each coil high voltage terminals. See Fig 2 .
  2. Replace coil if primary and secondary coil resistances are not within specification. See IGNITION COIL RESISTANCE  table.
    IGNITION COIL RESISTANCE (DIS) - Ohms @ 68°F (20°C)

    Application Primary Secondary
    3.0L .67-.81 11,300-15,300

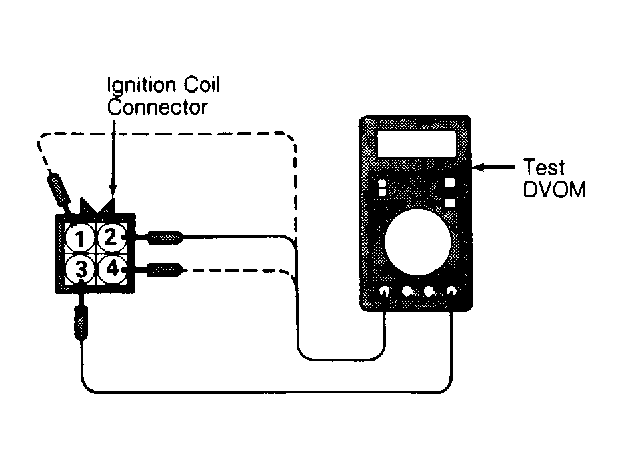

    Fig 1: Testing Ignition Coil Primary Resistance
    G91F16456Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

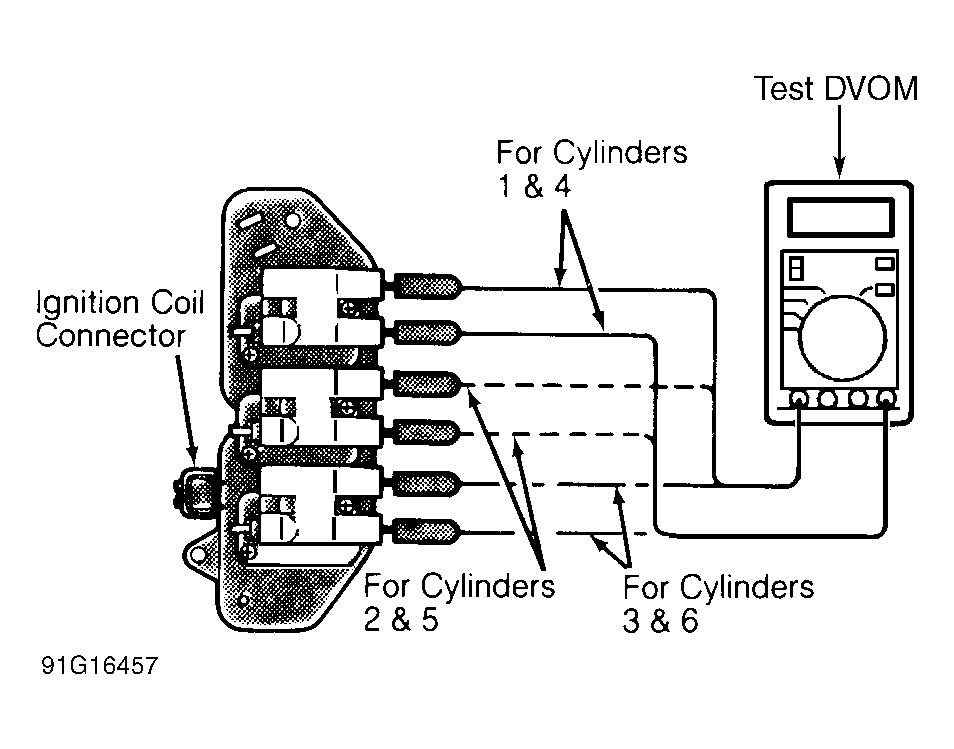

    Fig 2: Testing Ignition Coil Secondary Resistance
    G91G16457Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
