Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Component Location |
| Diode (Active Trac 4WD) |
Behind lower left side of dash. |
| Diode (ABS) |
Behind lower center of dash. |
| Engine Compartment Relay Box |

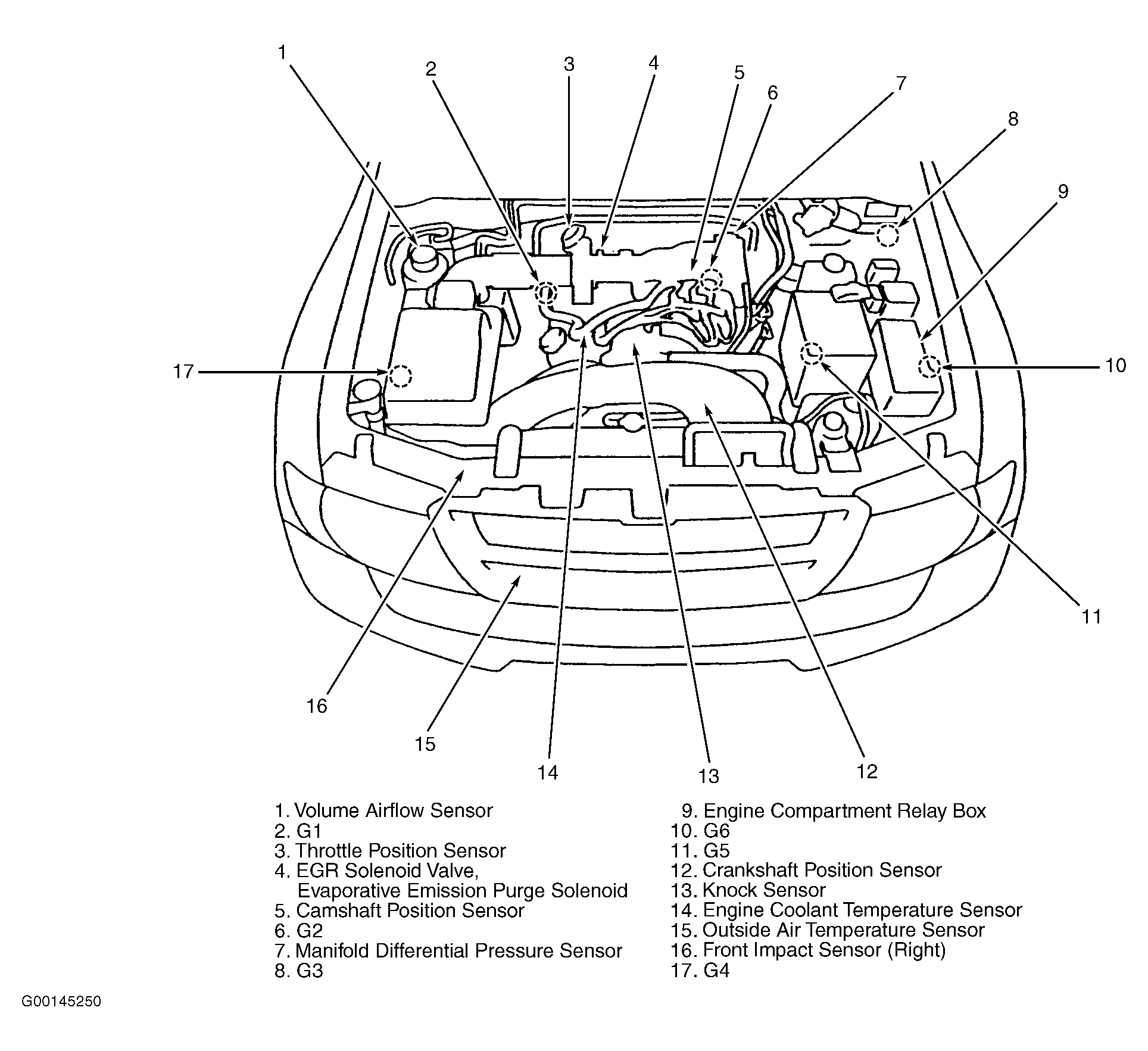

Left side of engine compartment. See Figure. |
| Junction Block |
Behind lower left side of dash. See Figure. |
