Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

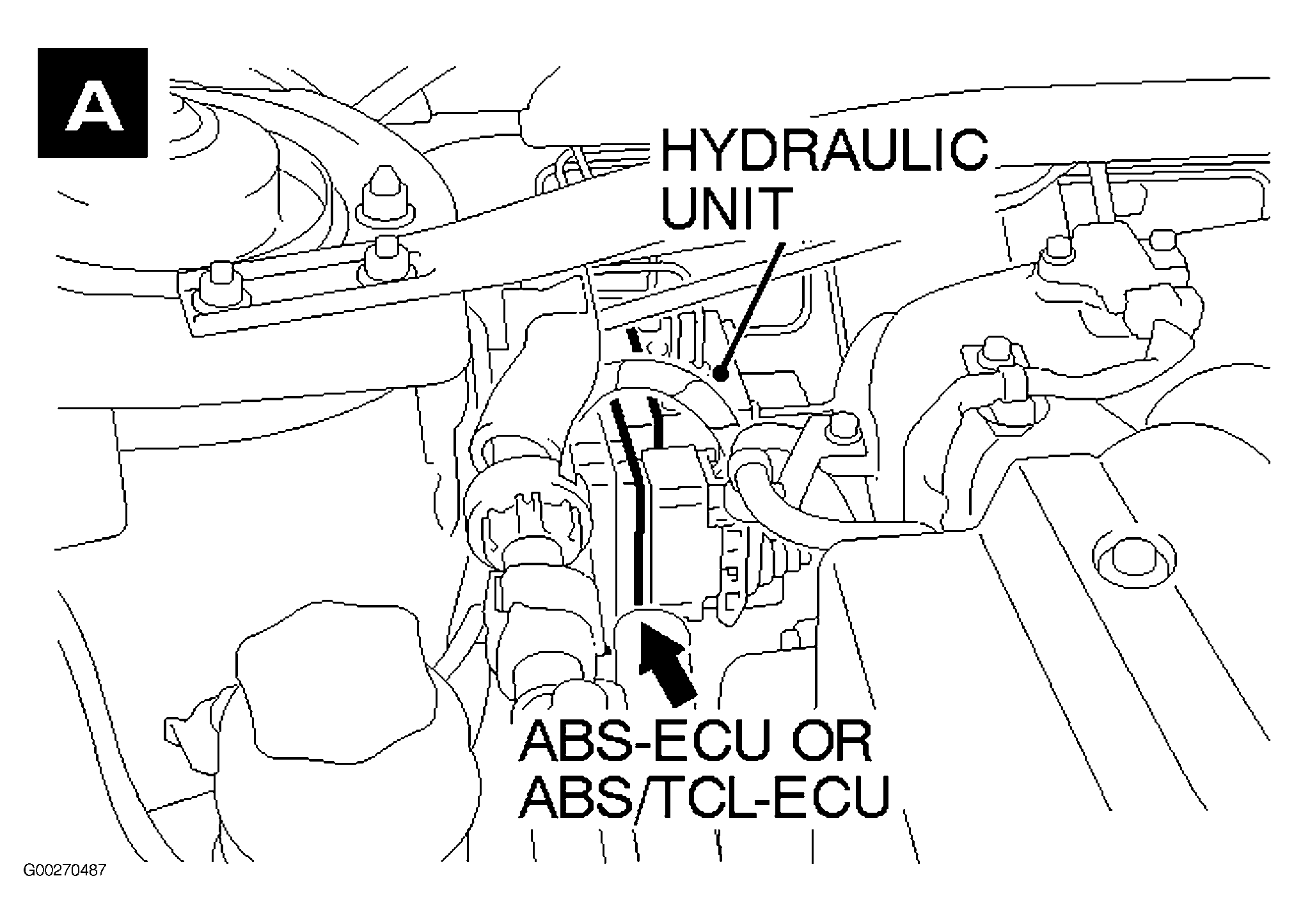

| ABS ECU | At right rear corner of engine compartment. See Figure . |
| ABS/TCL ECU | At right rear corner of engine compartment. See Figure . |

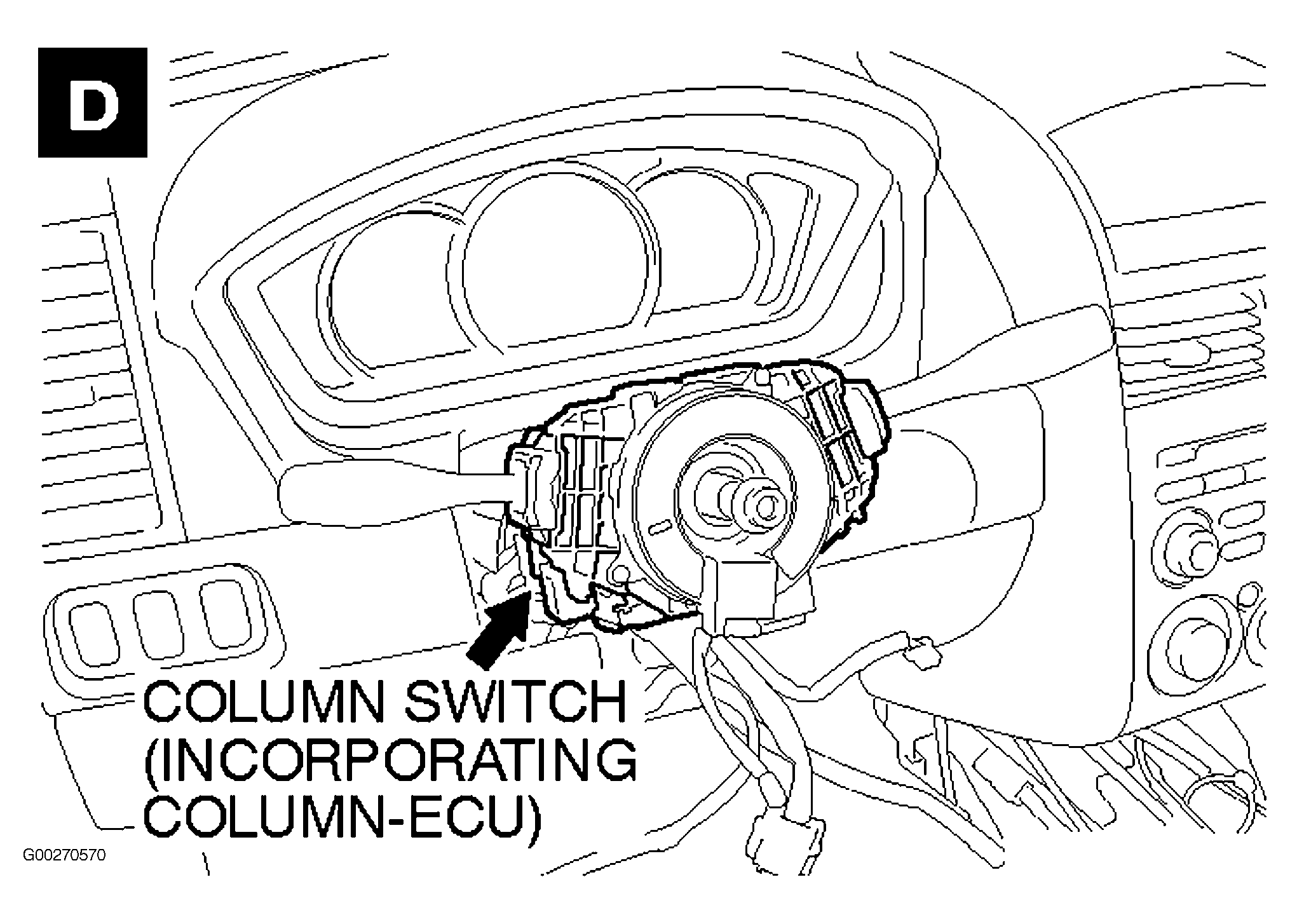

| Column ECU | At top of steering column. See Figure . |

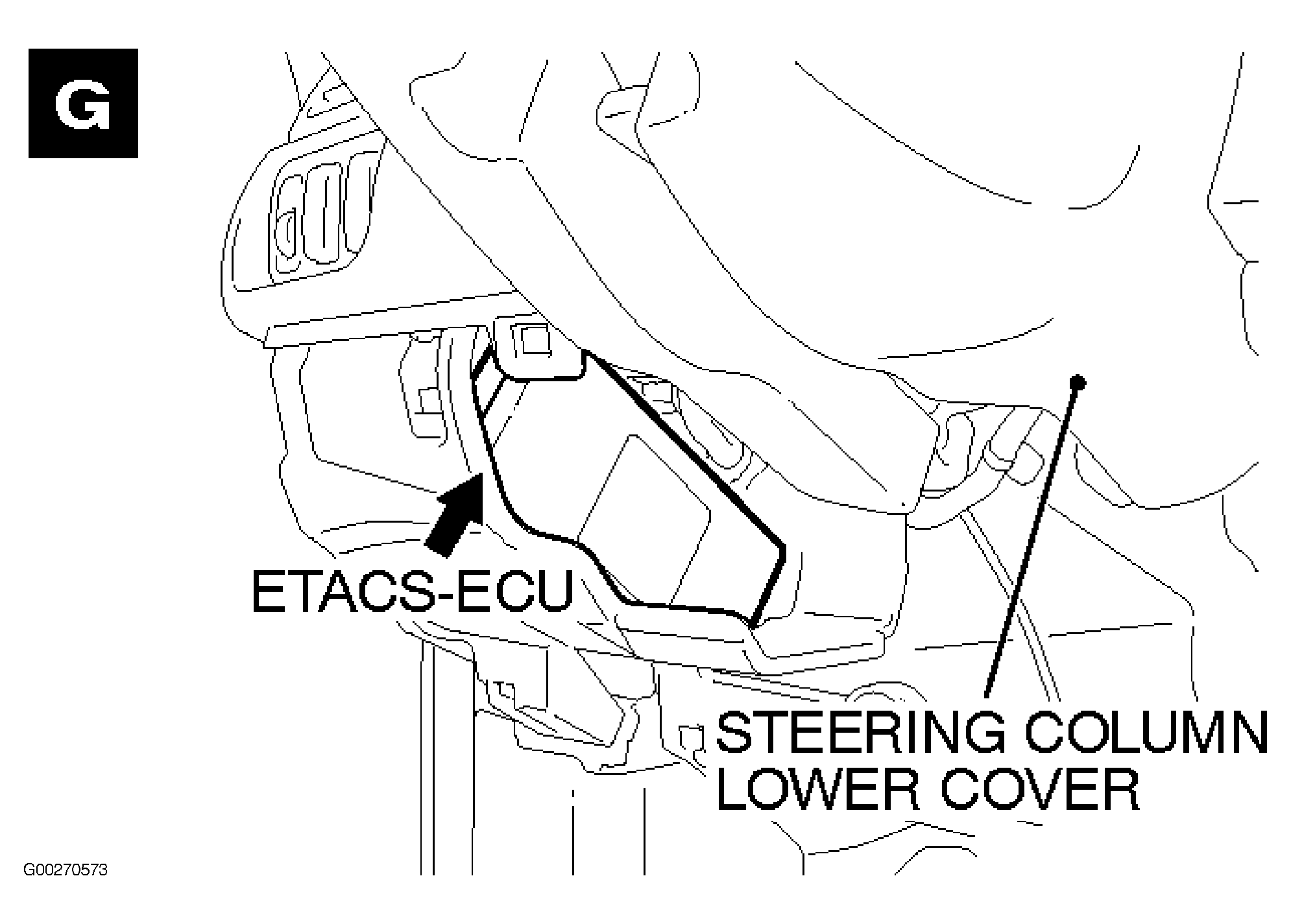

| ETACS ECU | Behind left side of dash, attached to junction block. See Figure . |

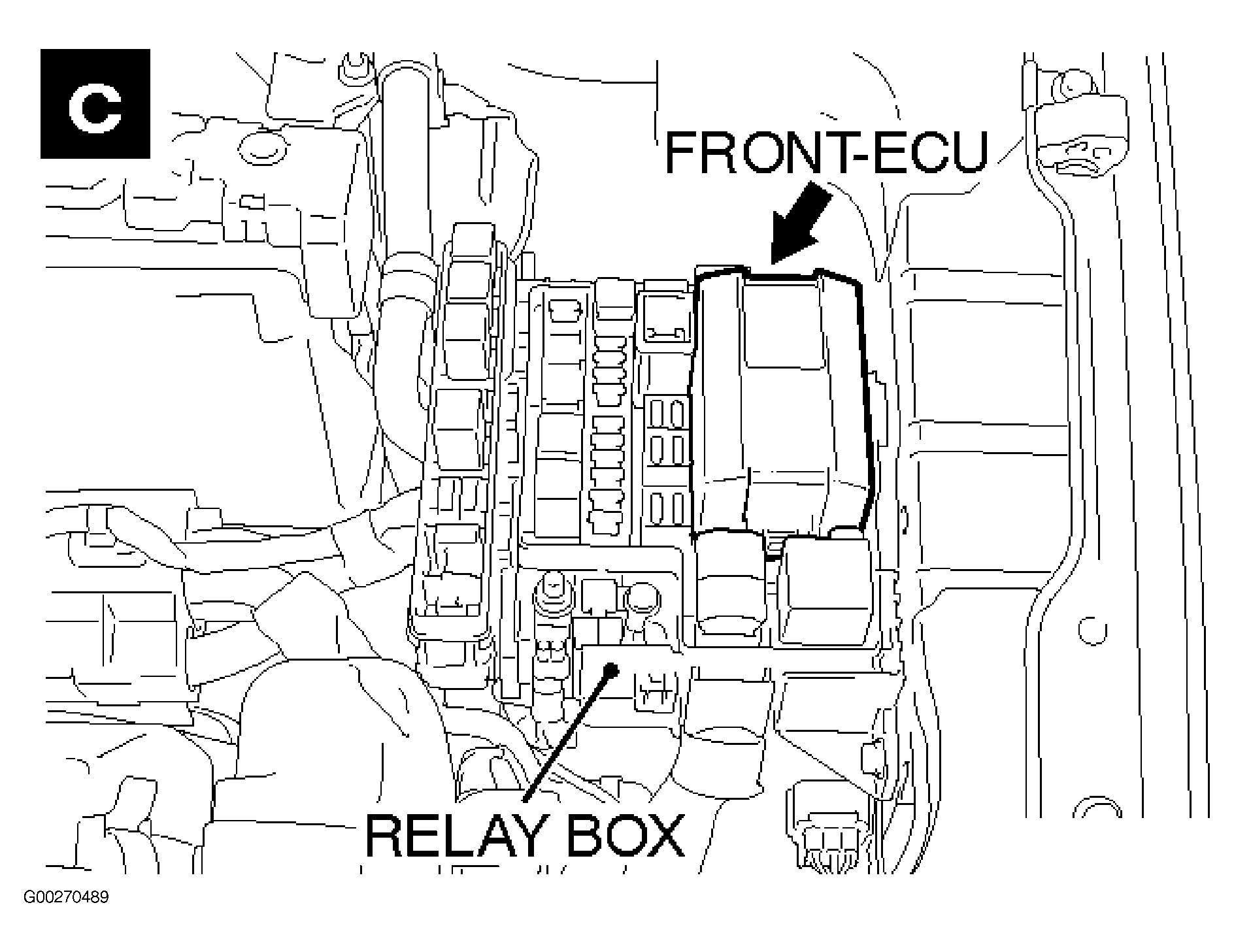

| Front ECU | On engine compartment relay box. See Figure . |

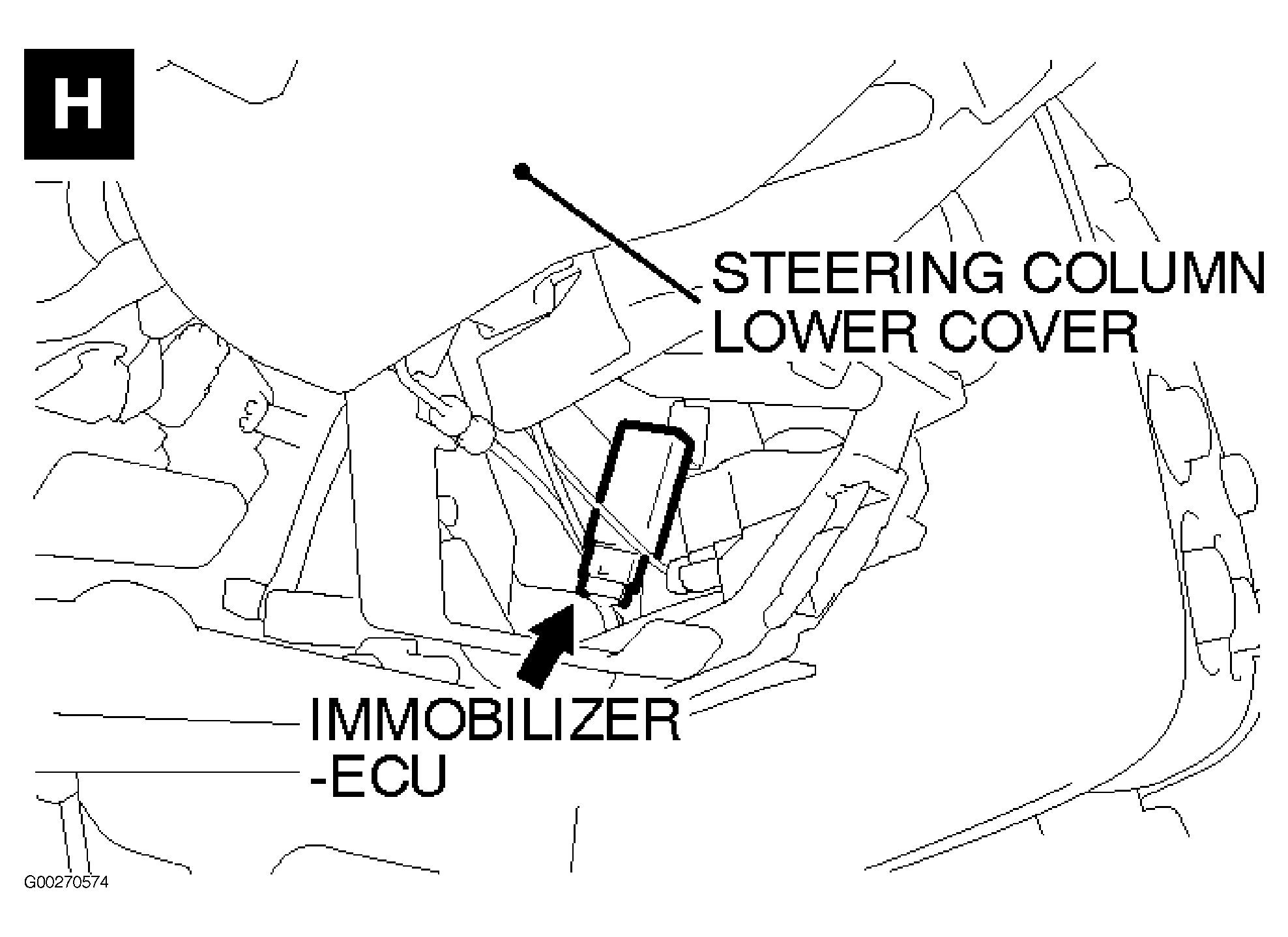

| Immobilizer ECU | Behind lower center of dash. See Figure . |

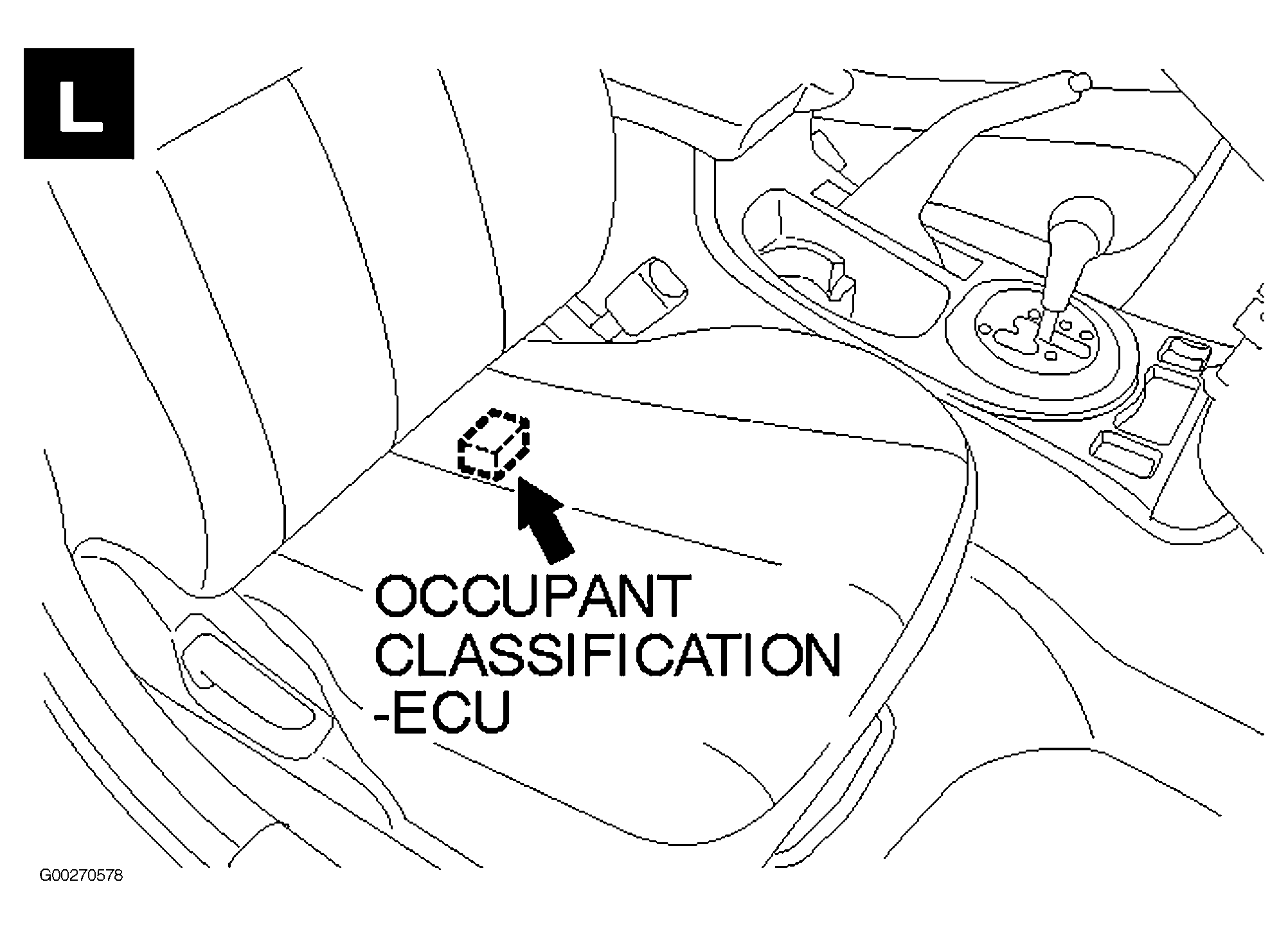

| Occupant Classification ECU | Under right front seat. See Figure . |

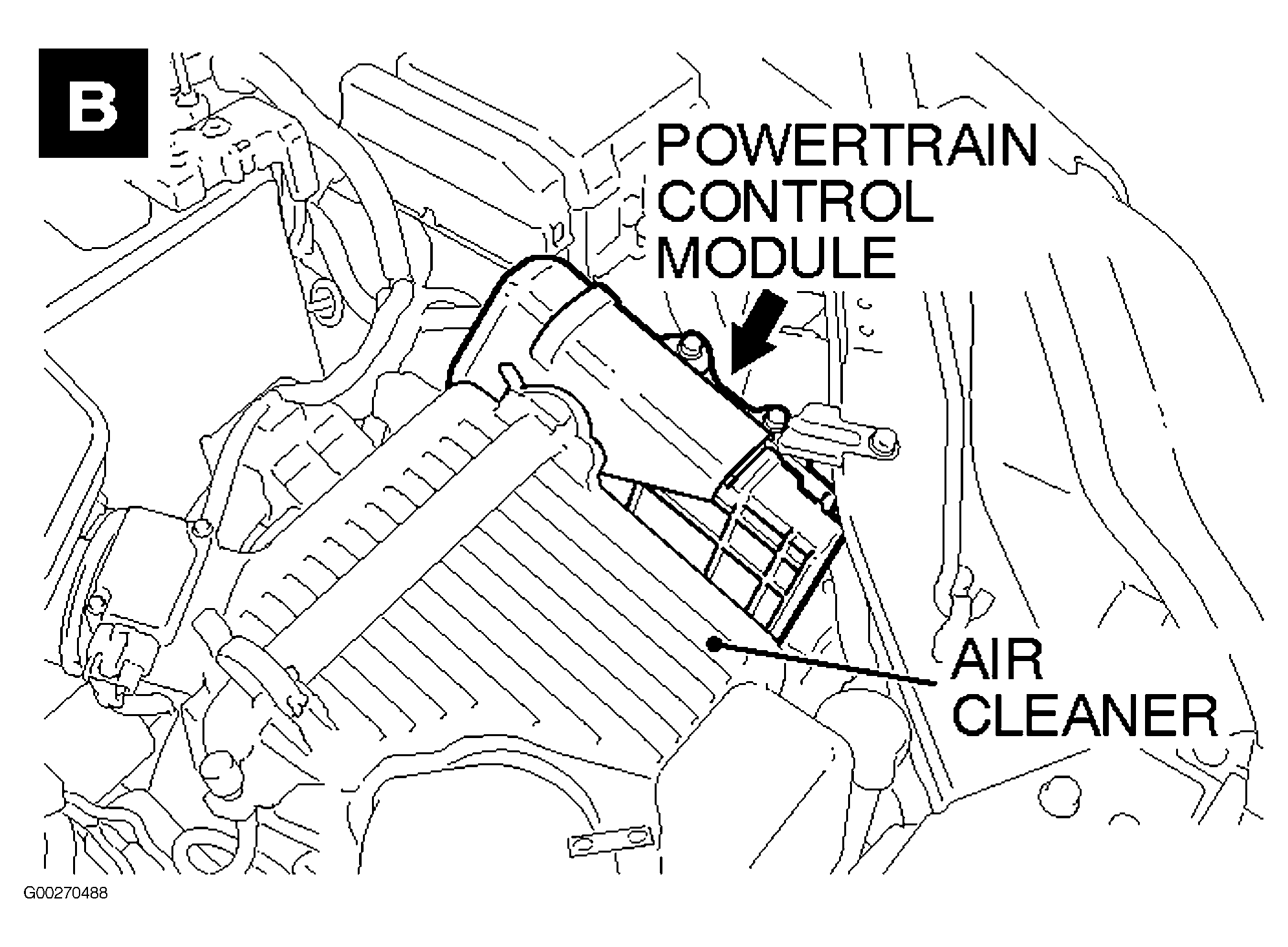

| Powertrain Control Module | Left front of engine compartment. See Figure . |

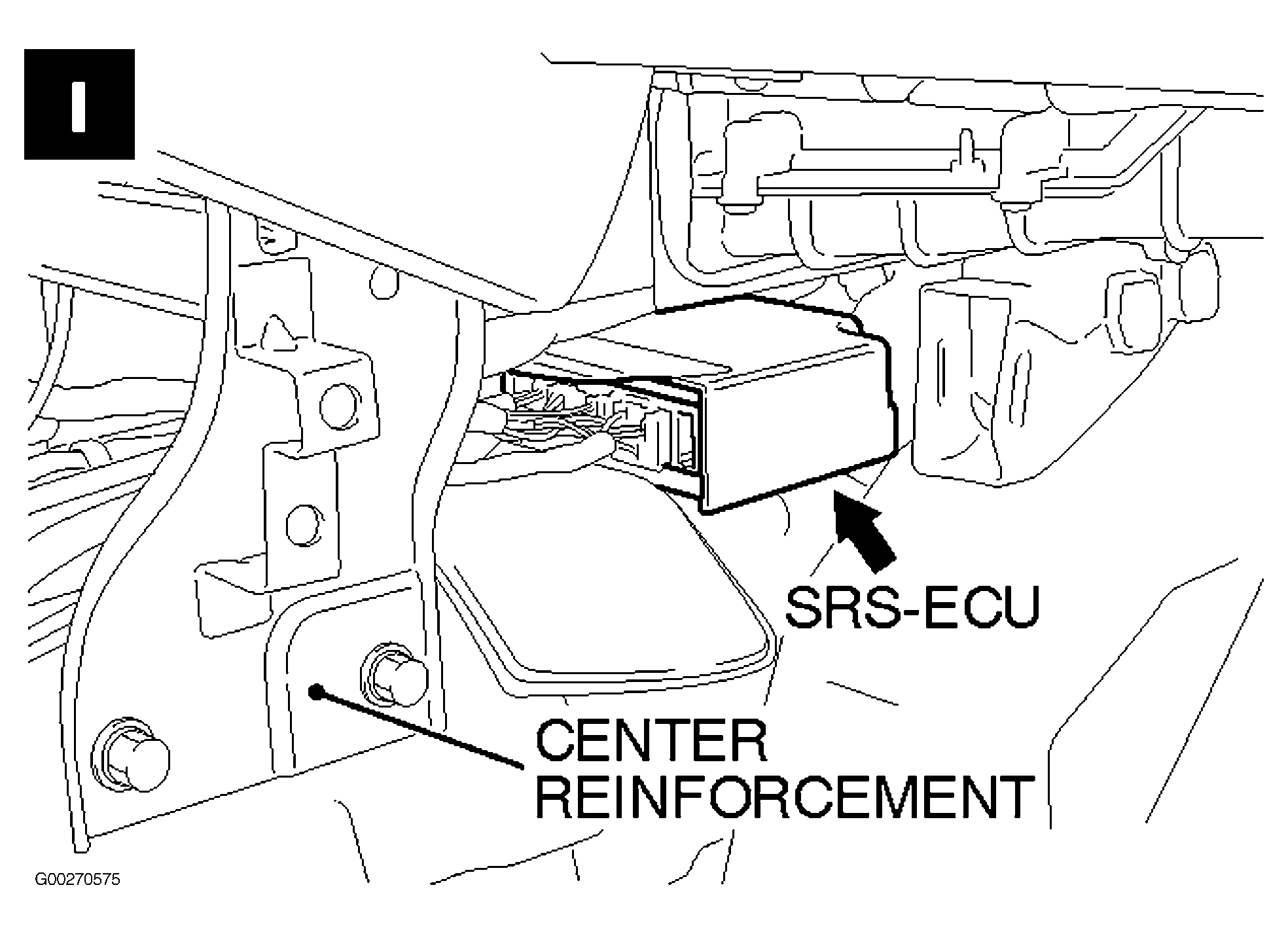

| SRS ECU | Behind lower center of dash. See Figure . |

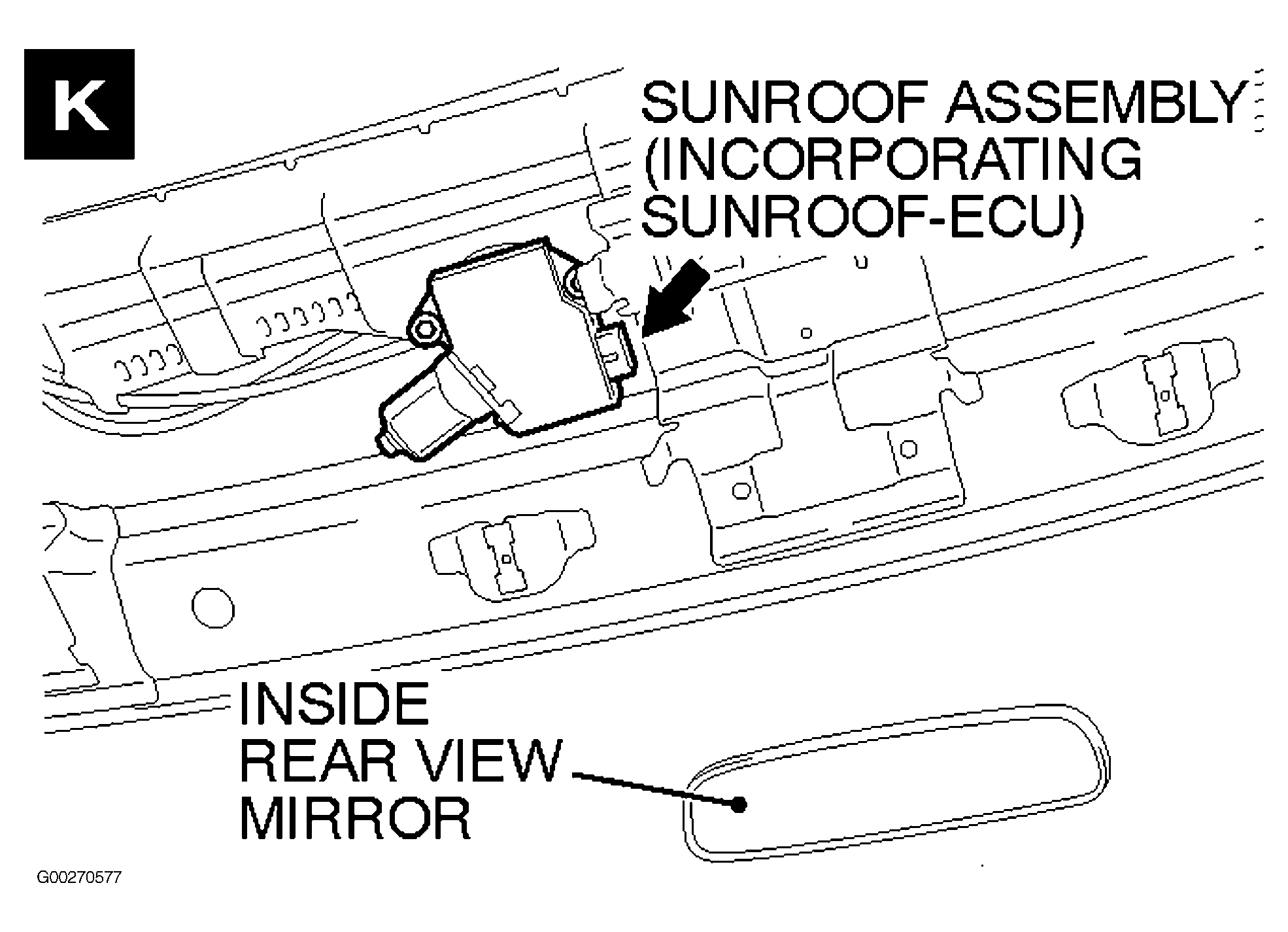

| Sunroof ECU | At front of sunroof opening. See Figure . |
