Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

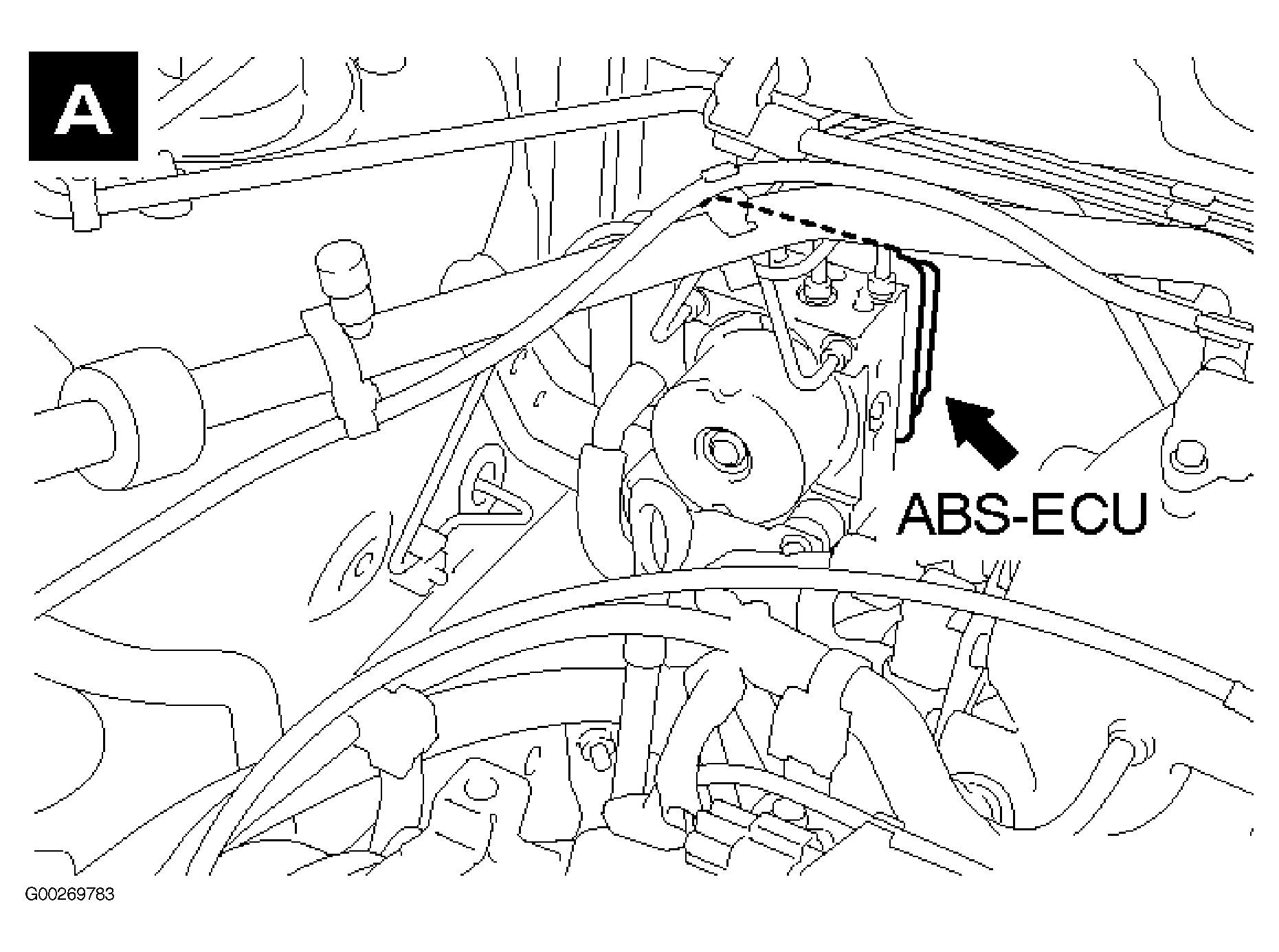

| ABS-ECU | At right rear of engine compartment. See Figure . |

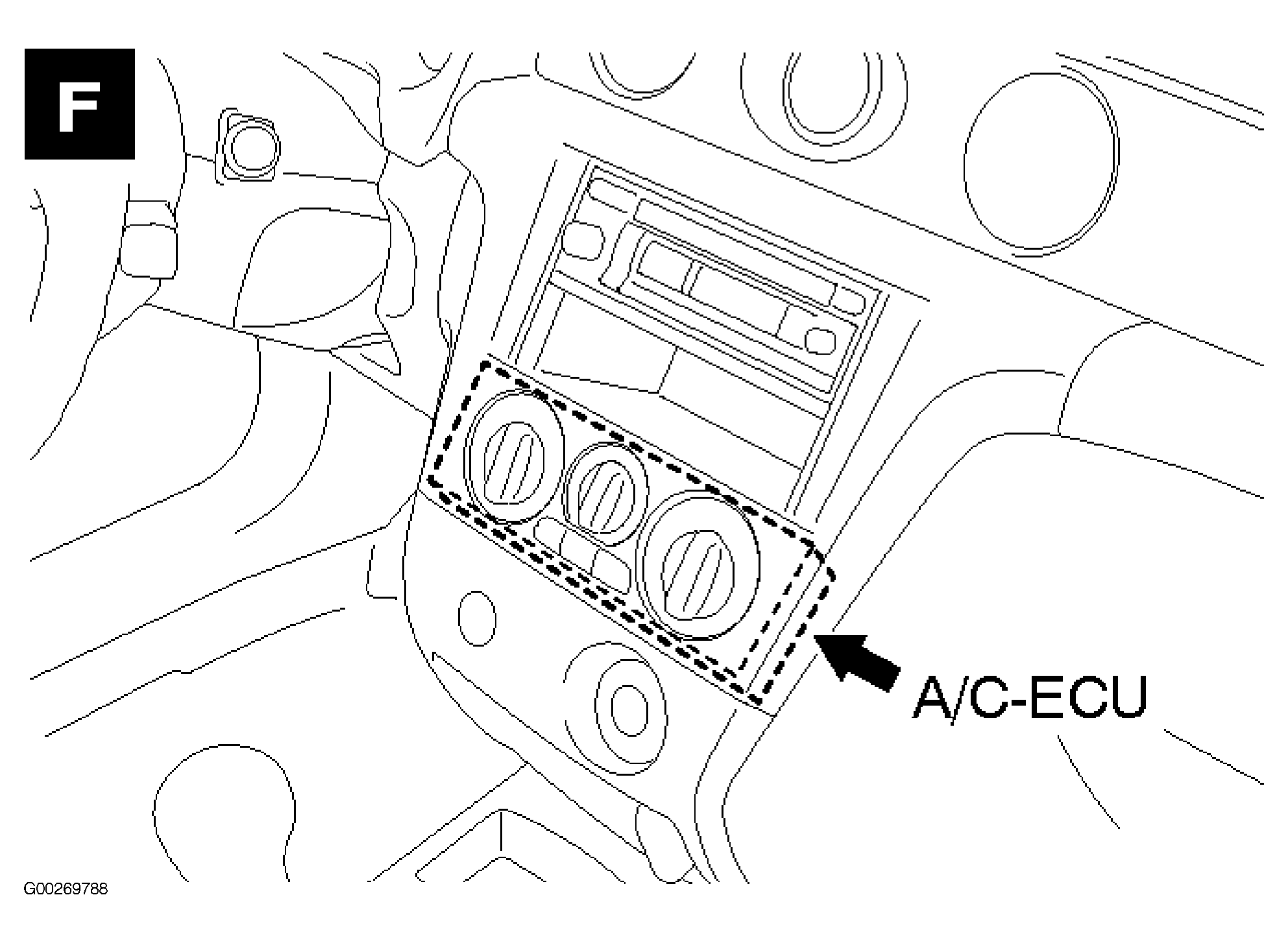

| A/C-ECU | Behind center of dash, below radio. See Figure . |

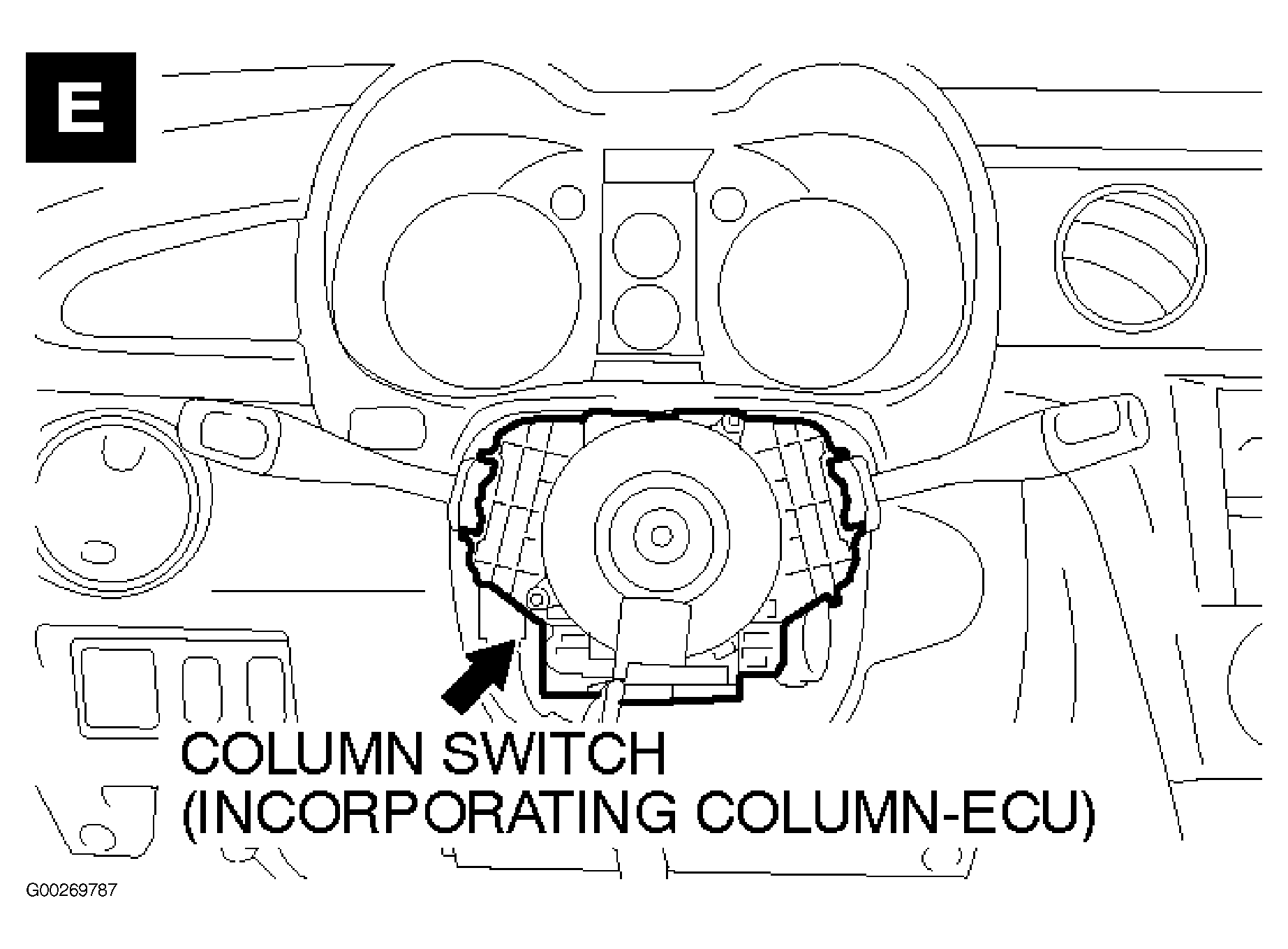

| Column-ECU | On top of steering column. See Figure . |

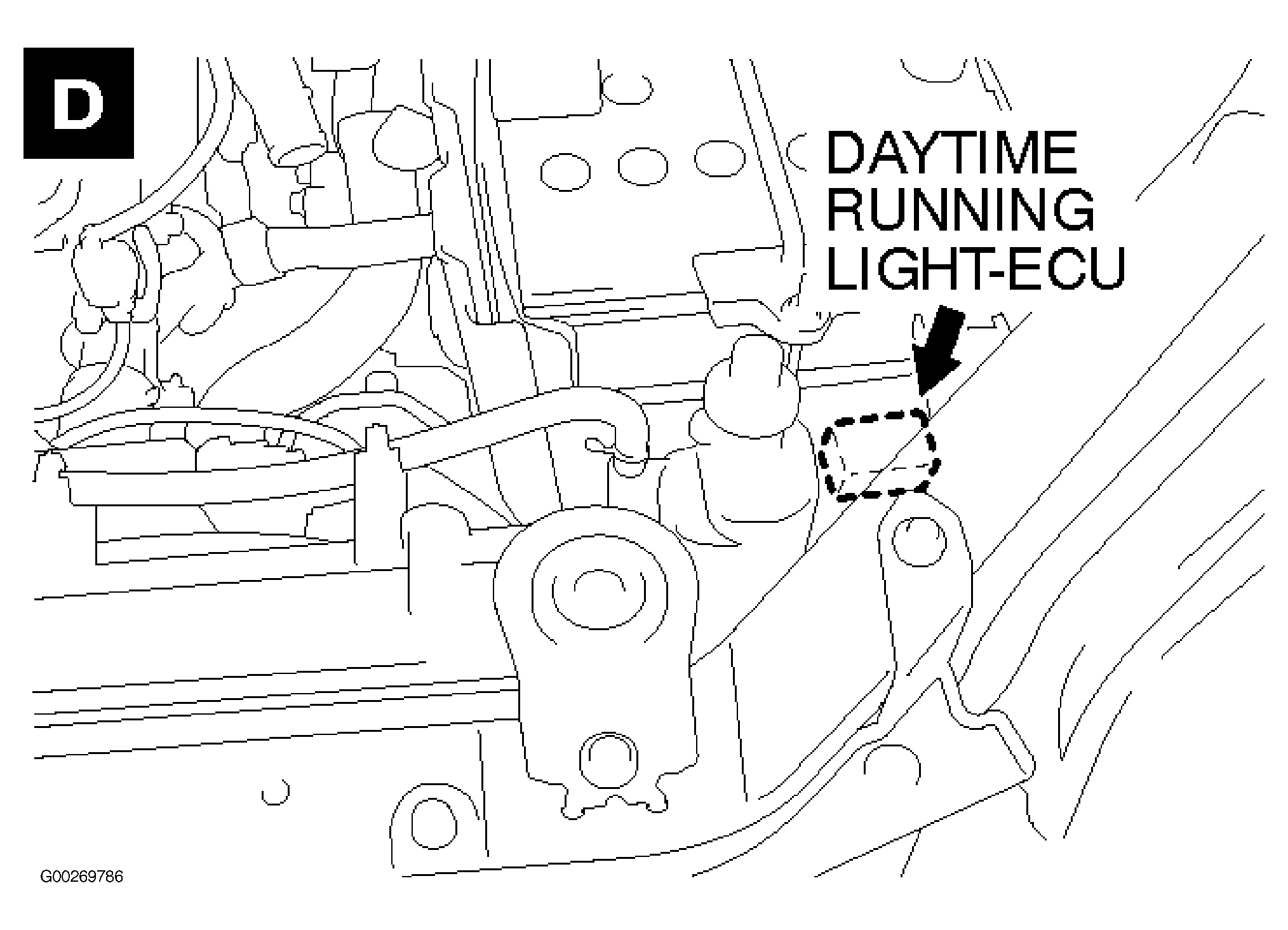

| Daytime Running Light-ECU | At left front corner of engine compartment. See Figure . |

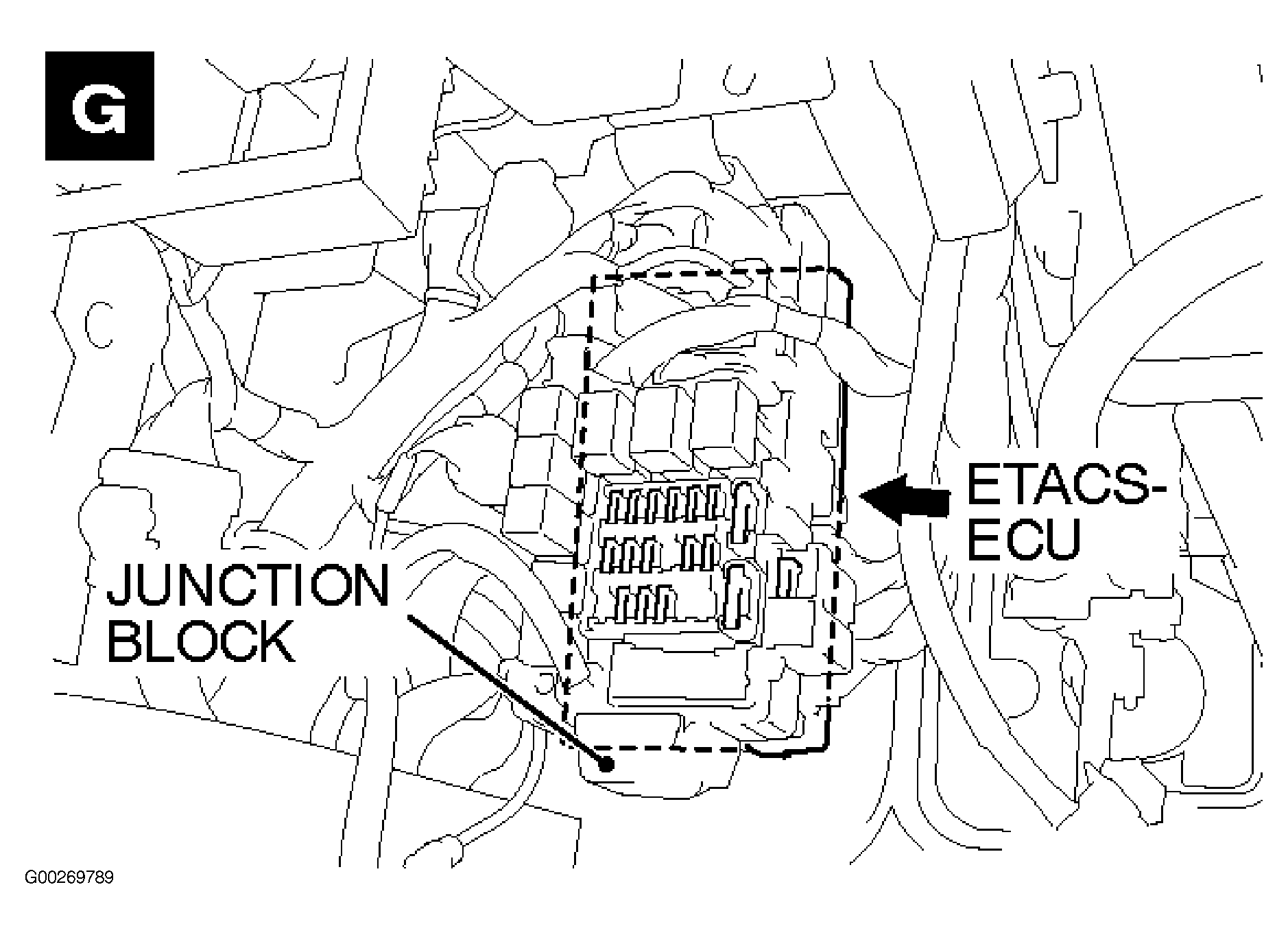

| ETACS-ECU | On rear of junction block, behind left side of dash. See Figure . |

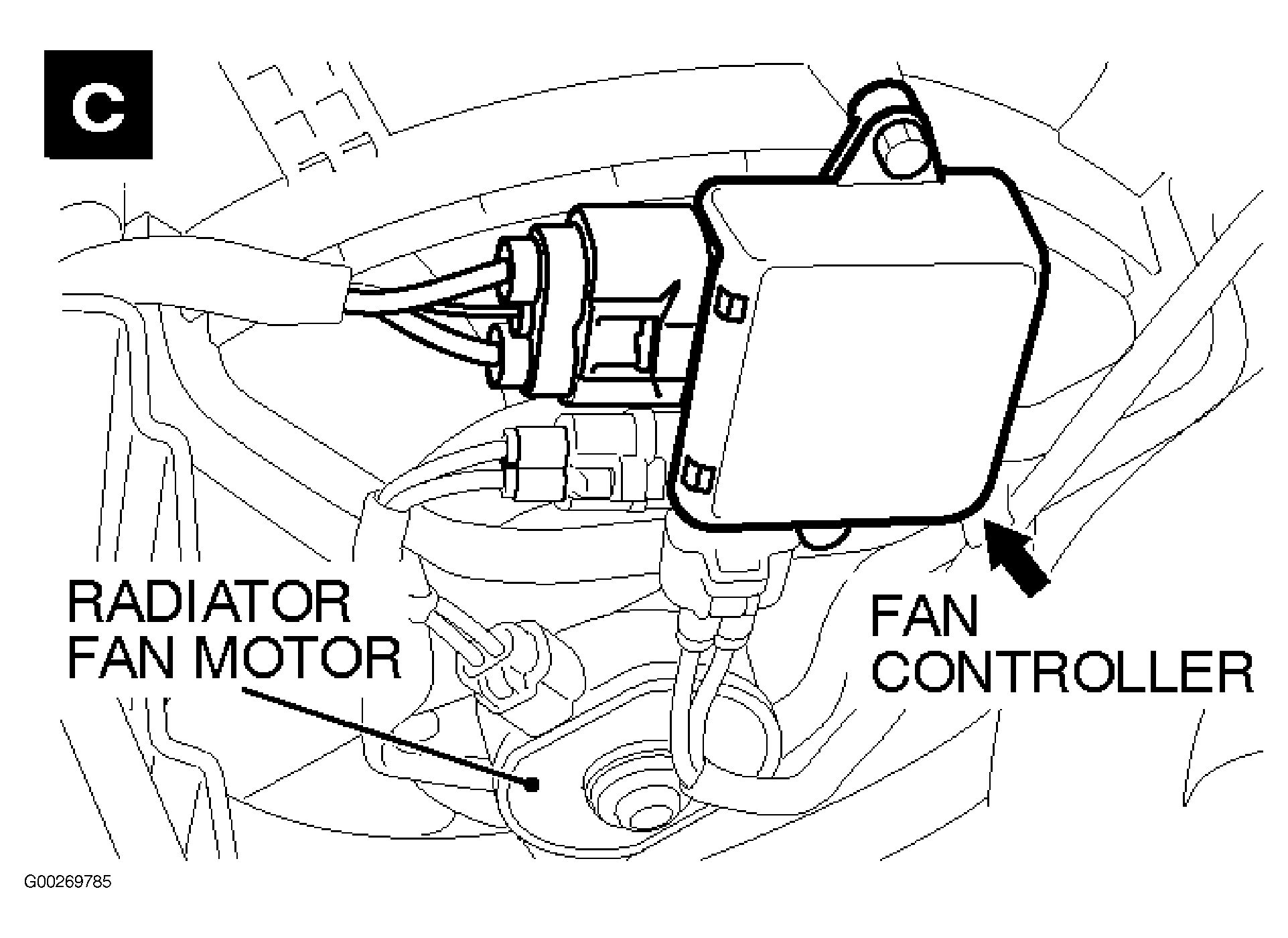

| Fan Controller | On fan shroud, at left front of engine compartment. See Figure . |

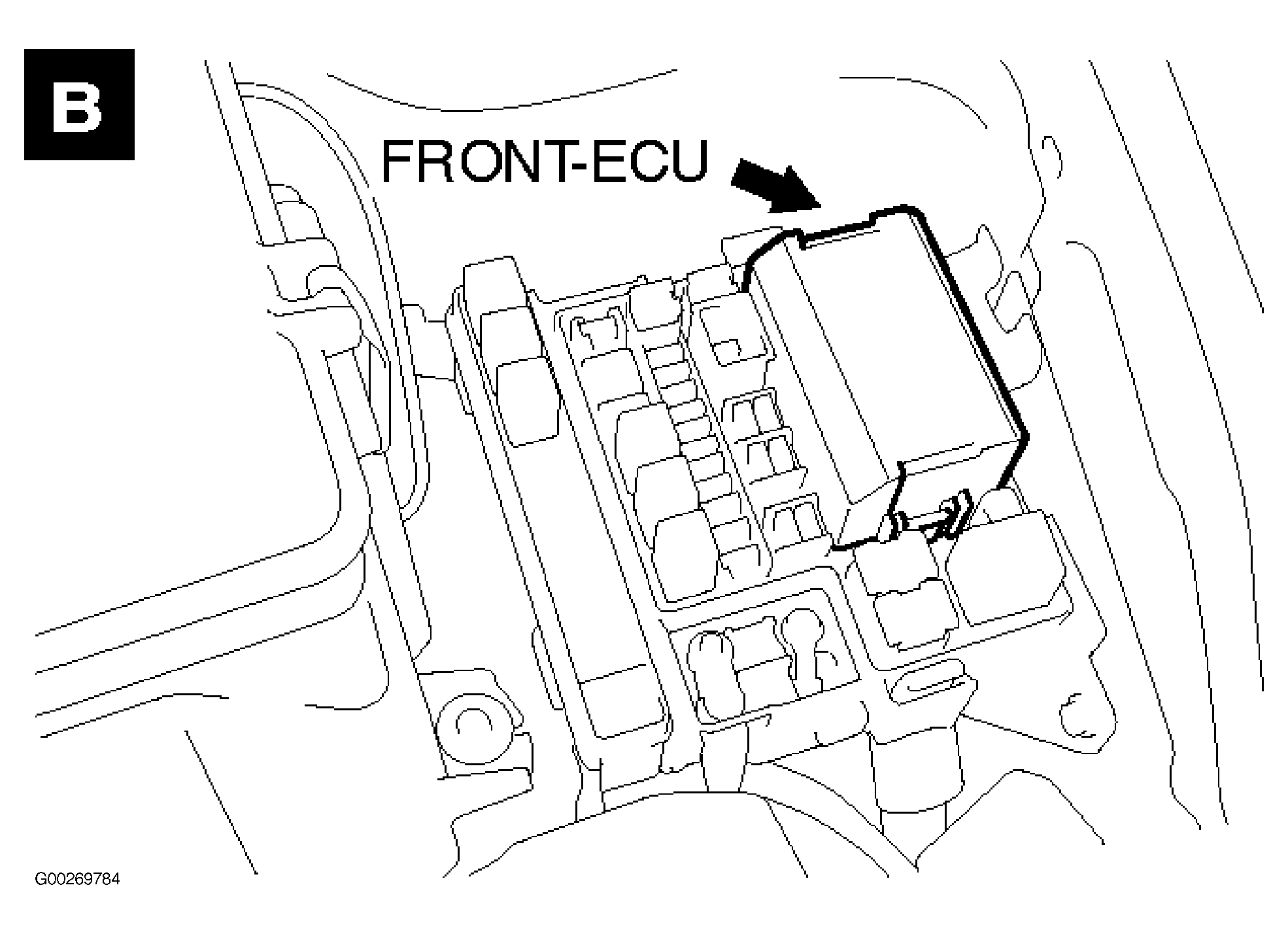

| Front-ECU | In engine compartment relay box. See Figure . |

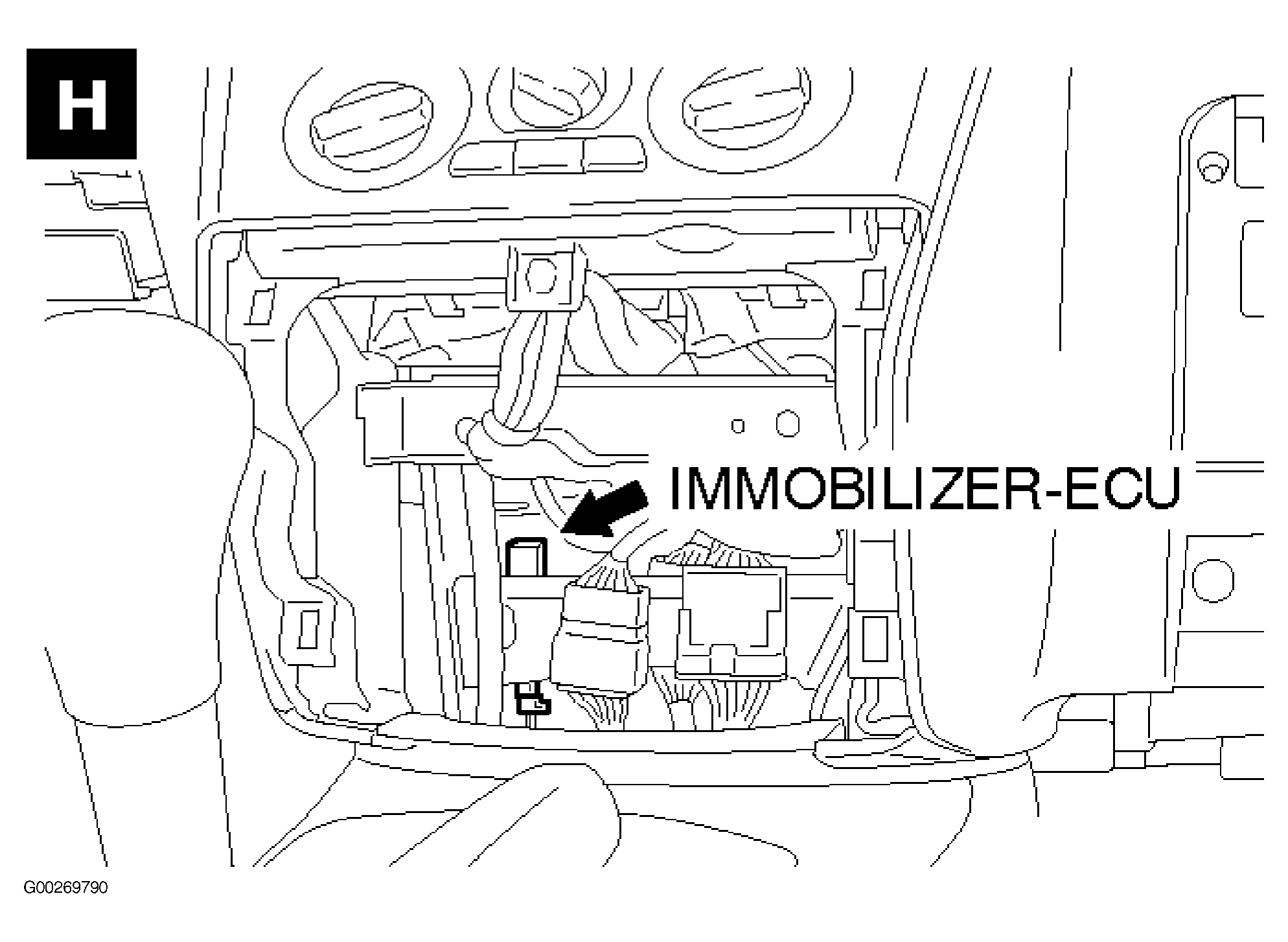

| Immobilizer-ECU | Behind lower center of dash. See Figure . |

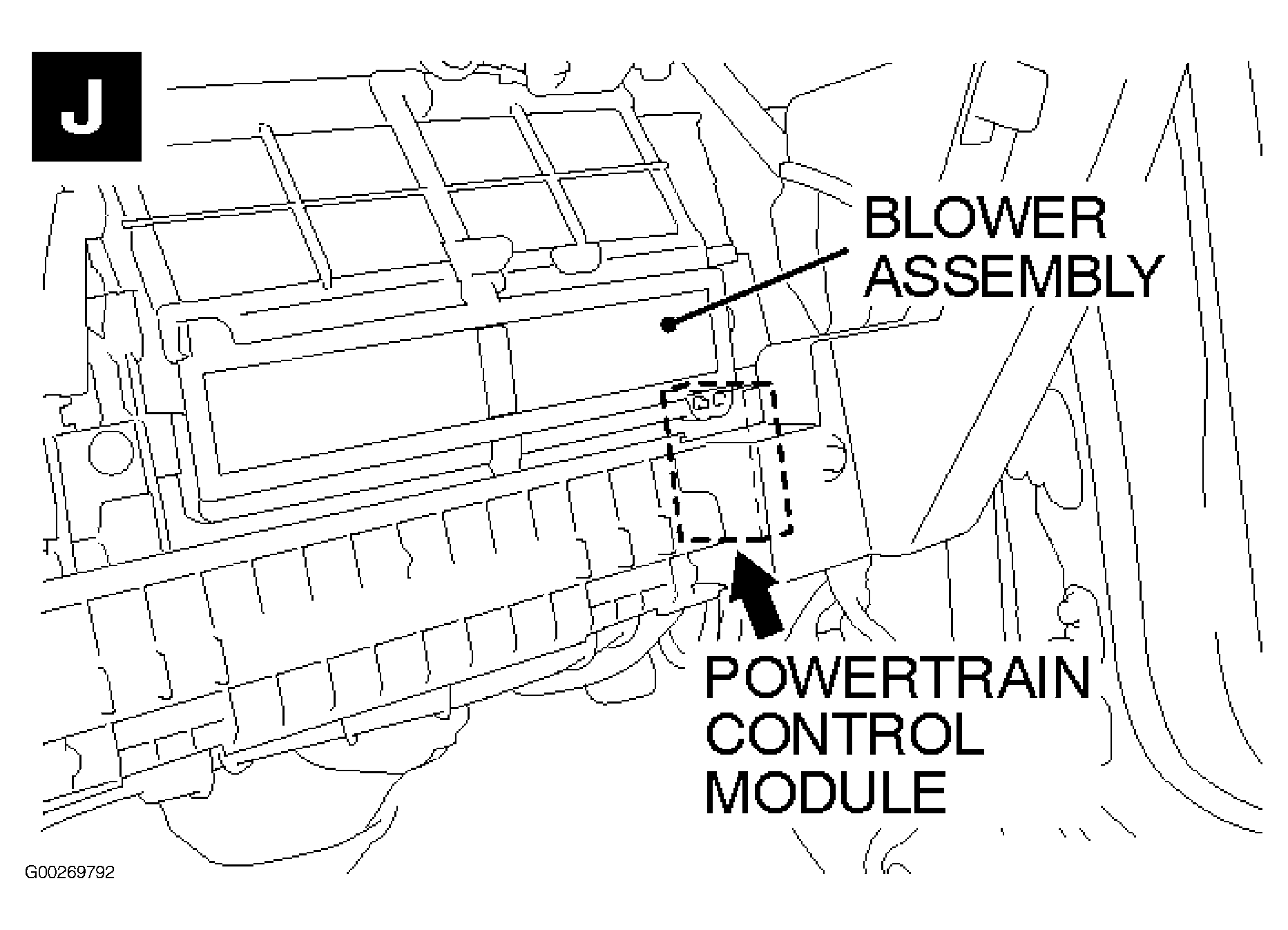

| Powertrain Control Module | Behind glove box. See Figure . |

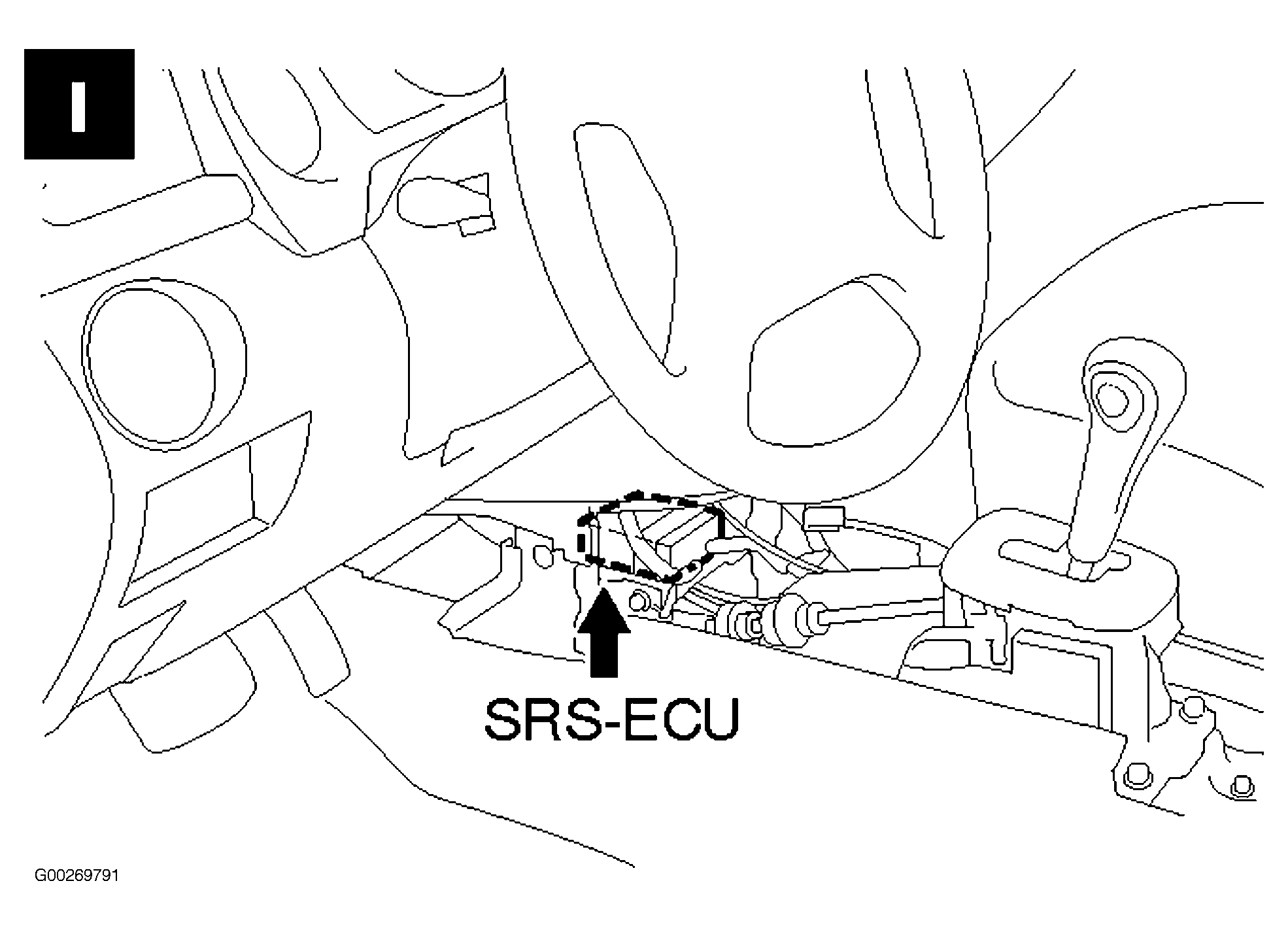

| SRS-ECU | Behind lower center of dash. See Figure . |
