Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS-ECU | At right rear of engine compartment. See Figure . |
| A/C-ECU | Behind center of dash, below radio. See Figure . |
| Column-ECU | On top of steering column. See Figure . |

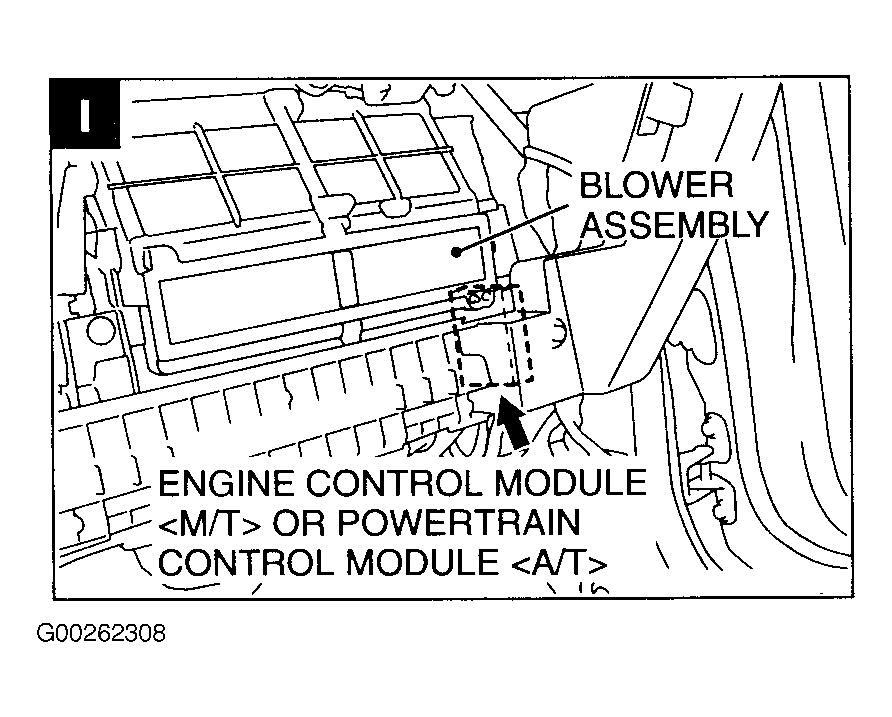

| Engine Control Module (M/T) | Behind glove box. See Figure . |
| ETACS-ECU | On rear of junction block, behind left side of dash. See Figure . |

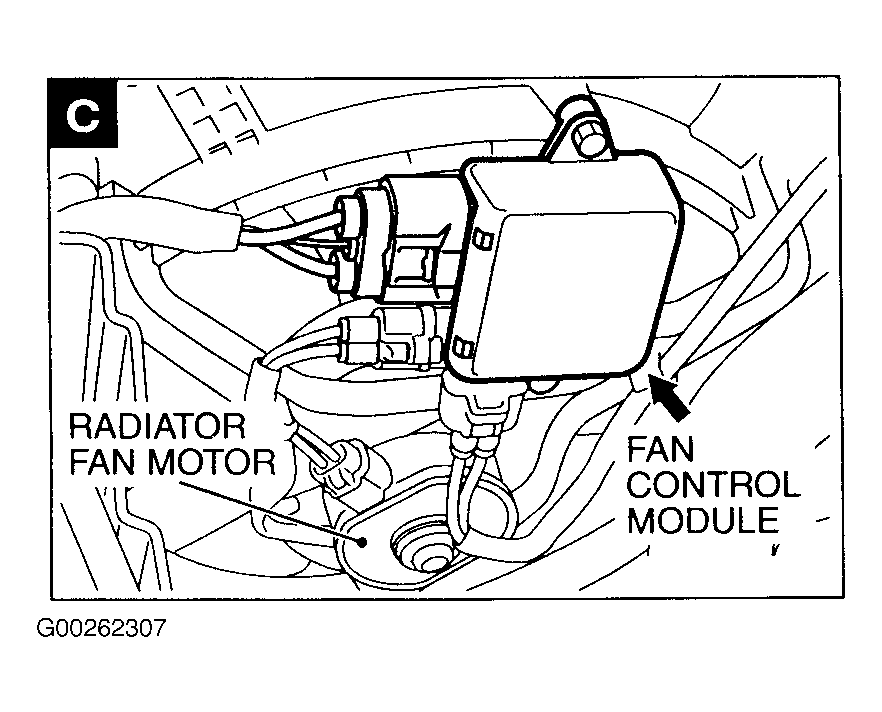

| Fan Control Module | On fan shroud, at left front of engine compartment.Figure . |
| Front-ECU | In engine compartment relay box. See Figure . |
| Immobilizer-ECU | Behind lower center of dash. See Figure . |

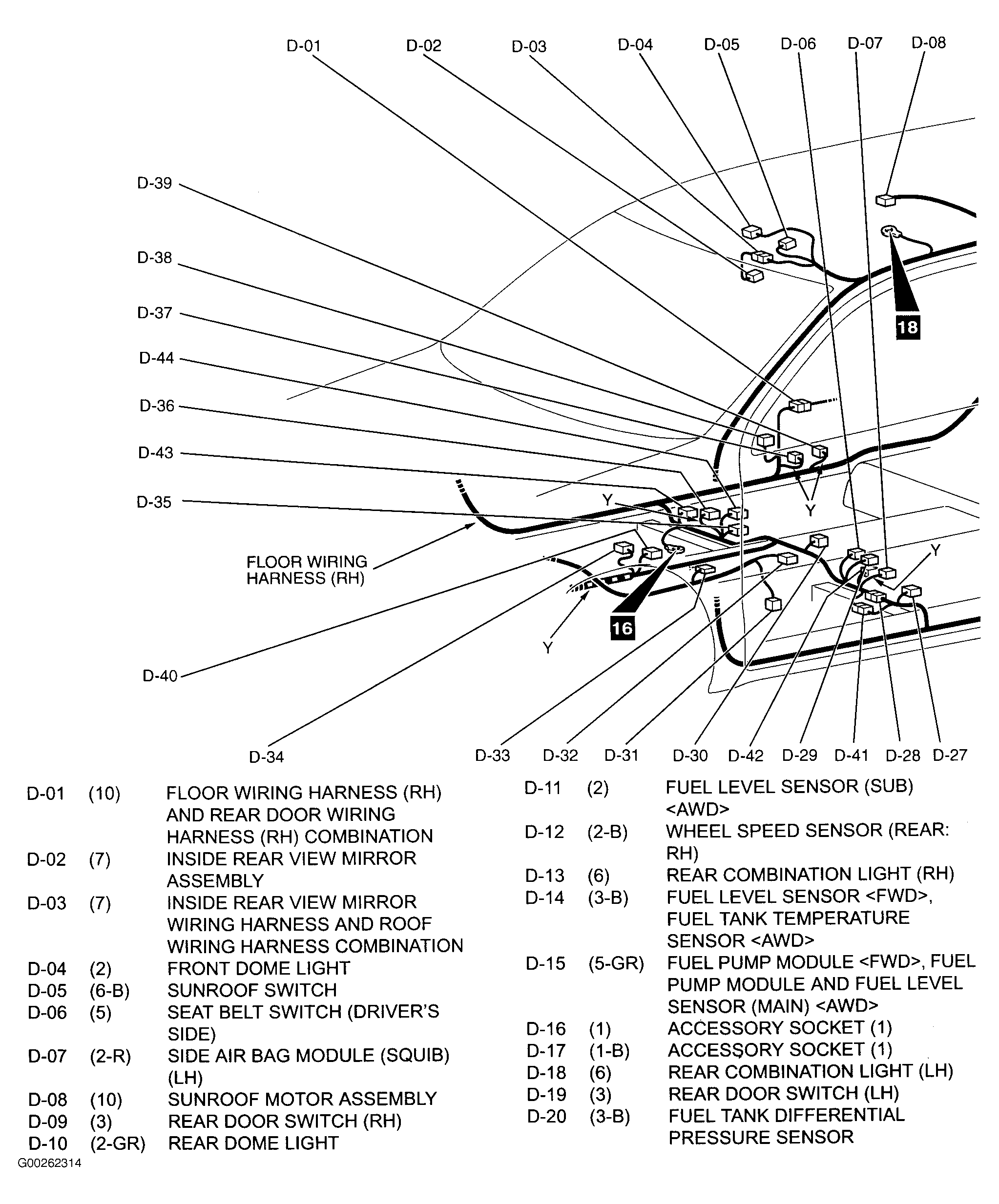

| Occupant Classification ECU (D-43) | Under right front seat. See Figure . |
| Powertrain Control Module (A/T) | Behind glove box.Figure . |
| SRS-ECU | Behind lower center of dash. See Figure . |
