Diagnosis Service Function: Notes

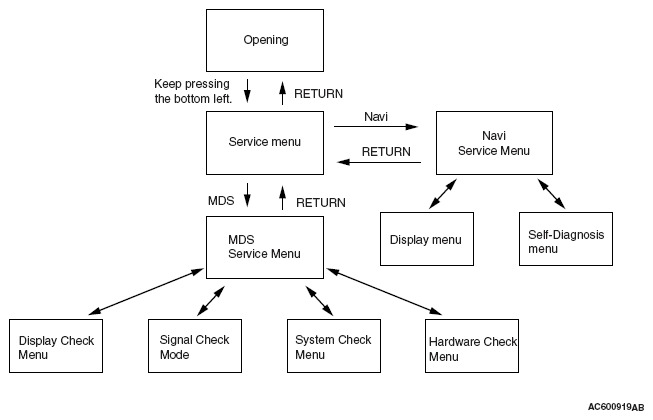

The multi-display station is equipped with the functions below as the diagnosis service function.

Function			Contents
Service function	Image check menu mode	Color bar	Performs the each image check.
		Gray scale
		White window
		Navi
		Red
		Green
		Blue
		White
		Black
	Vehicle signal check mode		Displays the current vehicle status.
	System check menu	Connection check	Displays the connection status for units and sensors.
		Version check	Displays the version information of each unit.
		Memory initialization	Initialization of microcomputer RAM, EEPROM
	Hardware check menu	Touch switch check	Touch switch check
		Sound check	Sound output check
		Self-test	RTC (Real Time Clock: Clock IC), EEPROM check
