Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

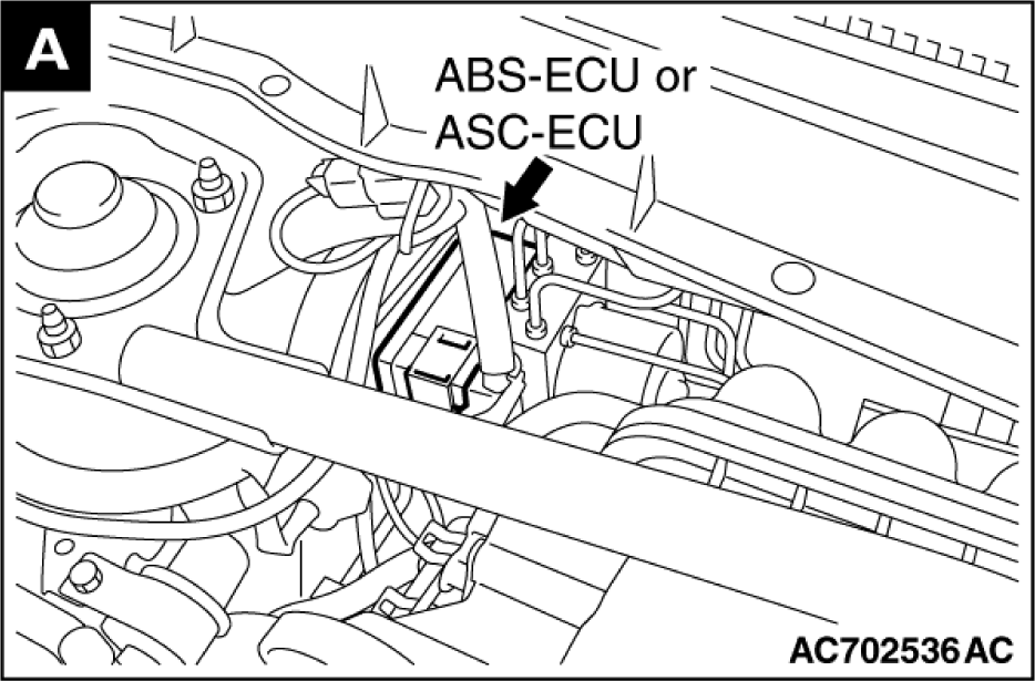

| ABS - ECU Or ASC-ECU | Right rear of engine compartment. See Figure. |
| A/C - ECU | Behind right side of dash. See Figure. |
| AWD - ECU | Behind left side of dash. See Figure. |
| Column - ECU | Top of steering column. See Figure. |
| CPU (Combination Meter) | Behind instrument cluster. See Figure. |
| CPU (Power Window Main Switch) | In driver's door power window main switch assembly. See Figure. |
| Discharge ECU (Left/Right Headlight Assembly) | Behind respective headlight assembly. See Figure. |

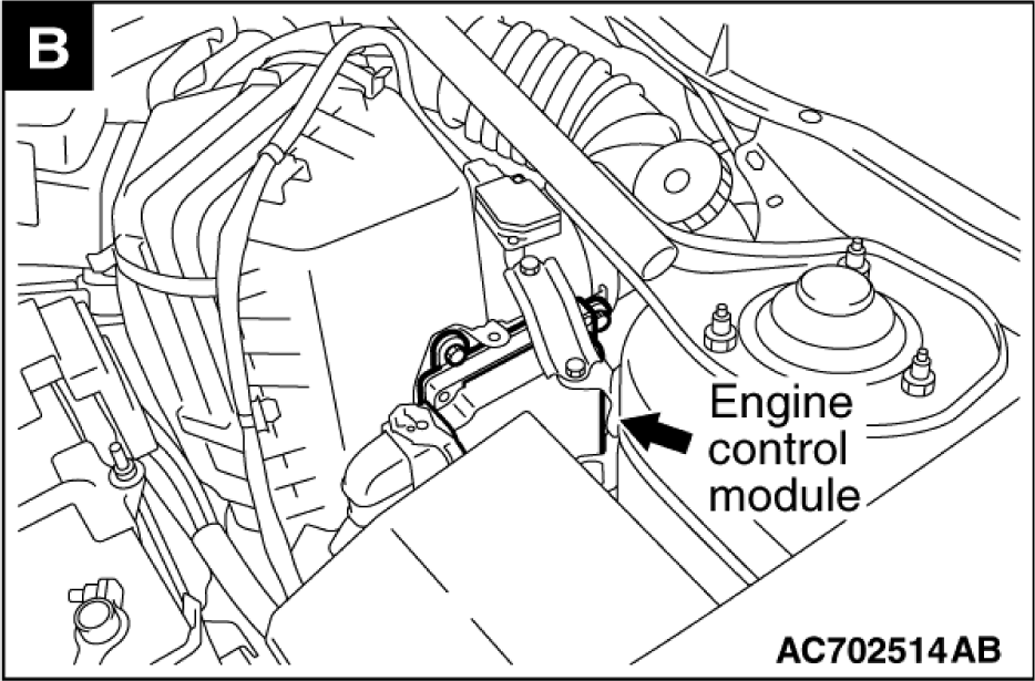

| Engine Control Module | Left rear corner of engine compartment. See Figure. |

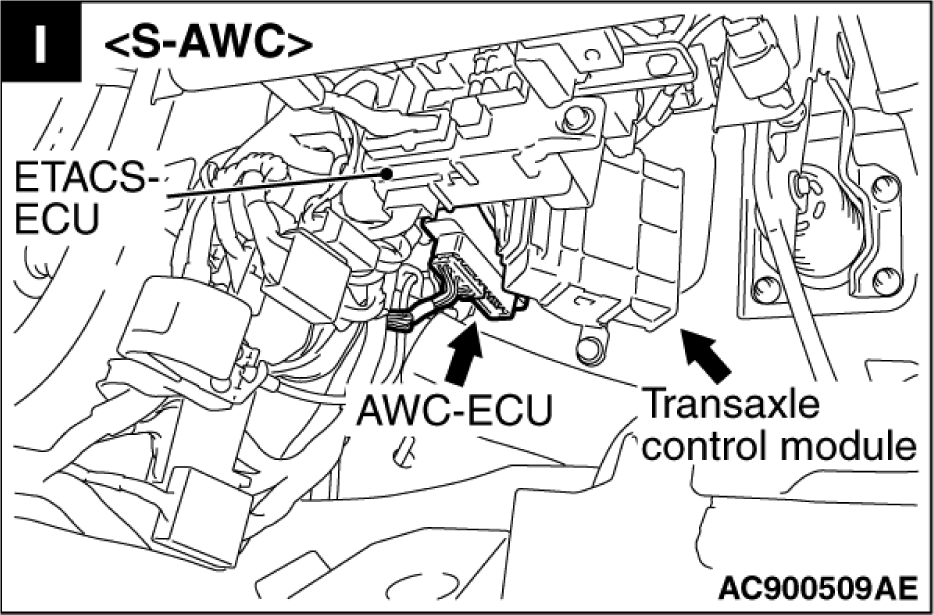

| ETACS - ECU | Behind left side of dash. See Figure. |
| ETACS-ECU | Left side of dash. See Figure. |
| Hands Free Module | Behind center of dash. See Figure. |
| KOS - ECU | Behind left side of dash. See Figure. |
| Occupant Classification - ECU | Under front passenger's seat. See Figure. |
| Receiver Antenna Module | Near ignition switch. See Figure. |
| SRS - ECU | Behind lower center of dash. See Figure. |
| Sunroof - ECU | Front center of roof. See Figure. |
| Transaxle Control Module | Behind left side of dash. See Figure. |
| Wireless Control Module | Near ignition switch. See Figure. |
