Removal & Installation
WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

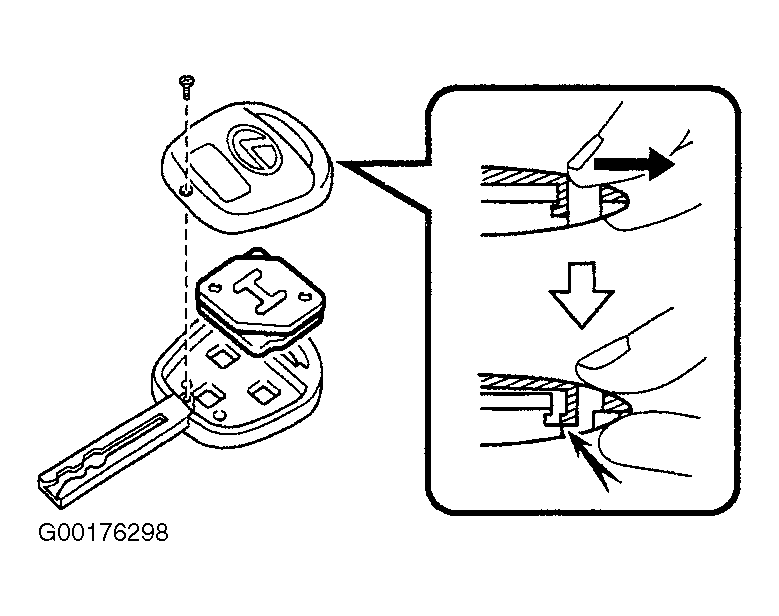

- Using a screwdriver, remove the screw and cover. Push the cover with a finger as shown in the illustration, so that there becomes clearance, then pry out the cover from that clearance. See Fig 1.
- For installation, reverse removal procedure.
- After installation, register recognition code. See RECOGNITION CODE REGISTRATION under PROGRAMMING.
CAUTION:
Special caution should be taken for handling each component as they are precise electronic components.
CAUTION:
Do not pry out the cover forcibly.
