Component Locations

COMPONENT LOCATIONS

Component	Location
Left Hand I/P Wiring Harness Junction Block	Left Hand Side Of I/P. See Fig 1 .
Left Hand Mirror Motor	Left Front Door. See Fig 2 .
Power Mirror Switch	Left Front Door. See Fig 2 .
RH Mirror Motor	Right Front Door. See Fig 3 .
C500 (18 Cavities)	Left Front Corner Of Passenger Compartment. See Fig 2 .
C501 (18 Cavities)	Left Front Corner Of Passenger Compartment. See Fig 2 .
C600 (18 Cavities)	Right Front Corner Of Passenger Compartment. See Fig 3 .
G301	Left Side Of Passenger Compartment. See Fig 4 .

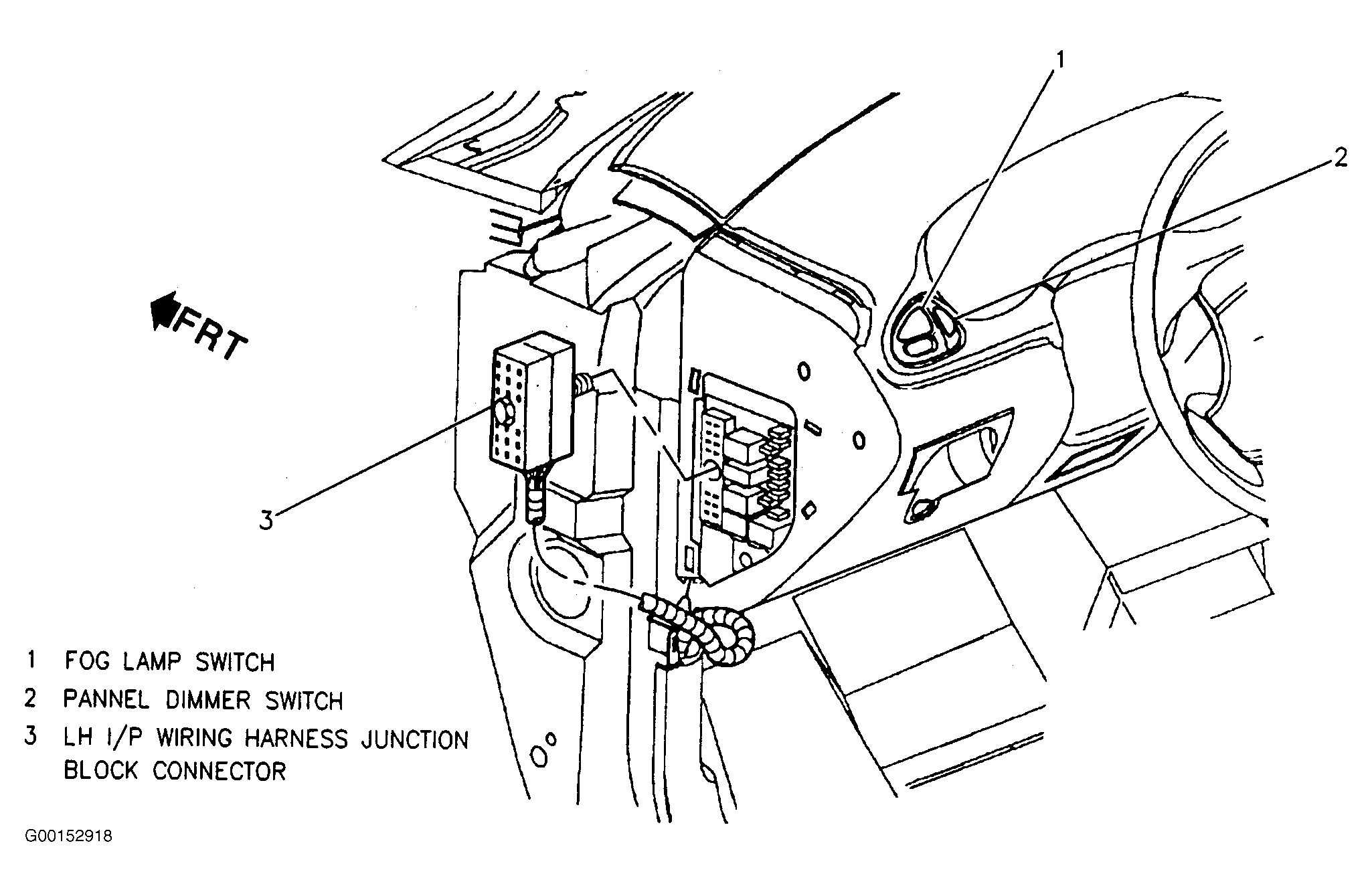

Fig 1: Wiring Harness Junction Block

Courtesy of GENERAL MOTORS CORP.

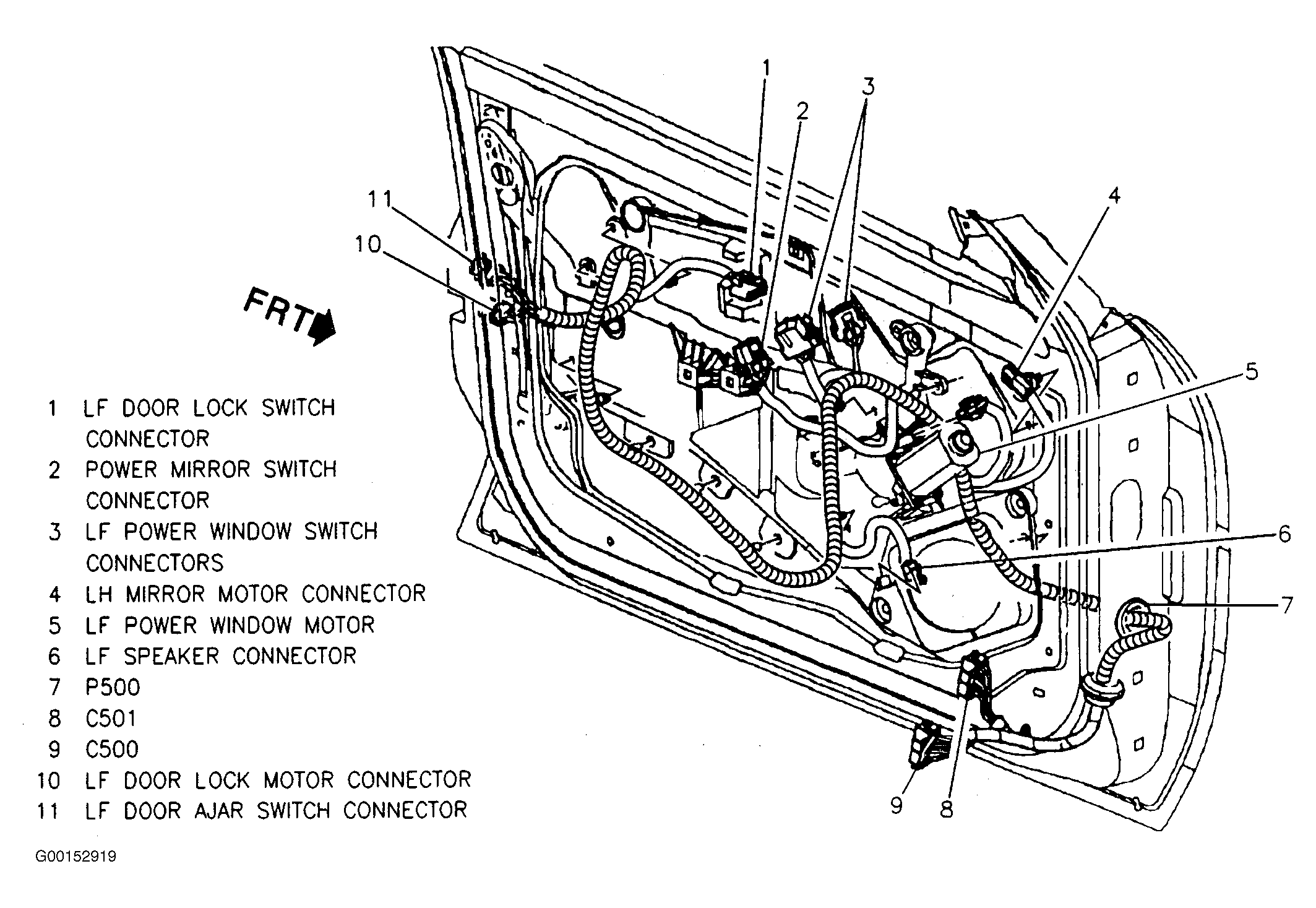

Fig 2: Left Front Door Wiring Harness Routing - Mirror Switch, Mirror Motor, & Connectors C500 & C501

Courtesy of GENERAL MOTORS CORP.

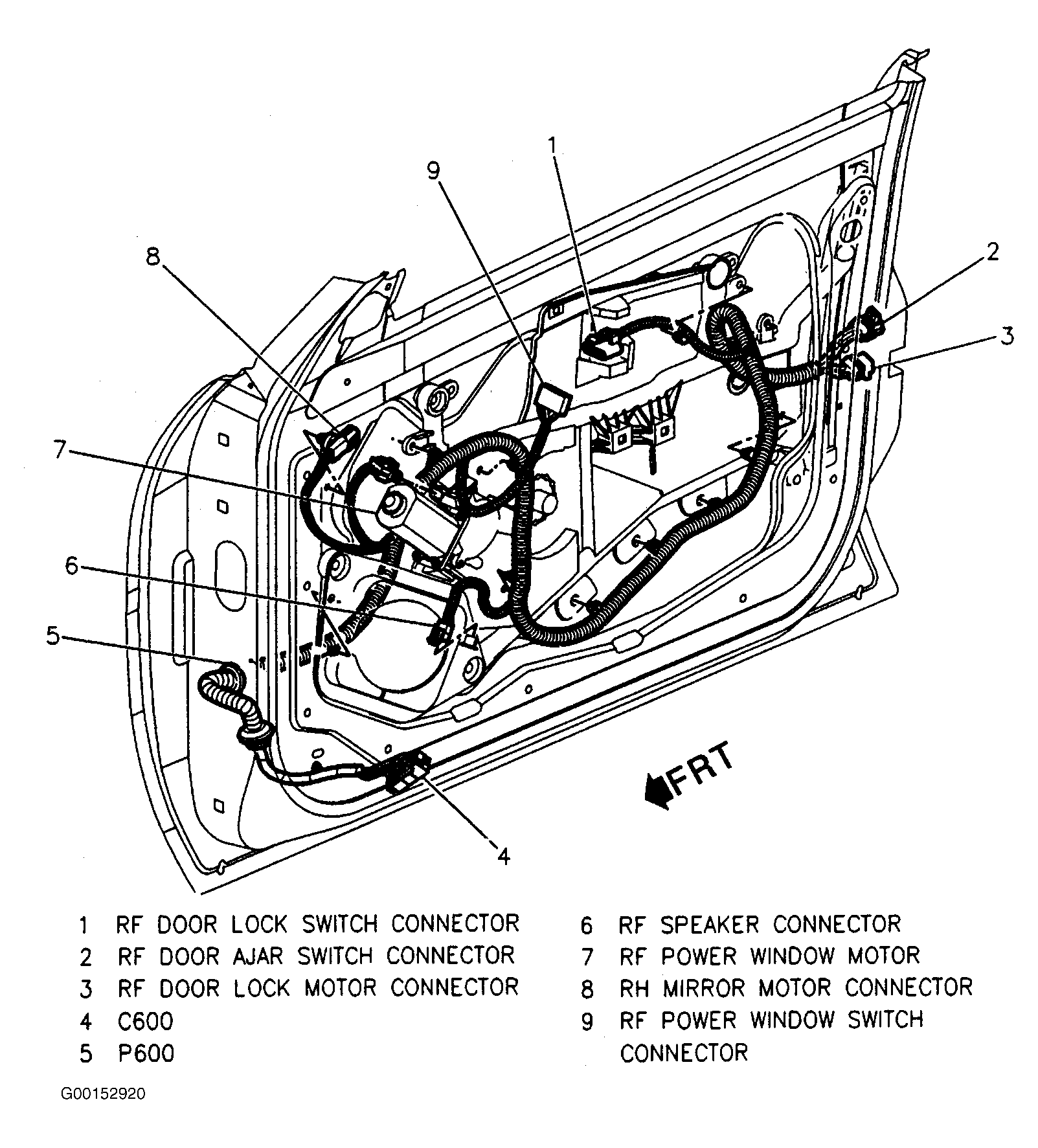

Fig 3: Right Front Door Wiring Harness Routing - Mirror Motor & Connector C600

Courtesy of GENERAL MOTORS CORP.

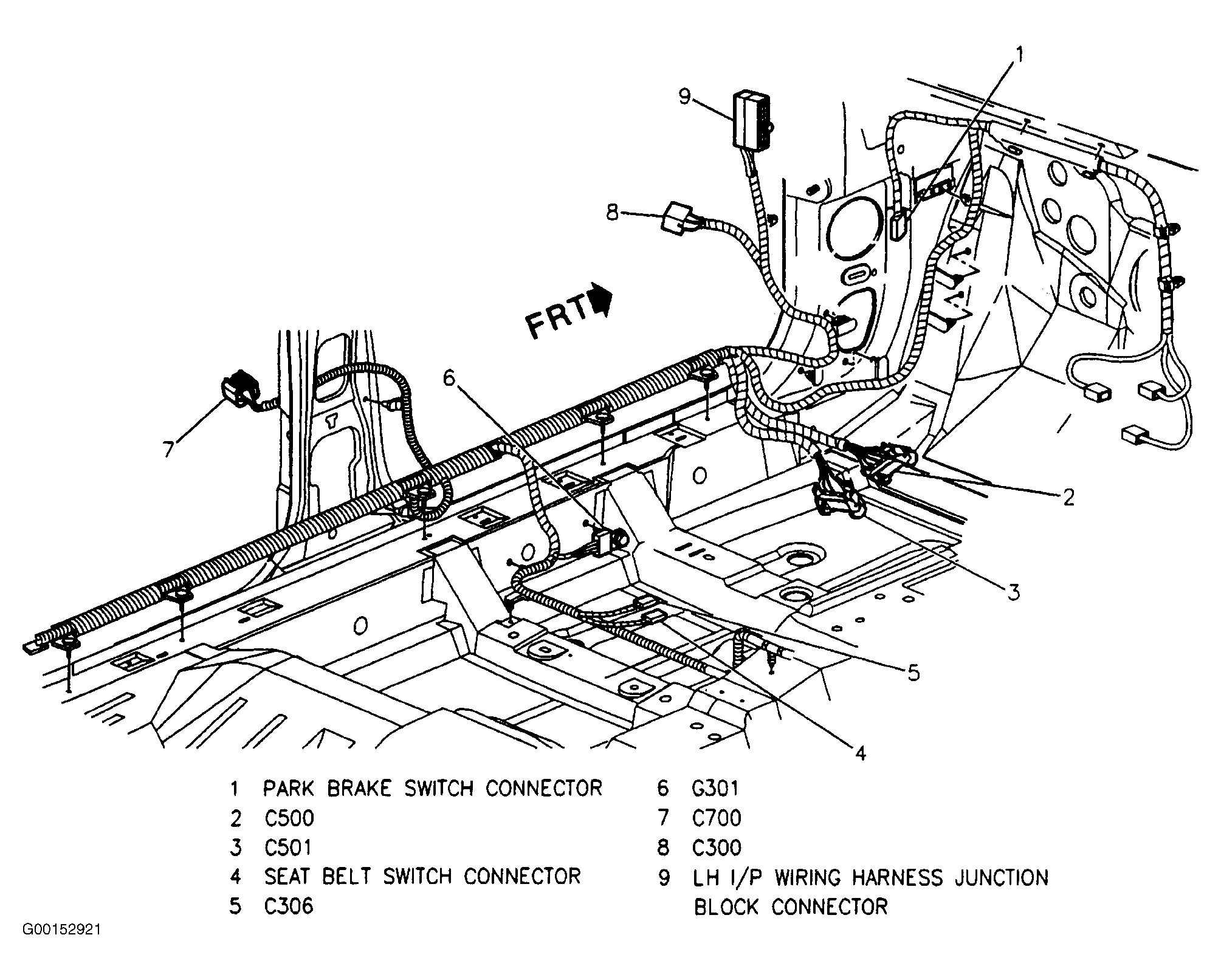

Fig 4: Left Side Of Passenger Compartment Wiring Harness Routing - Ground G301

Courtesy of GENERAL MOTORS CORP.
