Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Fusible Link (2.4L) Near starter. See Figure.
Fusible Link (3.1L) Near starter. See Figure.

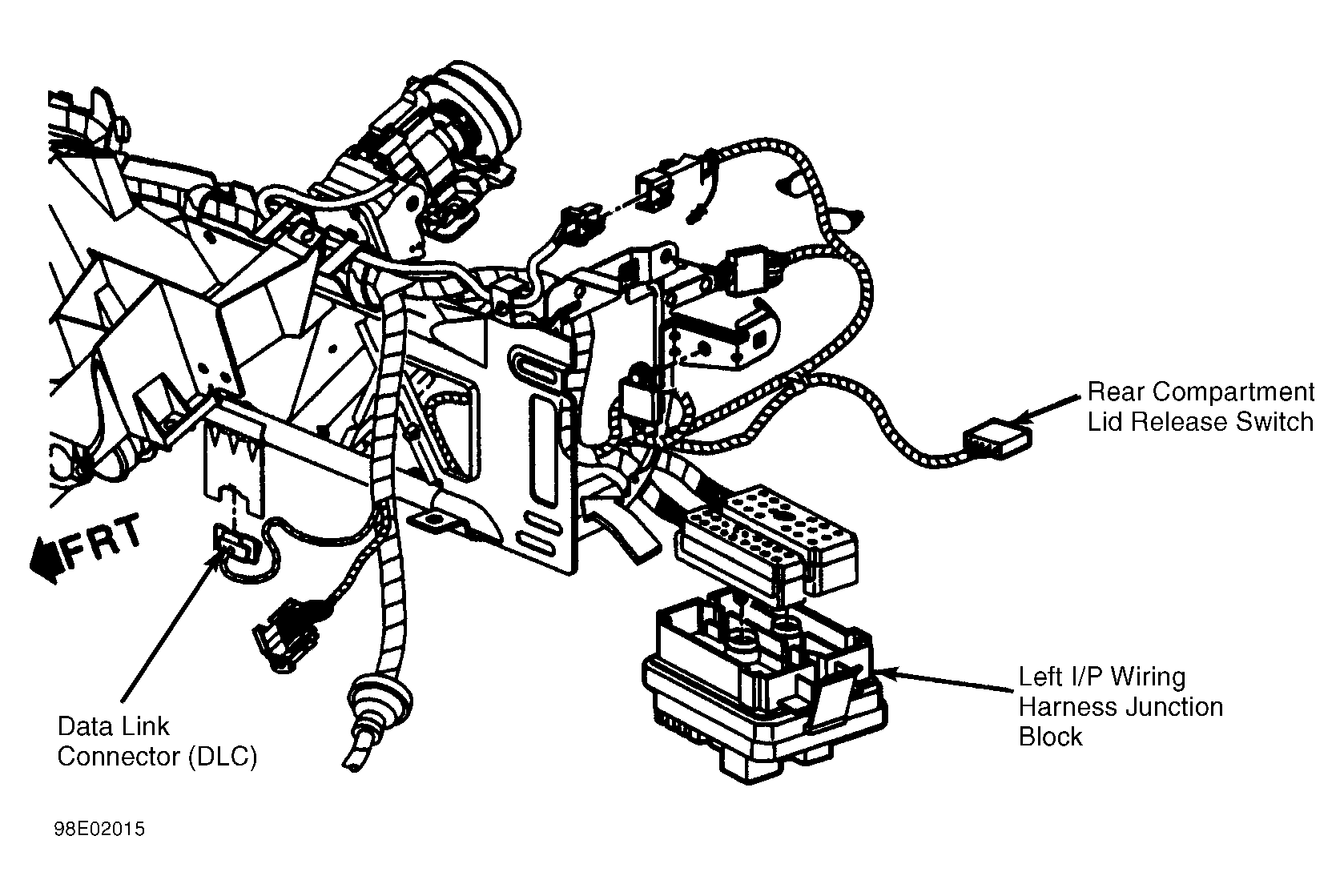

Left I/P Wiring Harness Junction Block On left side of dash. See Figure.
Right I/P Wiring Harness Junction Block On right side of dash. See Figure.
Underhood Wiring Harness Junction Block On left side of engine compartment.
