Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| ABS Diode (6000 STE) | Behind right side of instrument panel, taped to wiring harness. | |

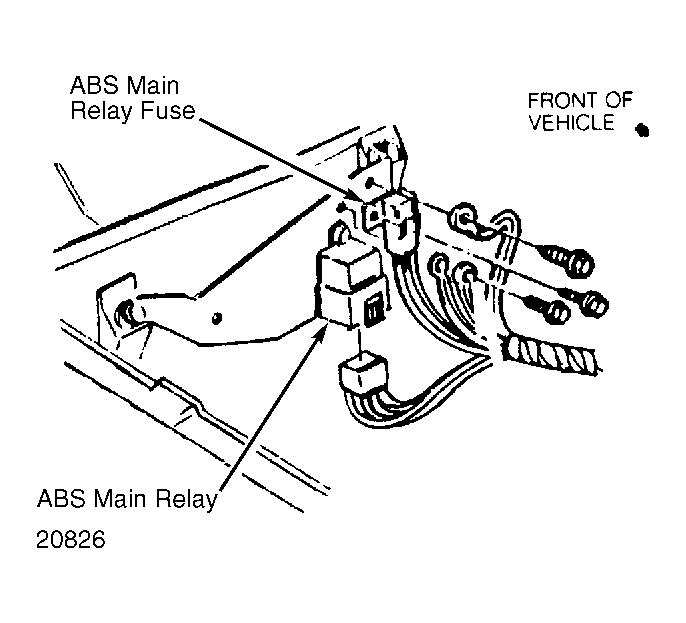

| ABS Main Relay Fuse (6000 STE) | On right side of engine cowl, on bracket next to ABS main relay. See Figure. | |
| ABS Pump Motor Fuse (6000 STE) | In engine wiring harness, near left shock tower. | |
| A/C Compressor Diode | In compressor wiring connector. | |
| A/C-Heater Blower Resistors | On right side of engine cowl. | |
| ALCL Connector | On bottom of instrument panel, near steering column. | |

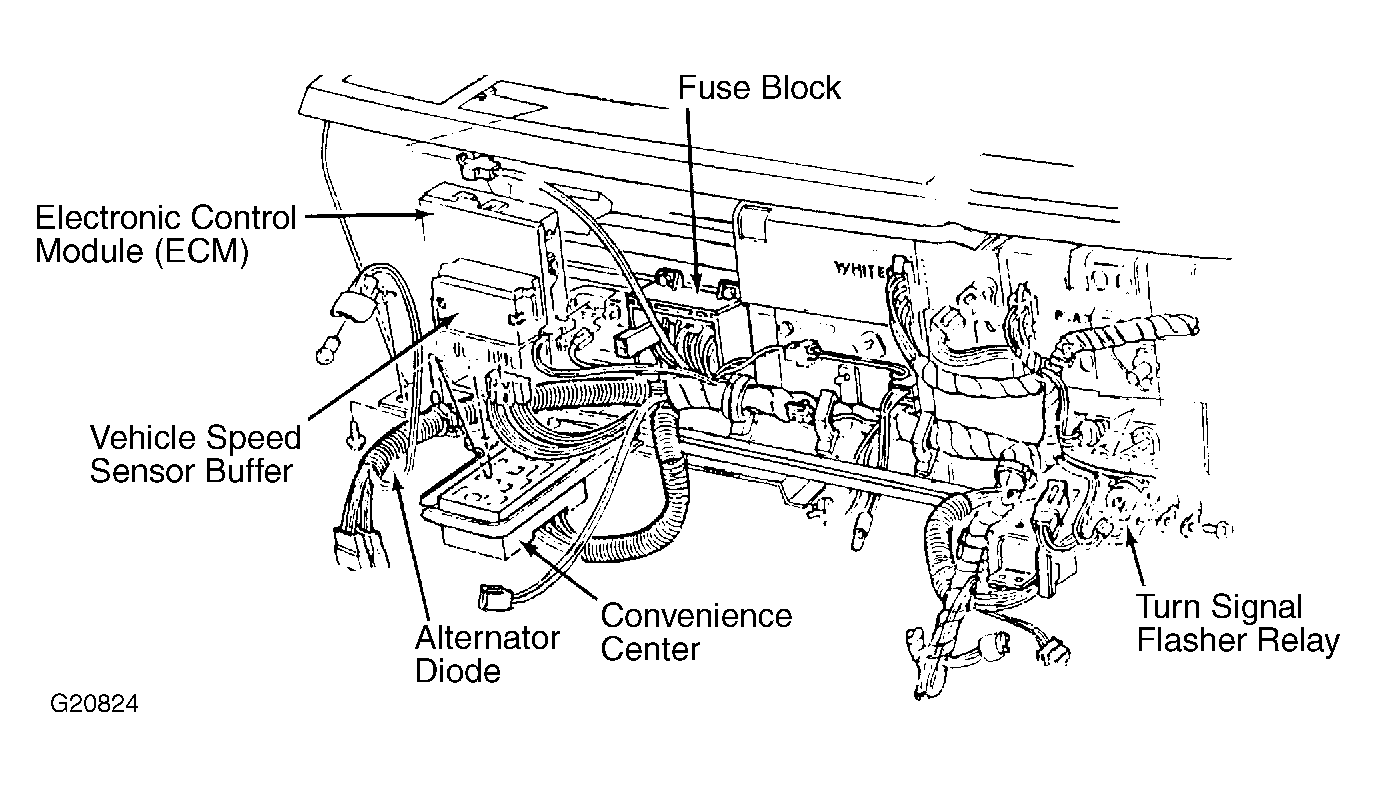

| Convenience Center (Except Century) | Behind right side of instrument panel, behind glove box. See Figure. | |
| Convenience Center (Century) | To left of steering column, behind instrument panel. | |
| Cooling Fan In-Line Fuse | In engine compartment, on front of left shock tower. | |
| Cooling Fan Relay Diode (3.8L) | In harness near constant run relay. | |
| Direct Ignition System (DIS) (VIN W) | Lower front of engine, above oil filter. | |
| Fuel Pump In-Line Fuse (Except 6000) | In engine compartment, on front of left shock tower. See Figure. | |

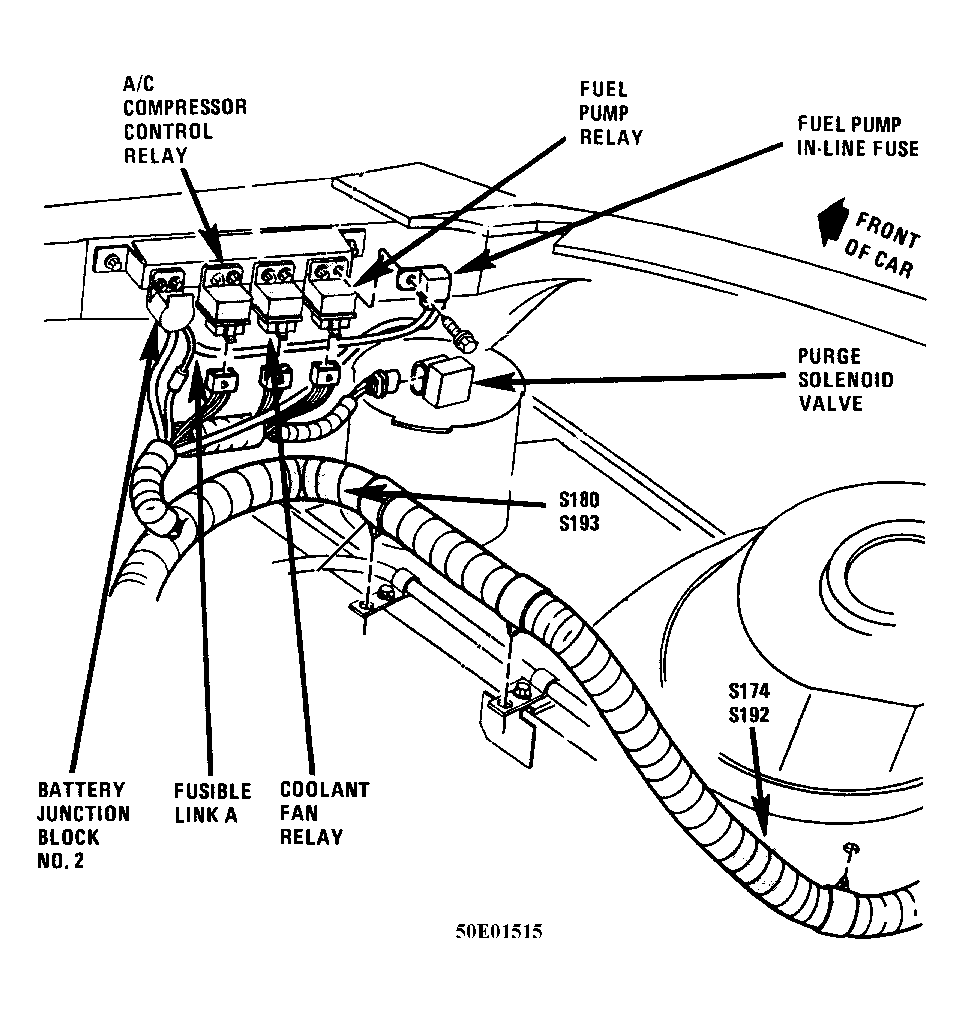

| Fuel Pump In-Line Fuse (6000) | Right front corner of engine compartment. See Figure. | |
| Fuel Pump Prime Connector (2.5L) | In front of transaxle, clipped to harness. | |
| Fuel Pump Prime Connector (2.8L) | In wiring harness, near fuel pump relay. | |
| Fuel Pump Prime Connector (3.8L) | In wiring harness below manifold air temperature (MAT) sensor. | |
| Fuse Block | Behind right side of instrument panel, behind glove box. See Figure. | |
| Fusible Links | ||
| A & C (Red) (Rust-V6) Alternator & Cooling Fan Relays | Near starter solenoid. | |
| B (Red) Fuse Block | Near starter solenoid. | |
| C (Red) Cooling Fan Relays | Near starter solenoid. | |
| F (Red) Cooling Fan Relay (2.8L) | On battery junction block on left front shock tower. | |
| G (Orange) ECM | At right front side of battery. | |
| J (Blue) Charging System (2.5L) | Near starter solenoid. | |
| J (Blue) Charging System (V6) | Near left shock tower at battery junction block. | |
| M (Red) (Rust-V6) Blower Relay | Near starter solenoid. | |
| P (Red) Vacuum Pump (2.8L) | On battery junction block on left front shock tower. See Figure. | |
| R (Red) Ignition Switch | On battery junction block on left front shock tower. | |
| S (Red) ABS (6000 STE) | On left shock tower, near battery junction block. | |

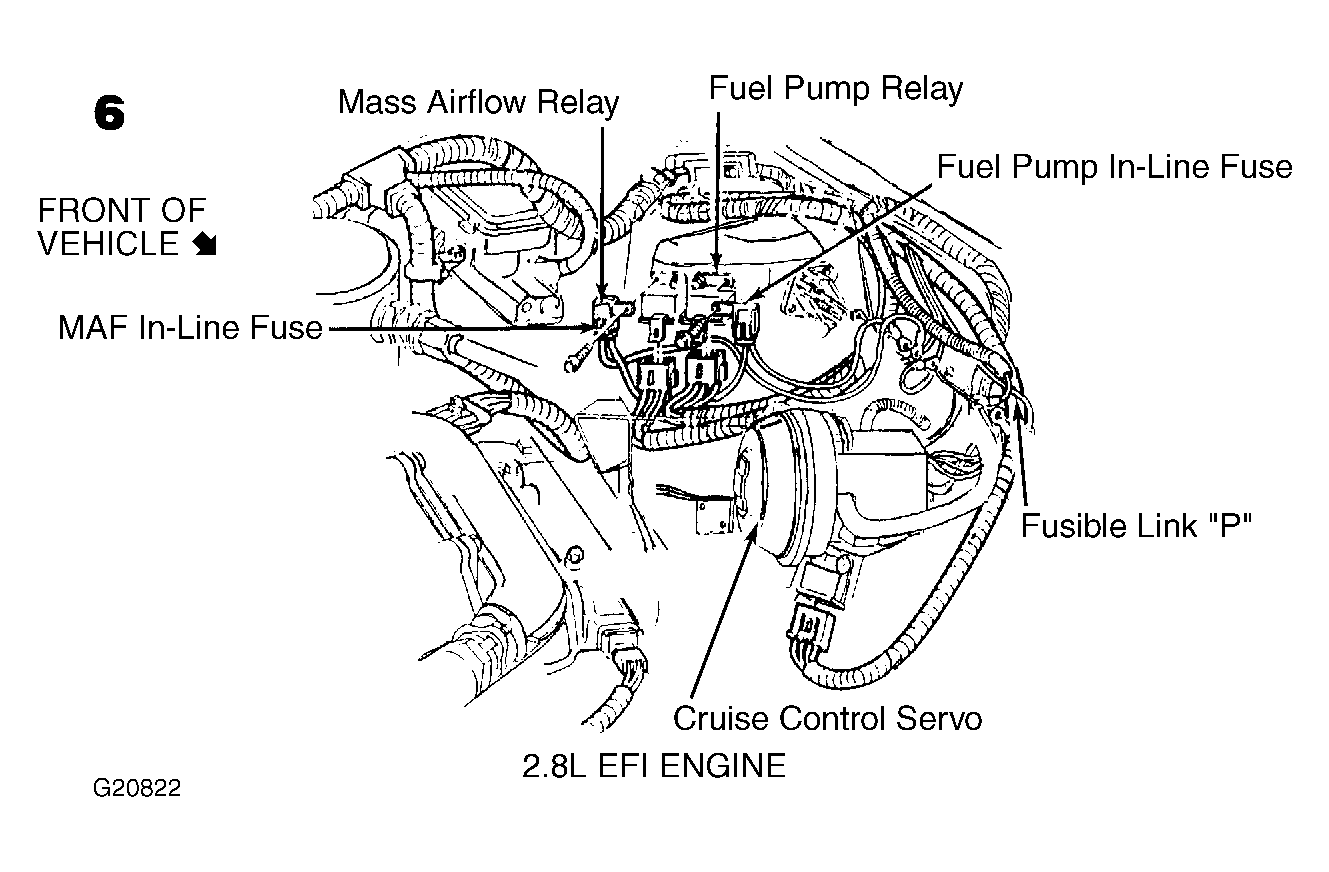

| MAF In-Line Fuse (EFI) | In engine compartment, on front of left shock tower. See Figure. | |
| Power Accessory Circuit Breaker | In fuse block. | |
| Power Window Circuit Breaker | In fuse block. | |
| Sentinel Amplifier | Behind center of instrument panel, behind ashtray. | |
| Theft Deterrent In-Line Fuses | Taped to harness under left side of instrument panel. | |
| Vehicle Speed Sensor Buffer | Behind right side of instrument panel, behind ECM. See Figure. | |
