Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

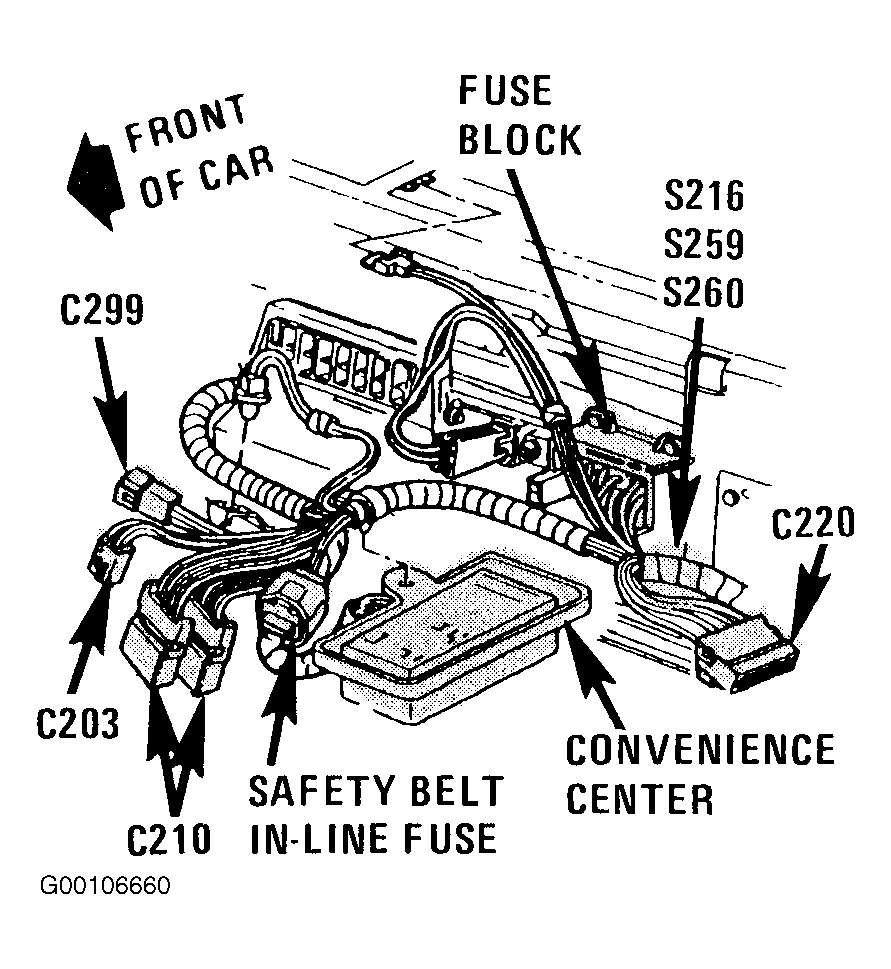

| Fuse Block | Behind Right Side Of Instrument Panel, In Glove Compartment. See Fig 1 |

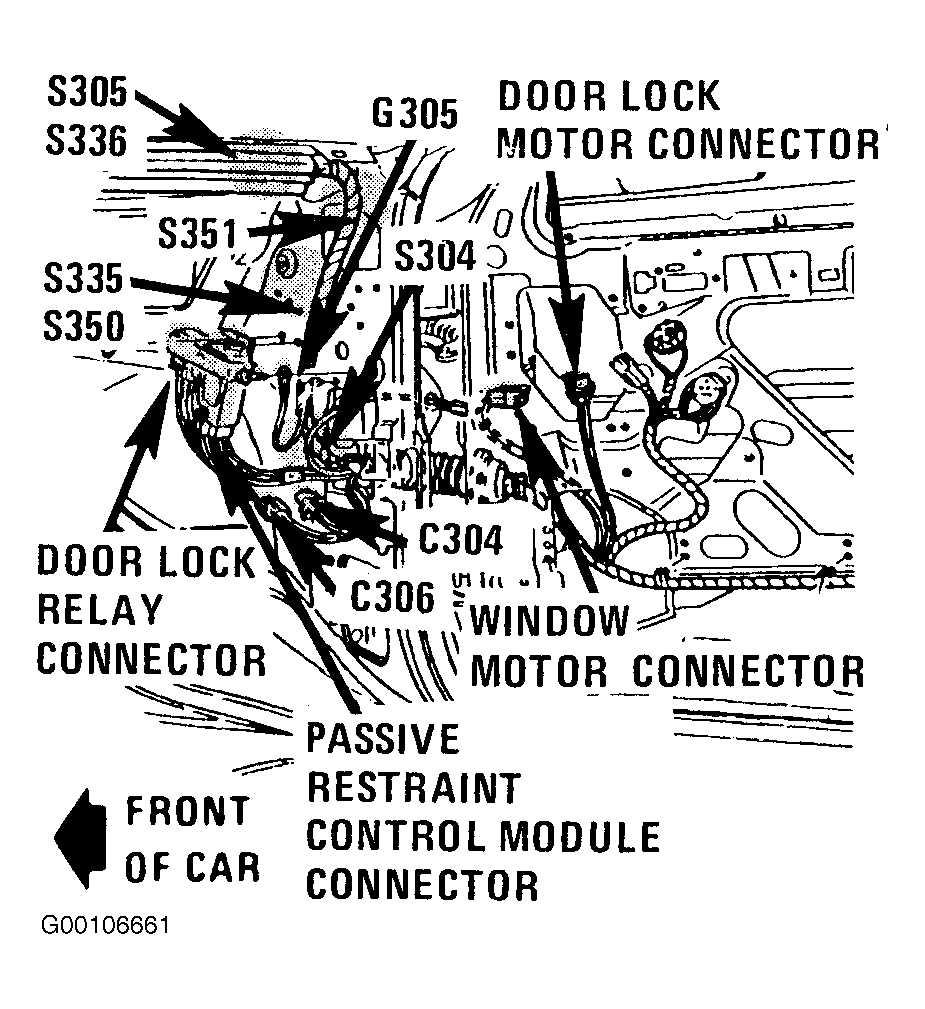

| Window Motor | In Front Of Respective Door. See Fig 2 |

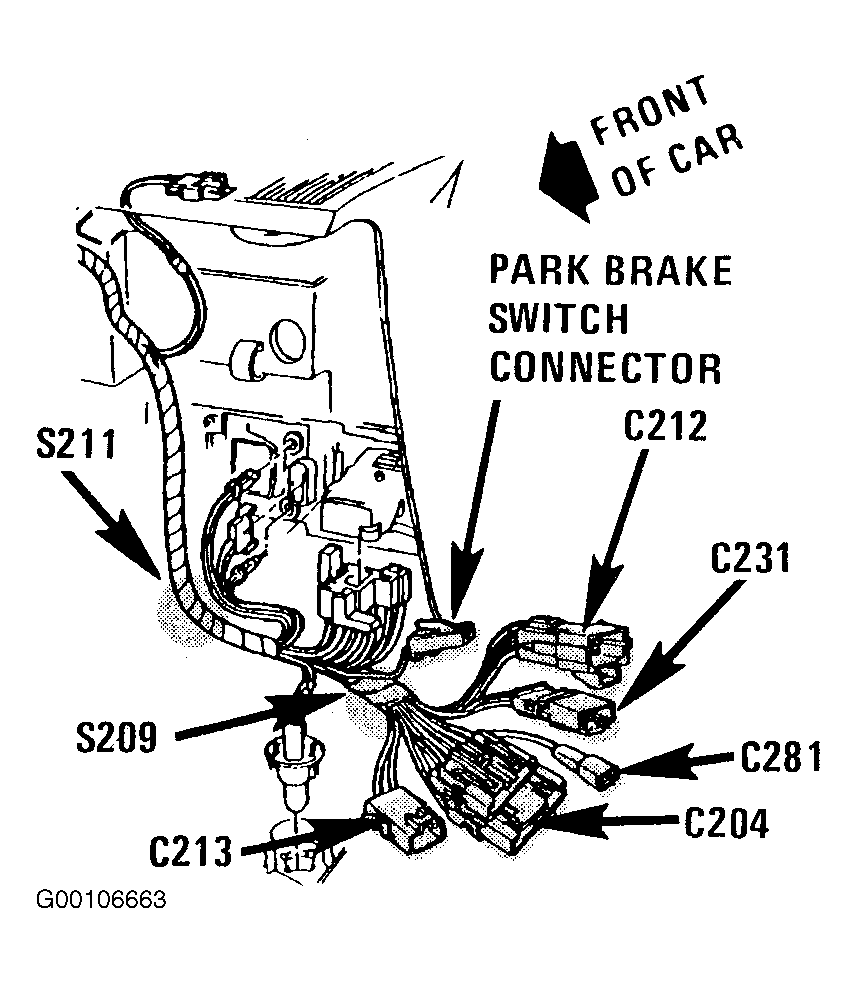

| C212 (8 Cavity) | Behind Left Side Of Instrument Panel, At Shroud. See Fig 3 |
| C304 (3 Cavity) | Right Shroud, Near Center Access Hole. See Fig 2 |

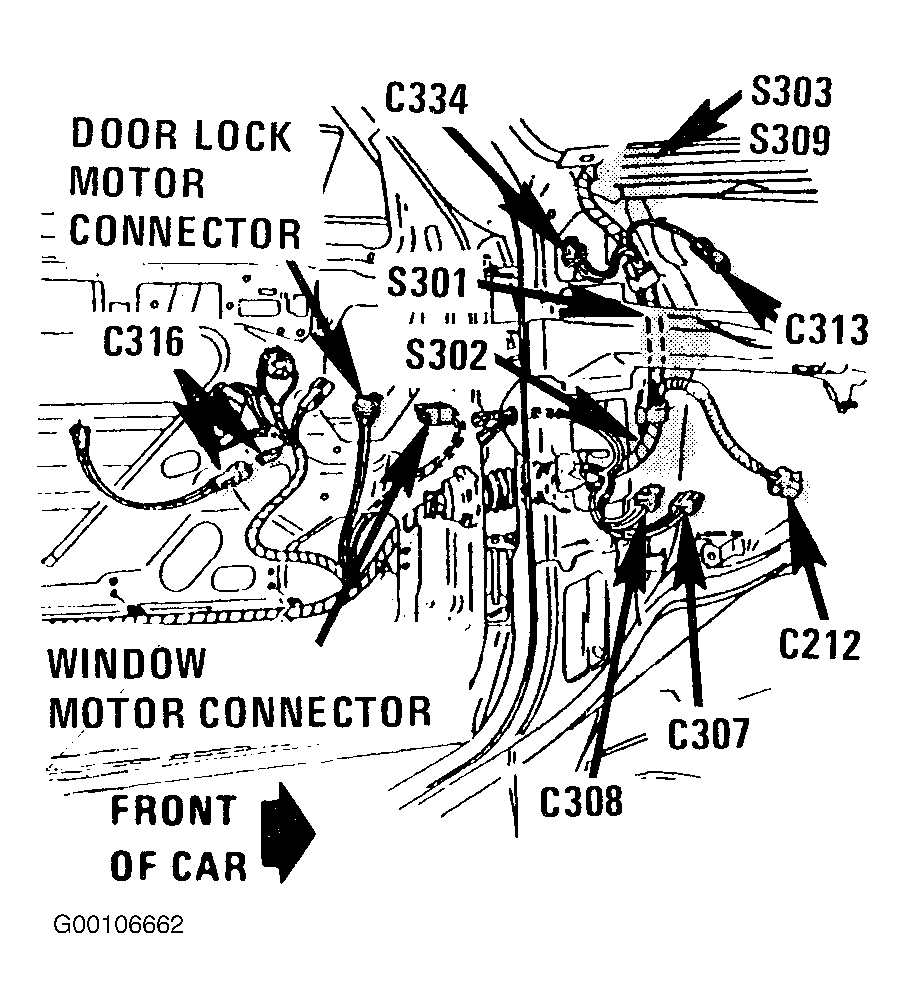

| C308 (3 Cavity) | Left Shroud, Near Center Access Hole. See Fig 4 |
| G305 | At Right Shroud, Near Center Access Hole. See Fig 2 |
| S216 | In Instrument Panel Harness, Behind Right Side Of Instrument Panel, Left Of Fuse Block. See Fig 1 |
| S302 | In Crosscar Harness, At Left Shroud, Near Center Access Hole. See Fig 4 |
| S351 | In Crosscar Harness, Behind Right Side Of Instrument Panel, Below Windshield Pillar. See Fig 2 |
