COMPONENT LOCATIONS
| Component | Location |
|---|---|

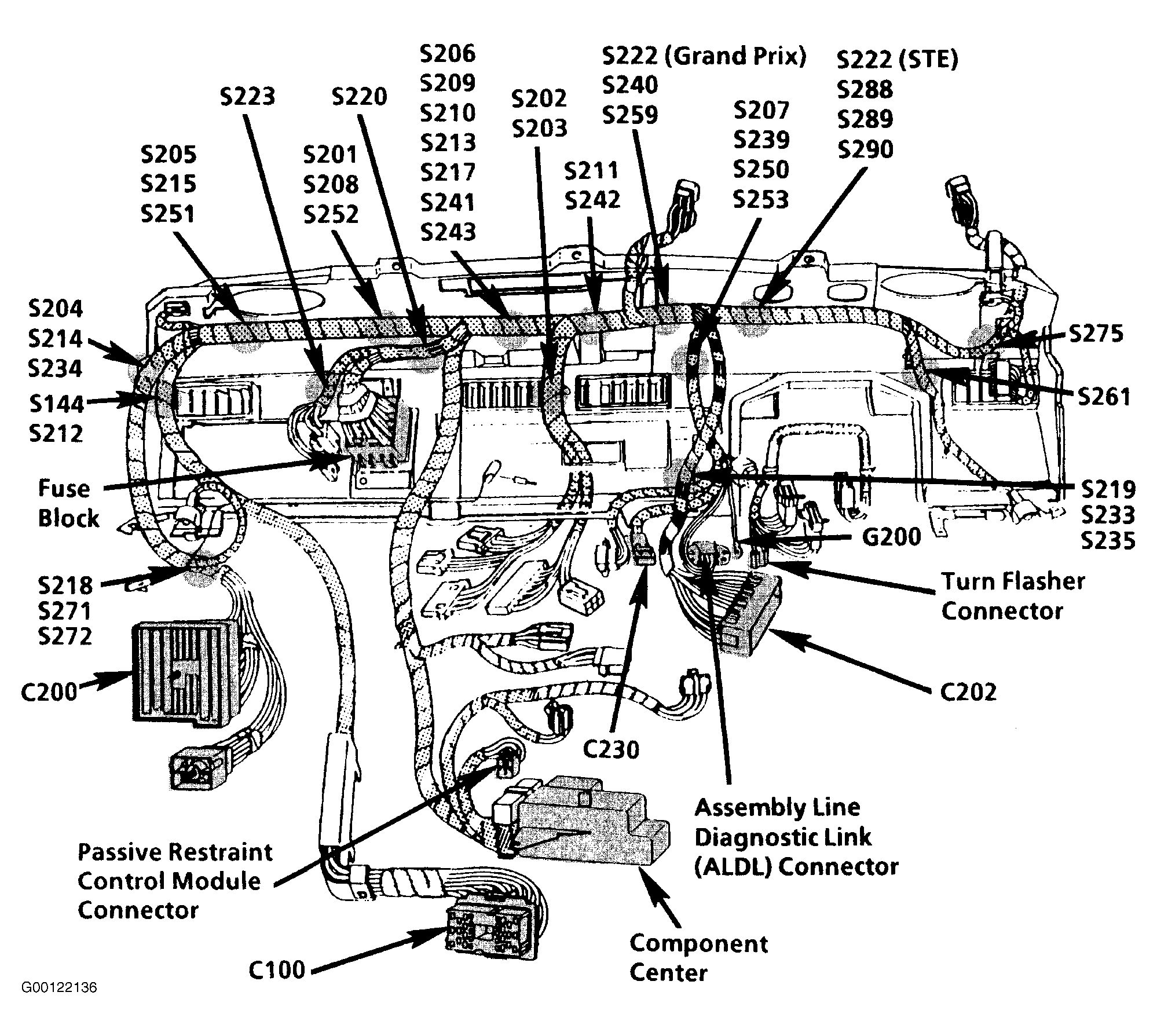

| Component Center | Behind Instrument Panel, Right Side Of Plenum. See Fig 1 . |
| Window Motor | Inside Respective Door, Behind Trim |
| C200 (106 Cavities) | Behind Right Side Of Instrument Panel. See Fig 1 . |

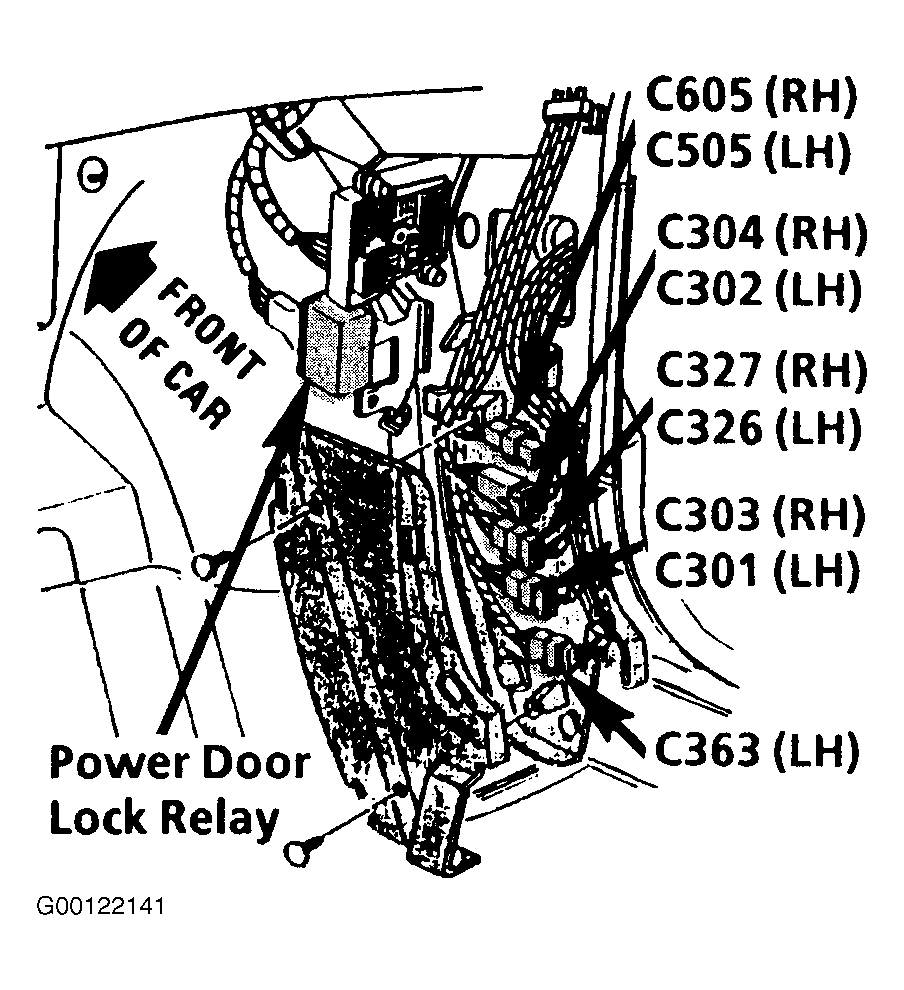

| C301 (6 Cavities) | Below Instrument Panel, At Left Shroud. See Fig 2 . |
| C303 (6 Cavities) | Below Instrument Panel, At Right Shroud. See Fig 2 . |
| C363 (6 Cavities) | Below Instrument Panel, At Left Shroud. See Fig 2 . |
| C700 (6 Cavities) | At Left Door Pillar |
| C800 (6 Cavities) | At Right Door Pillar |

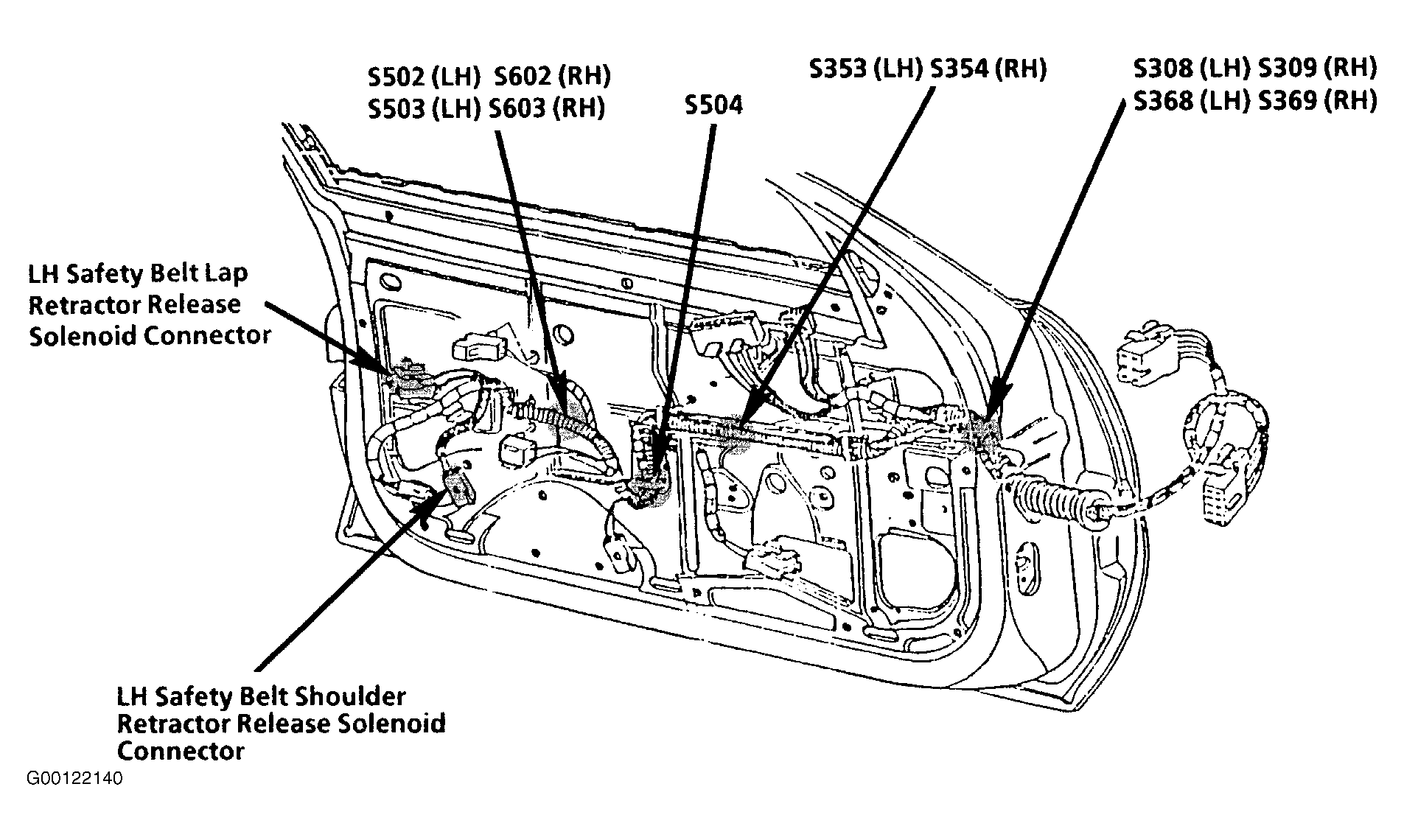

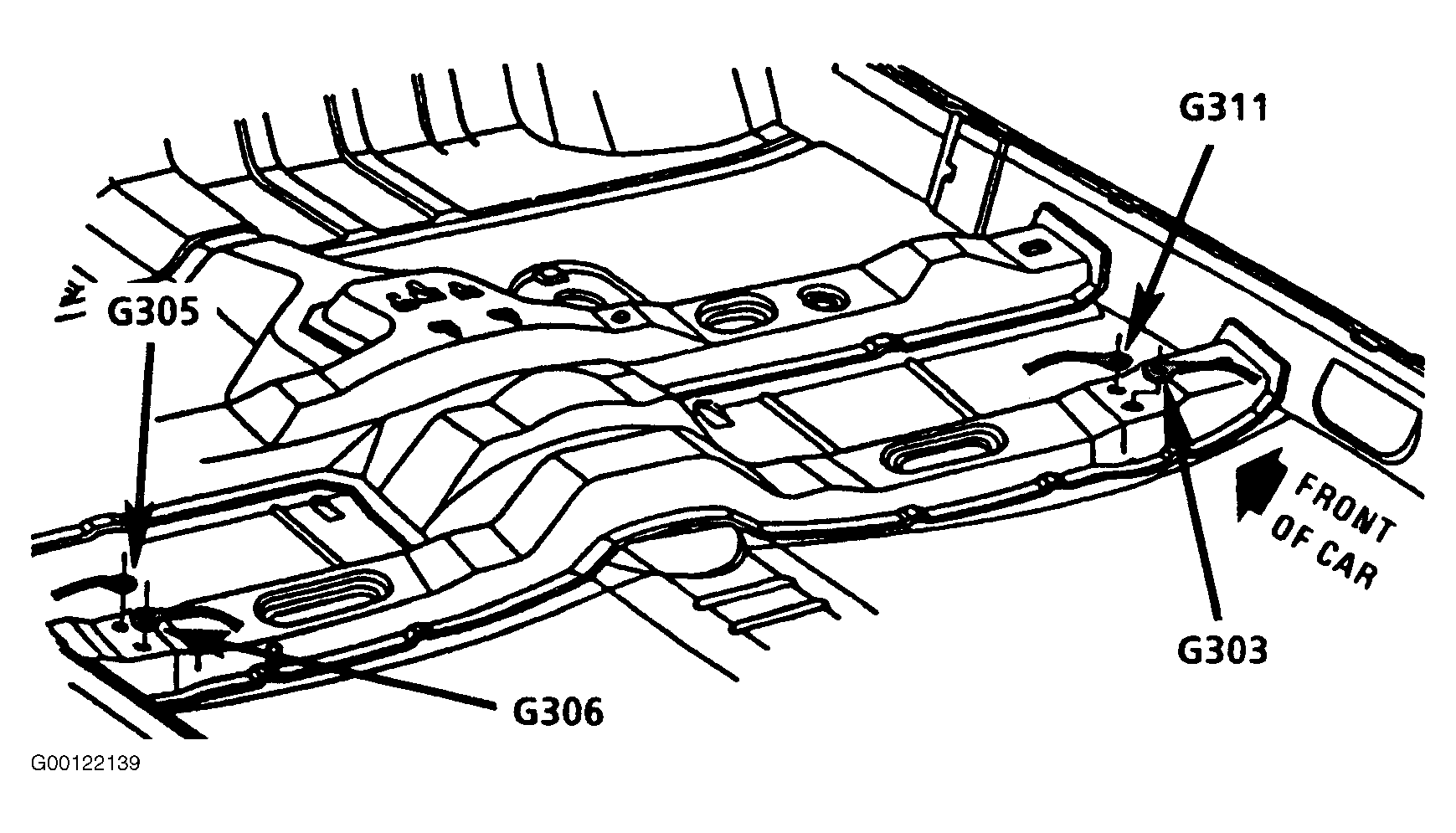

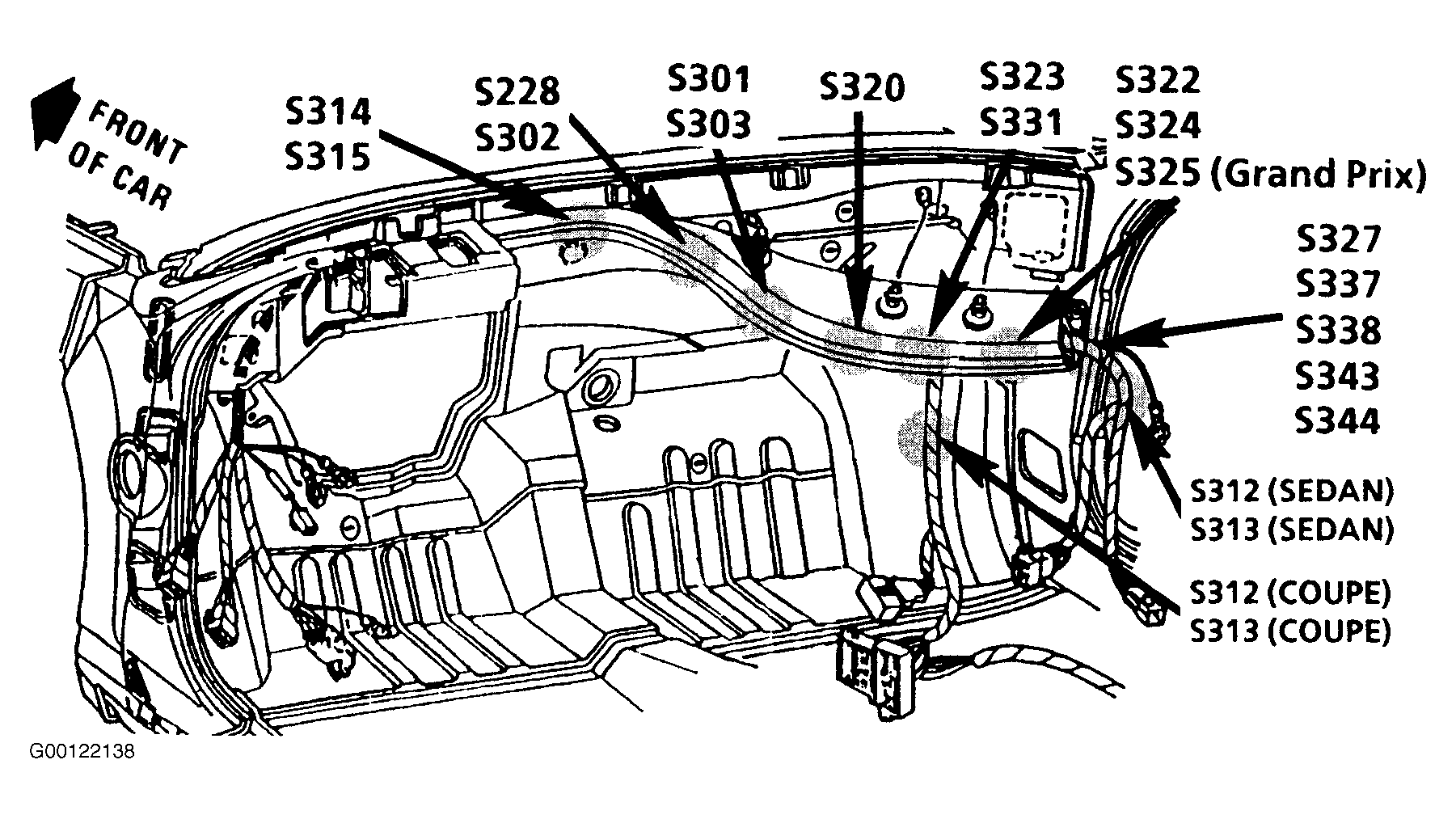

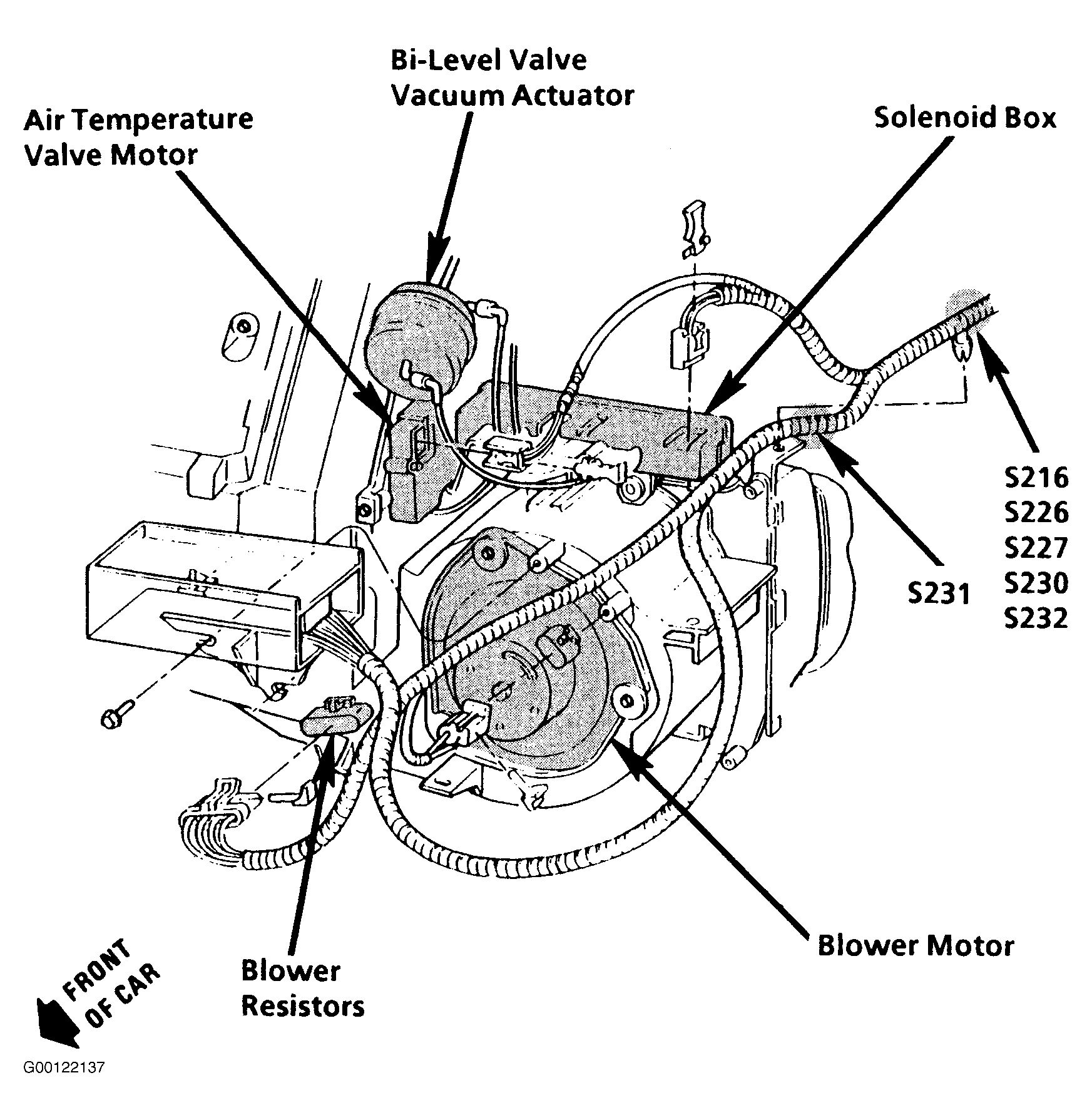

| G305 | Under Left Front Seat. See Fig 3 . |
| S228 | Crosscar Harness, Behind Right Side Of Instrument Panel. See Fig 4 . |
| S231 | Instrument Panel Harness, Behind Right Side Of Instrument Panel. See Fig 5 . |
| S303 | Crosscar Harness, Behind Right Side Of Instrument Panel. See Fig 4 . |
| S308 | Left Front Door Harness, Inside Front Of Door. See Fig 6 . |
| S309 | Right Front Door Harness, Inside Front Of Door. See Fig 6 . |
