Circuit Protection Devices
WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| In-Line Fuse (Left) | In left body harness, under left side of dash. |
| In-Line Fuse (Right) | In left body harness, under left side of dash. |
| In-Line Fuse (Underhood) | Near underhood fuse/relay center. |
| I/P Fuse Block | On left lower kick panel. |
| I/P Relay Block | Under left side of dash. |
| Rear Fuse Block | On left "B" pillar. |

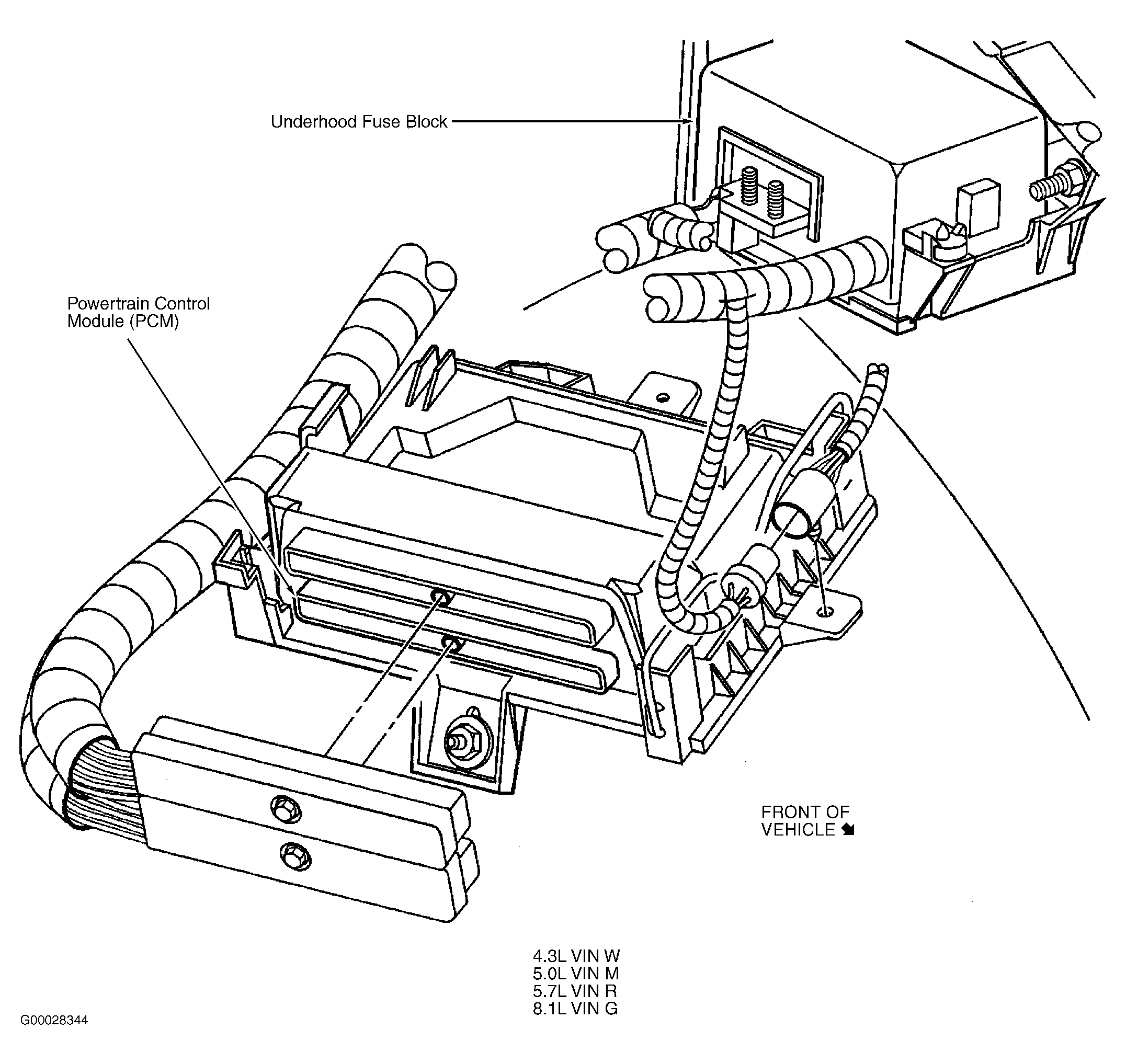

| Underhood Fuse Block (4.3L VIN W) | On left side of engine compartment. See Figure . |
| Underhood Fuse Block (5.0L VIN M) | On left side of engine compartment. See Figure . |
| Underhood Fuse Block (5.7L VIN R) | On left side of engine compartment. See Figure . |
| Underhood Fuse Block (6.5L VIN F) | On left side of engine compartment. |
| Underhood Fuse Block (8.1L VIN G) | On left side of engine compartment. See Figure . |
| Underhood Junction Block | On right front side of engine compartment, next to radiator. |
