Front Console: Installation

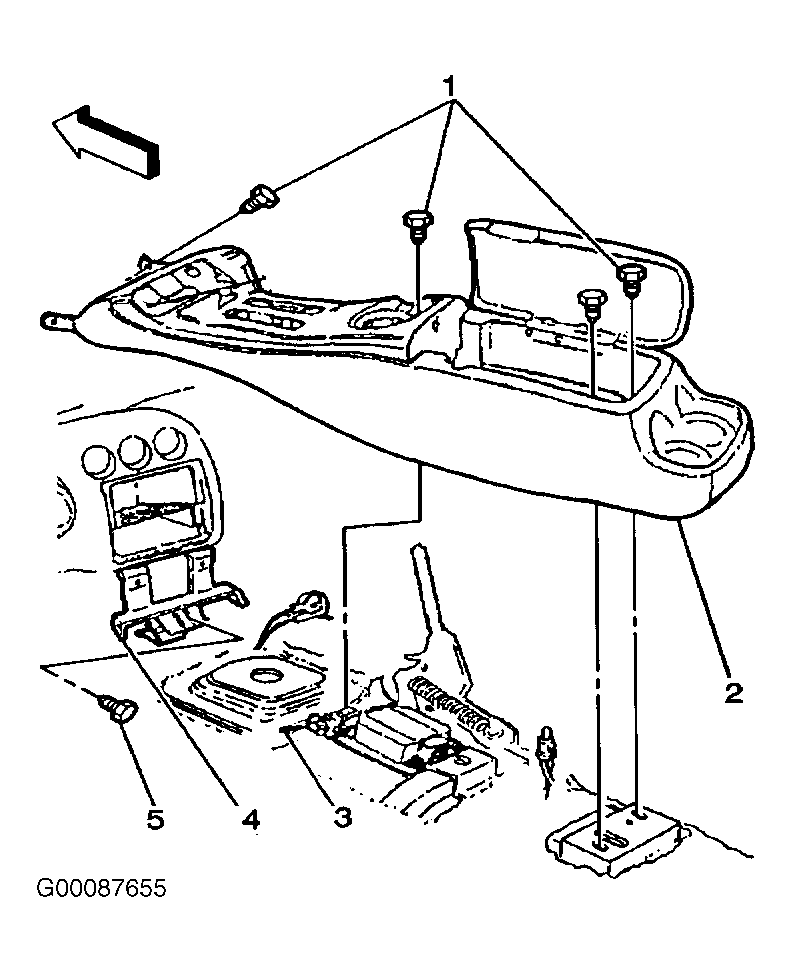

  1. Install the floor console (2) to the vehicle. See Figure . Connect the power outlet electrical connector. Release the park brake handle. Install the floor console bolts (1). Tighten the floor console bolts to specification. See TORQUE SPECIFICATIONS  .
  2. Install the console trim plate. See TRIM PLATE  . Place the shift lever in the PARK position. Turn the ignition key to the OFF position.
