Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Body Control Module (BCM) | Behind lower left side of dash. |
| Cruise Control Module (CCM) | On rear right side of engine compartment. |
| Electronic Brake Control Module (EBCM) | Next to master cylinder. |
| Fuel Tank Module | Under rear of passenger compartment, at fuel tank. |
| Ignition Control Module | On top left of engine. |
| Powertrain Control Module (PCM) (2.2L) | In right rear corner of engine compartment, near strut tower. See Figure. |

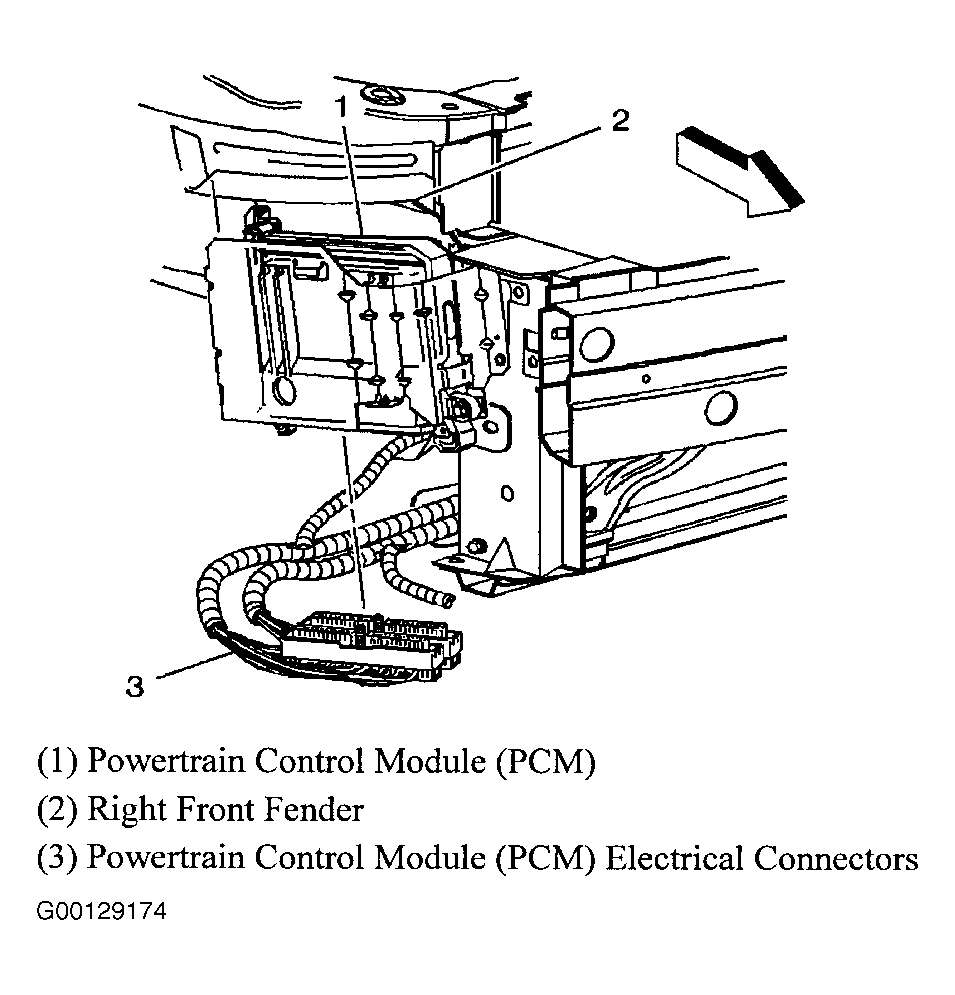

| Powertrain Control Module (PCM) (2.4L) | In right front corner of engine compartment, behind fascia. See Figure |
| Sun Roof Control Module | Integral to sun roof assembly. |
| Turn Signal/Hazard Flasher Module | On dash harness, near steering column. |
