Transmission Control Boot Replacement

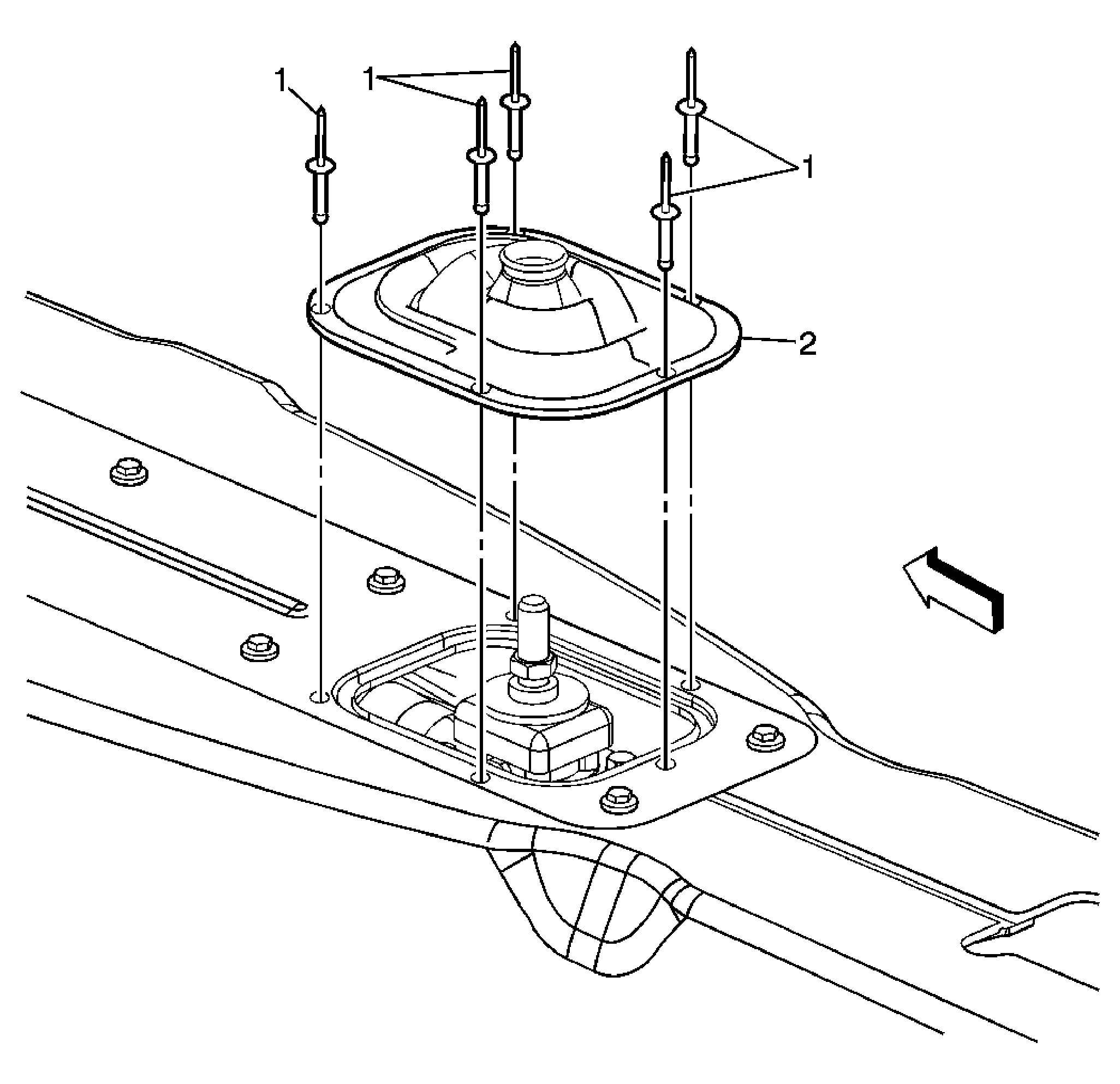

Fig 1: Transmission Control Boot

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the shift control lever and boot. Refer to Control Lever and/or Boot Replacement . Remove the instrument panel center support bracket. Refer to Instrument Panel Center Support Bracket Replacement
1	Shift Control Boot Rivet (Qty: 5)
2	Shift Control Boot

Callout

Component Name

Preliminary Procedures

Remove the shift control lever and boot. Refer to Control Lever and/or Boot Replacement .
Remove the instrument panel center support bracket. Refer to Instrument Panel Center Support Bracket Replacement

Shift Control Boot Rivet (Qty: 5)

Shift Control Boot
