Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| A/C-Heating Control Unit | Behind center of dash. |
| ABS Control Unit | On right front of luggage compartment. |
| ABS/ABD Hydraulic Unit | On left front of luggage compartment. |
| Air Bag Control Unit | Behind center of dash. |
| Alarm System/Central Locking System Control Unit | Under passenger's seat. |
| Convertible Top Control Unit | Under left side of dash. |
| Cruise Control, Control Unit | Under passenger's seat. |
| Glass Roof Control Unit | On emergency seat well. |

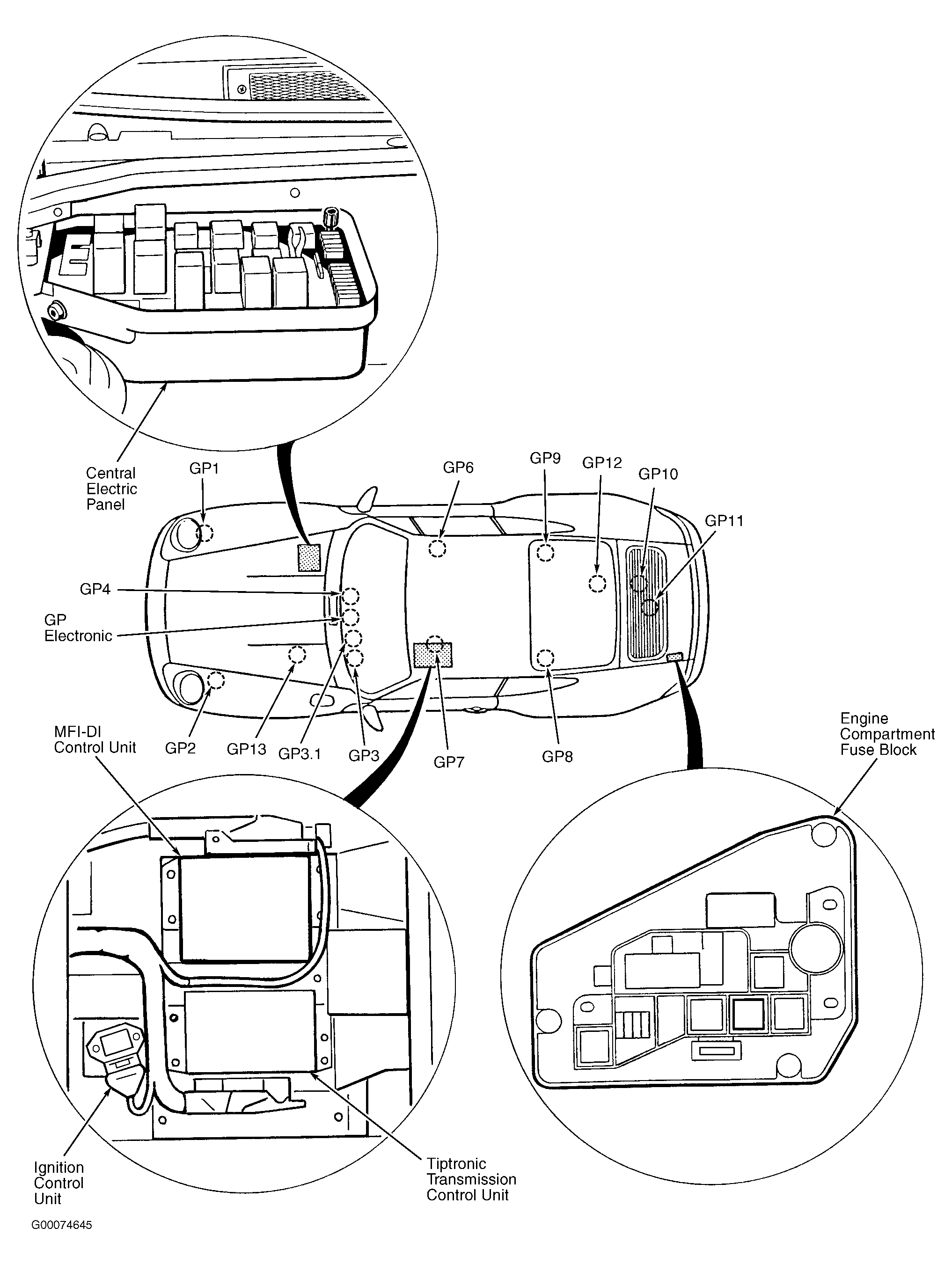

| Ignition Control Unit | Under driver's seat. See Figure . |
| Instrument Light Control Unit | In central electric panel. |
| MFI-DI Control Unit | Under driver's seat. See Figure . |
| Rear Spoiler Control Unit | On right side of firewall. |
| Tiptronic Transmission Control Unit | Under driver's seat. See Figure . |
