Rear Toe-In

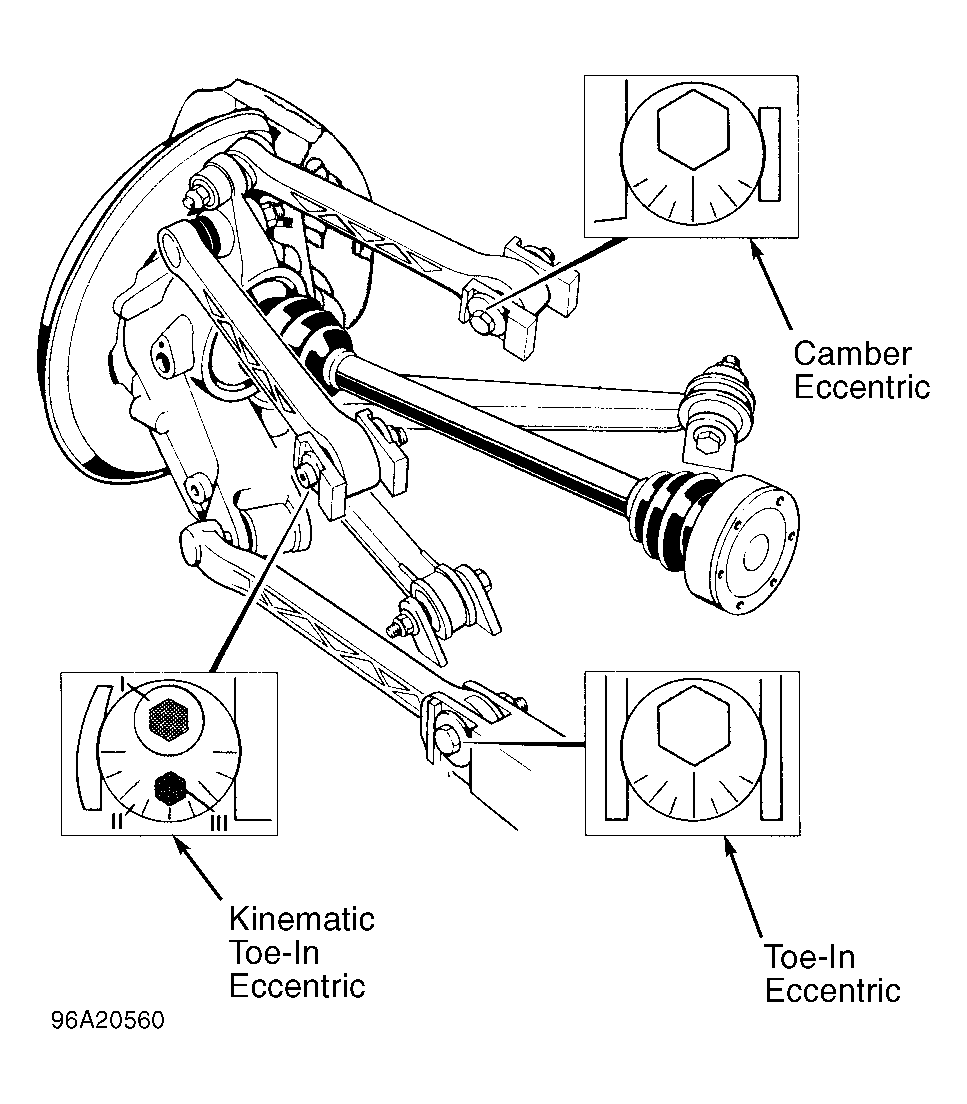

Remove cover for access to rear toe-in eccentric. See Figure. Loosen toe-in eccentric nut. Turn toe-in eccentric nut until rear toe-in is set to specification. See WHEEL ALIGNMENT SPECIFICATIONS. Tighten eccentric nut to specification. See TORQUE SPECIFICATIONS .
