Circuit Protection Devices
CIRCUIT PROTECTION DEVICES

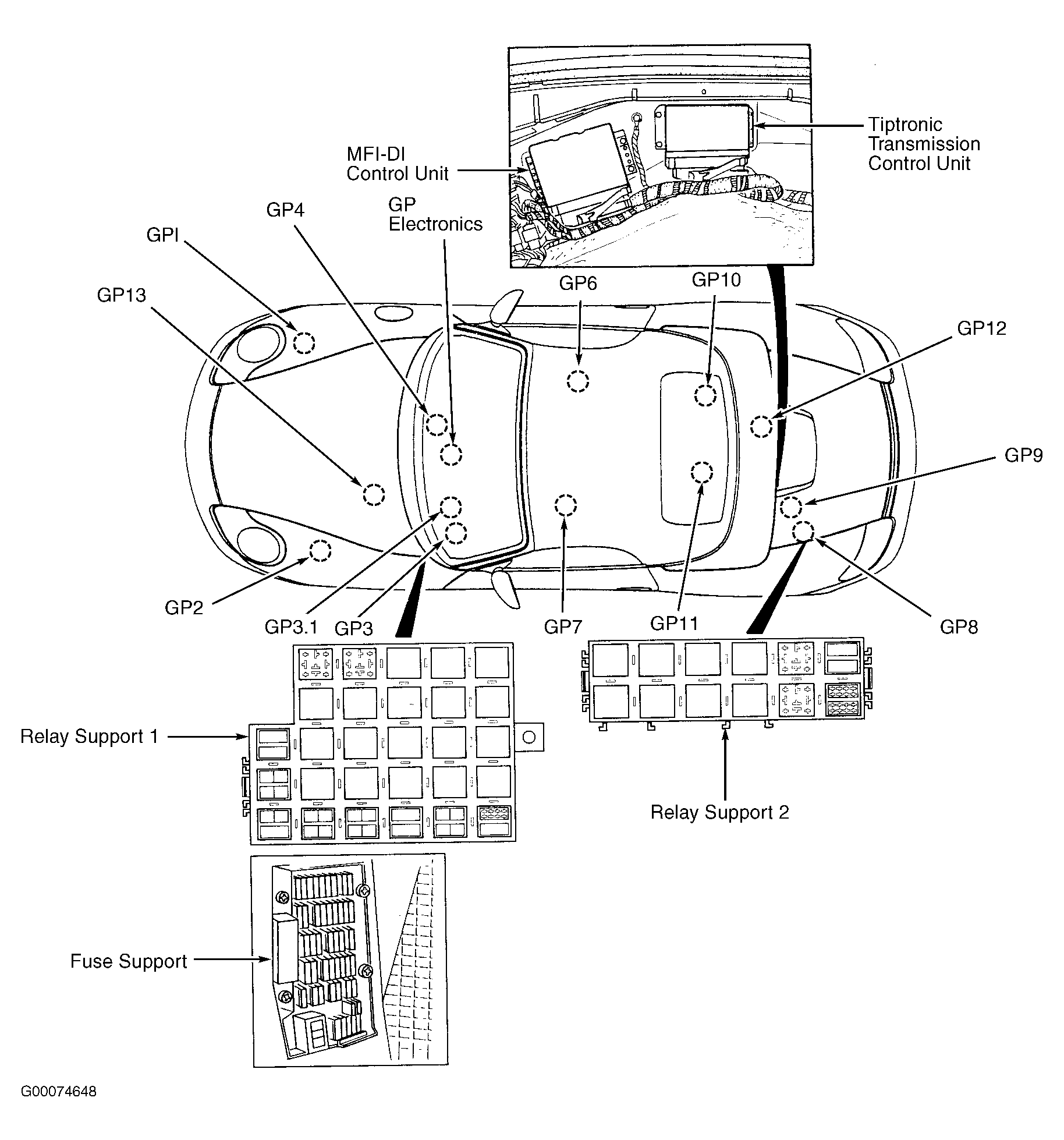

| Component | Component Location |
|---|---|
| Back-Up Lights Fuse | On relay support 2. See Figure. |
| Fuse Support | Under left side of dash, at kick panel. See Figure. |
| Relay Support 1 | Under left side of dash, in footwell. See Figure. |
| Relay Support 2 | On left side of rear luggage compartment. See Figure. |
