Repair and Diagnosis: Transmission: Clutches: Description

Clutch consists of a clutch disc, pressure plate and throw-out bearing. Throw-out bearing is mounted to a release cylinder located inside clutch housing, and is operated hydraulically by a clutch master cylinder. See Fig 1 .

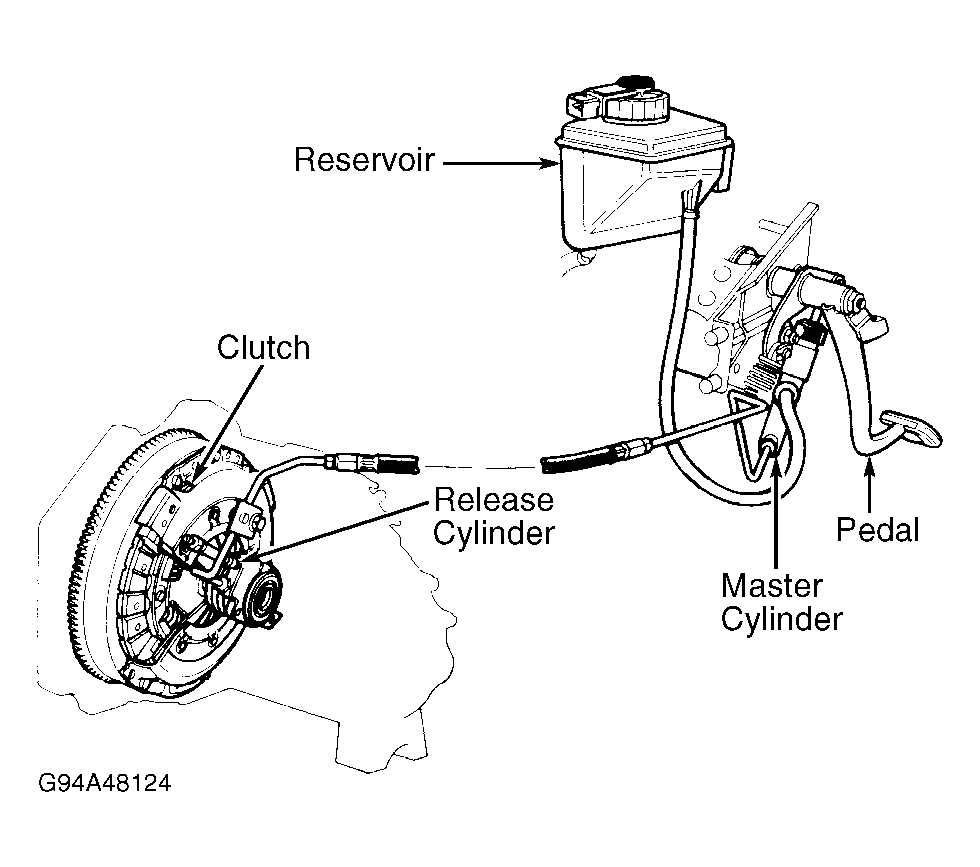

Fig 1: View Of Clutch Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.
