Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

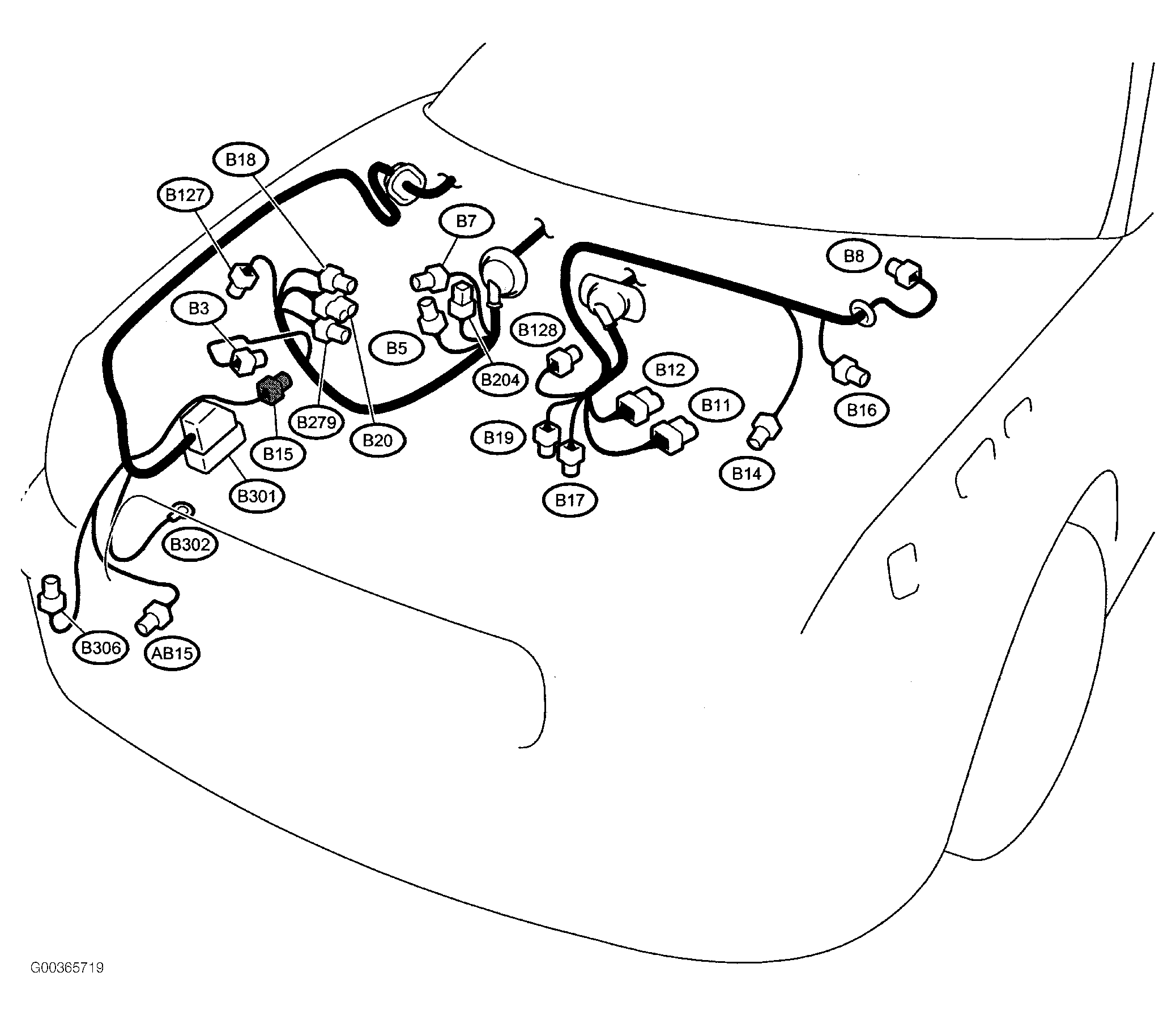

| ABS Control Module (B301) | On right side of engine compartment. See Figure . |

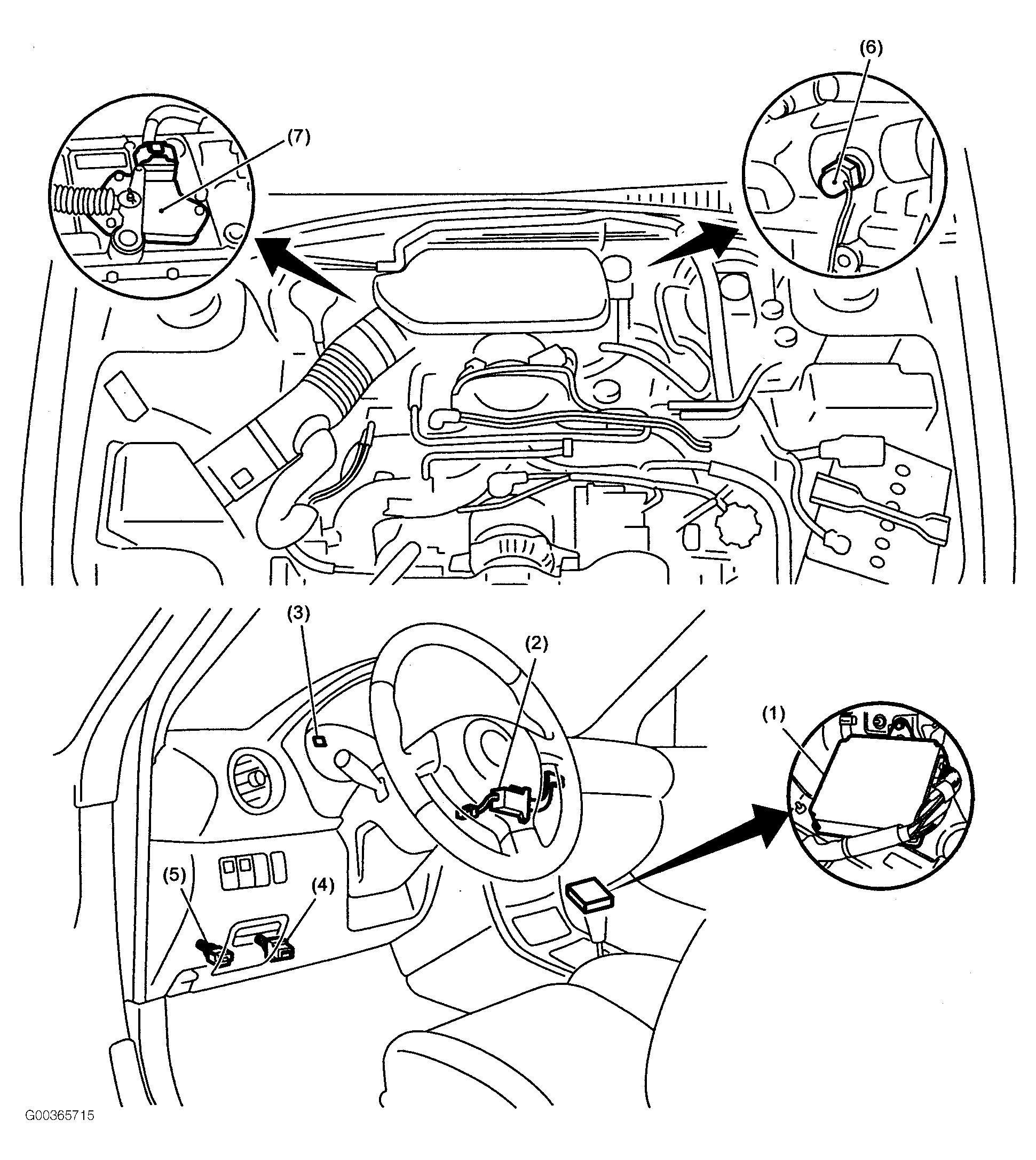

| Air Bag Control Module (AB3) | Under front of center console. See Figure . |
| Auto A/C Control Module (B282) | Below center of dash. See Figure . |
| Body Integrated Unit (B280) | Behind center of dash. See Figure . |
| Cruise Control Module (3) | Behind left side of dash. See Figure . |
| Daytime Running Light Control Module (B96) | Behind right side of dash. See Figure . |
| ECM (Aero) (B84) | Behind right side of dash. See Figure . |
| Engine Control Module (Linear) (1) | Behind right side of dash. See Figure . |

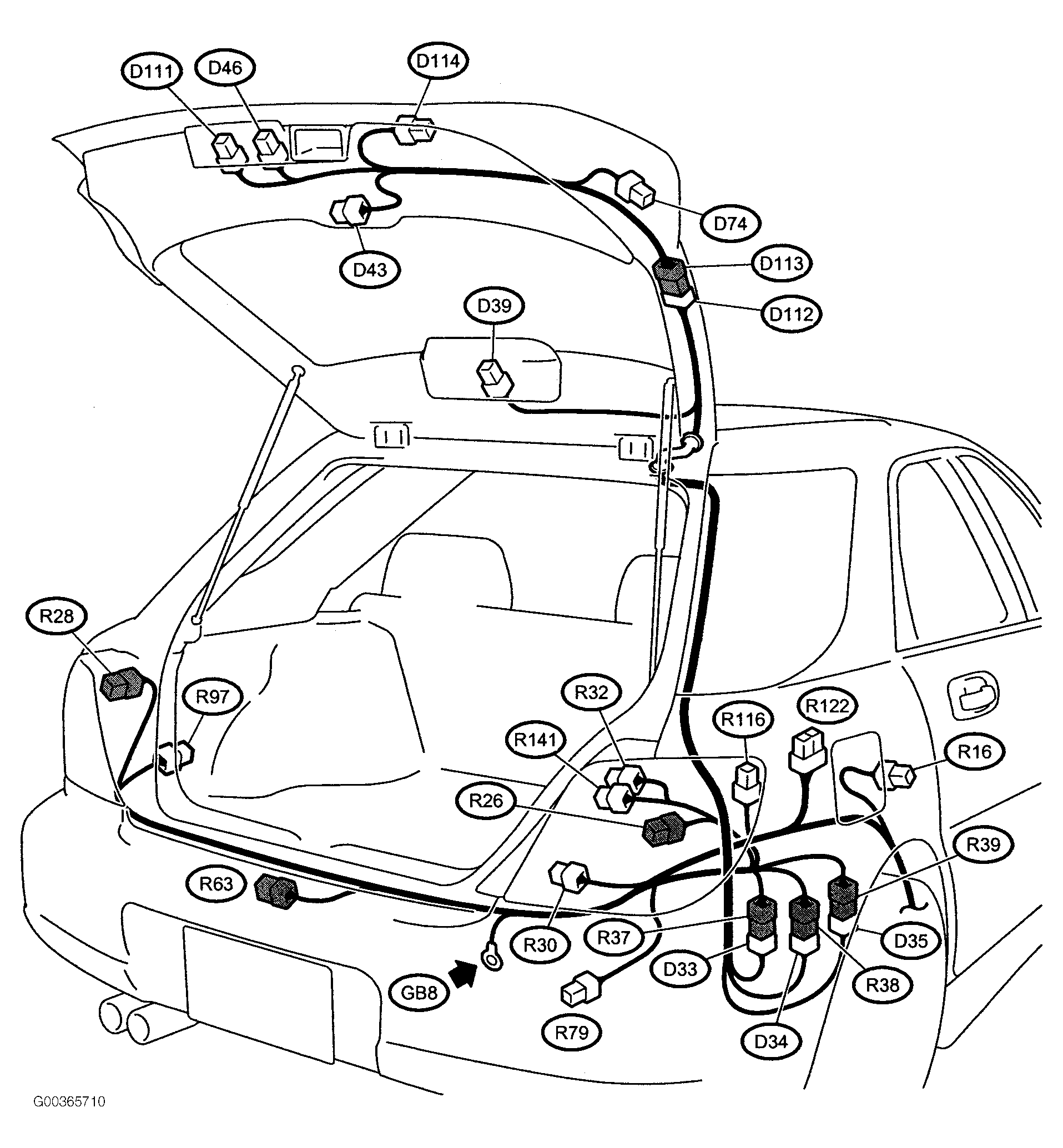

| Fuel Pump Control Module (R122) | Behind right rear quarterpanel. See Figure . |
| Keyless Entry Control Module (B176) | Behind left end of dash. See Figure . |
| Rear Wiper Intermittent Module (R116) | Behind right rear quarterpanel. See Figure . |

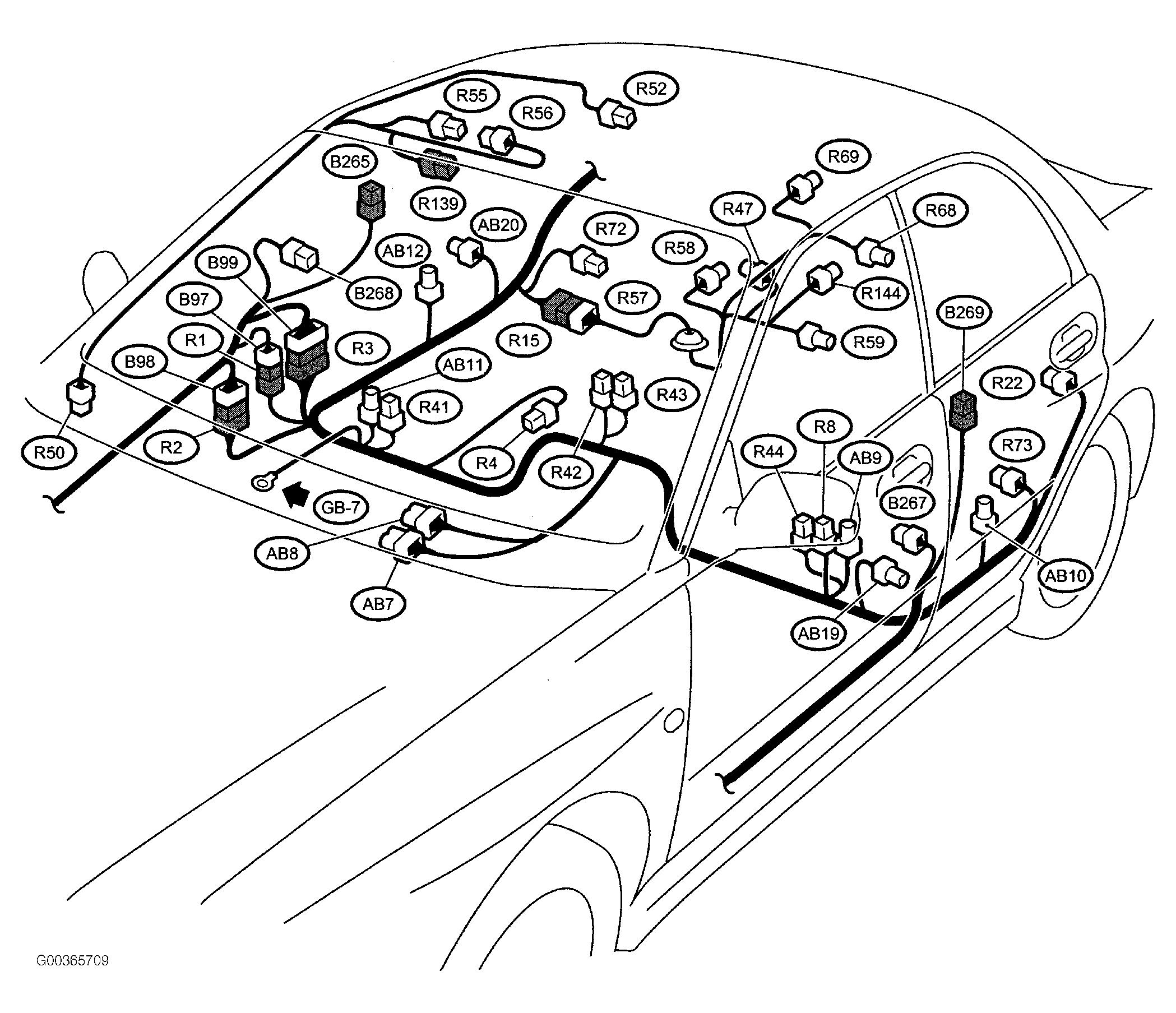

| Seat Air Bag Module (Left) (AB9) | Under left front seat. See Figure . |
| Seat Air Bag Module (Right) (AB11) | Under right front seat. See Figure . |
| Security Control Module (B93) | Behind right side of dash. See Figure . |
| TCM (Transmission Control Module) (B54) | Behind left side of dash. See Figure . |
| Turn & Hazard Module (B32) | Behind dash, right of steering column. See Figure . |
