Transmission Control Replacement

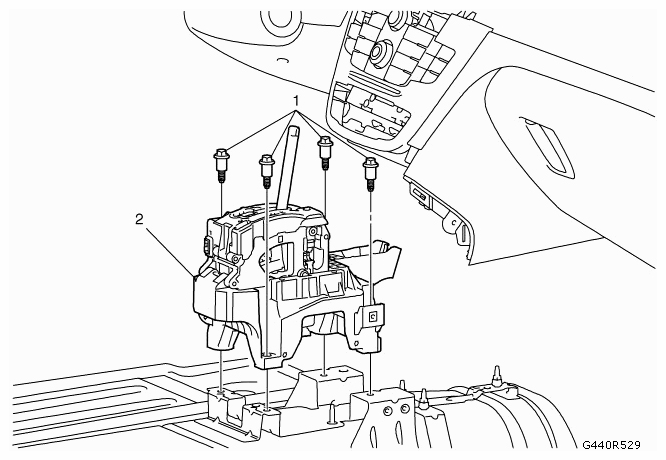

Fig 1: Identifying Shift Control Cable Adjustment Lock

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the shift control boot. Refer to TRANSMISSION CONTROL LEVER BOOT REPLACEMENT . Remove floor console. Refer to FRONT FLOOR CONSOLE REPLACEMENT .
1	Transmission Control Fasteners (Qty: 4). Refer to FASTENER CAUTION . Procedure  Remove the clips on the wiring harness and disconnect the shift control electrical connector Disconnect the shift control cable. Refer to RANGE SELECTOR LEVER CABLE ADJUSTMENT . Tighten  9 Nm (80 lb in)
2	Transmission Control
