Component Locations
NOTE:

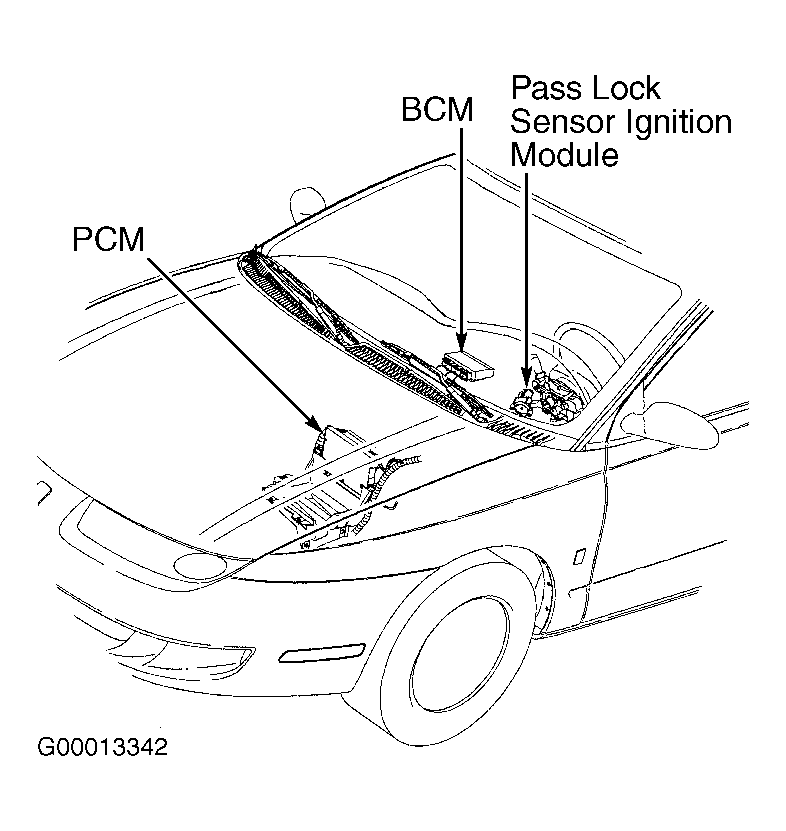

To aid in component locations, refer to illustration. See Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Module | Under Instrument Panel Upper Trim |
| Passlock™ Sensor/Ignition Module | Mounted On Ignition Lock Cylinder |
| Powertrain Control Module | In Engine Compartment, Behind Battery |
