Control Cable Assembly: Installation

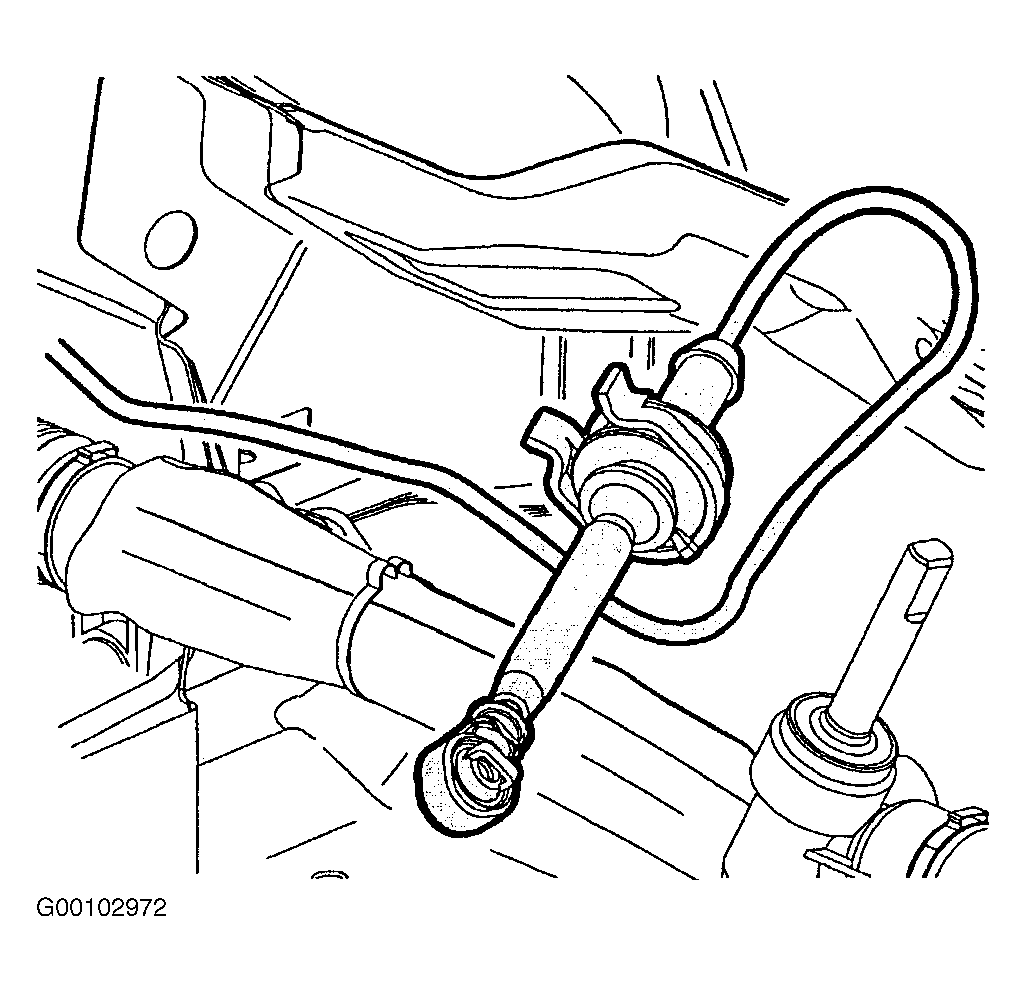

- Route control cable through cable bracket. See Figure . Secure cable to bracket with control cable retainer clip. An audible snap will be heard when properly installed.
- With transaxle range switch lever located in Neutral position, snap cable end fitting onto ball stud of lever. An audible snap will be heard when properly installed. See Figure .

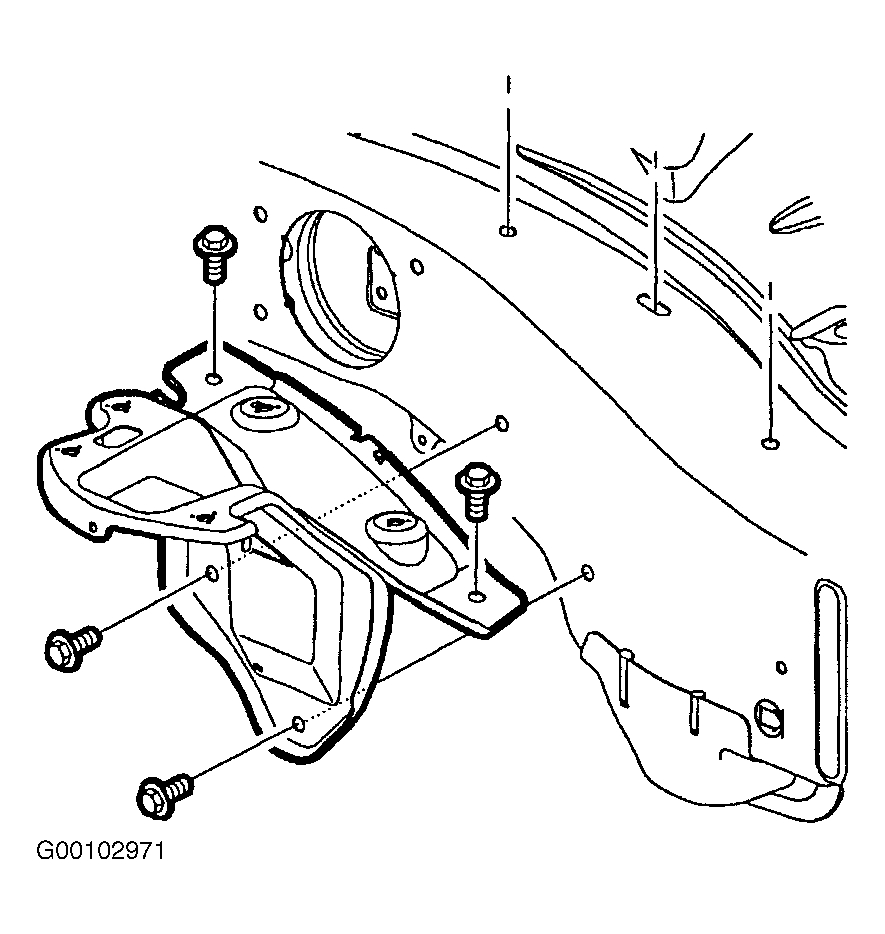

- Position vehicle on hoist and raise vehicle. Route cable along steering gear assembly into clip and up into dash panel. See Fig 2 .

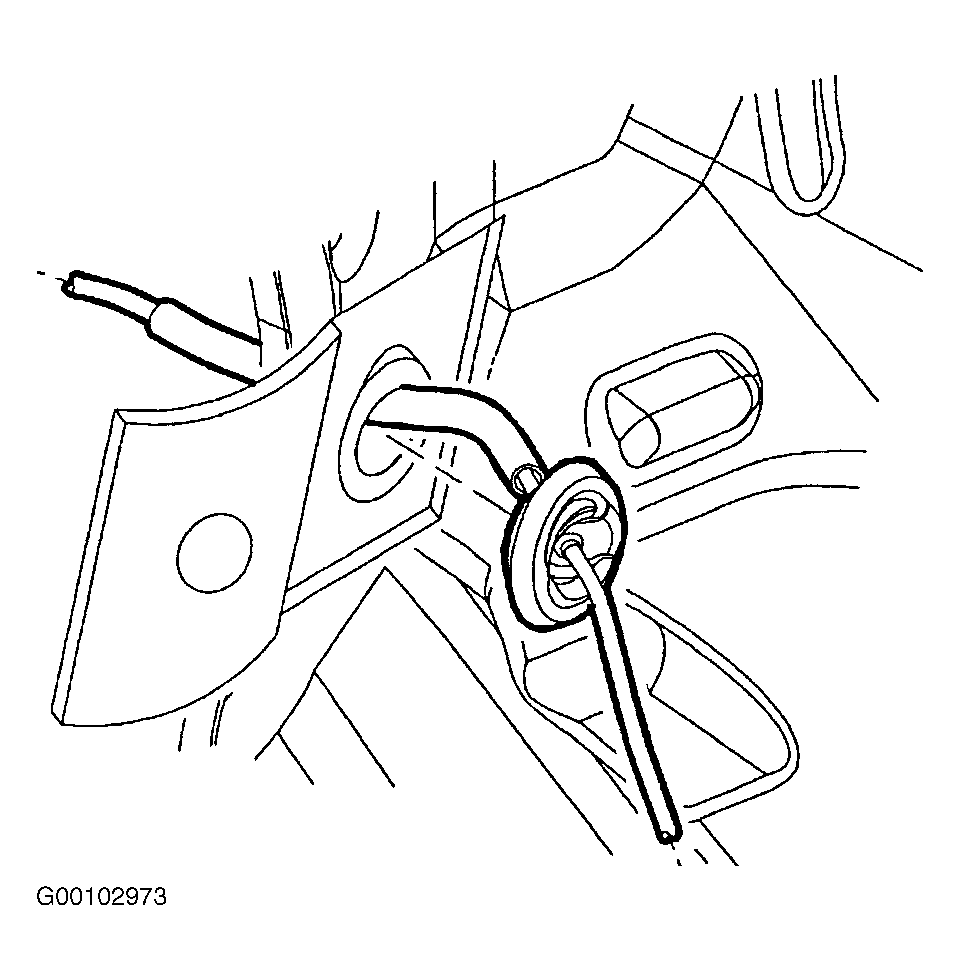

- Lower the vehicle. Secure control cable grommet by pressing cable into pass-through hole in dash panel. See Fig 3 . Ensure gearshift lever assembly is in the Neutral position.
- Connect control cable to control assembly. Secure with control cable retainer clip. Install control cable onto control assembly lever. Adjust control cable assembly. See CONTROL CABLE under ADJUSTMENTS.
- Install the console. See CONSOLE ASSEMBLY . Install battery tray bracket and tighten bolts to 12 ft. lbs. (16 N.m). Install battery cooling box.
- Insert battery and tighten battery hold-down screw to 12 ft. lbs. (16 N.m). Connect battery cables. Install battery cooling box cover. Reprogram radio stations.
