Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Body Control Module | At lower center of instrument panel. See Figure. |
| Cruise Control Module | Behind lower left side of dash, above brake pedal. |

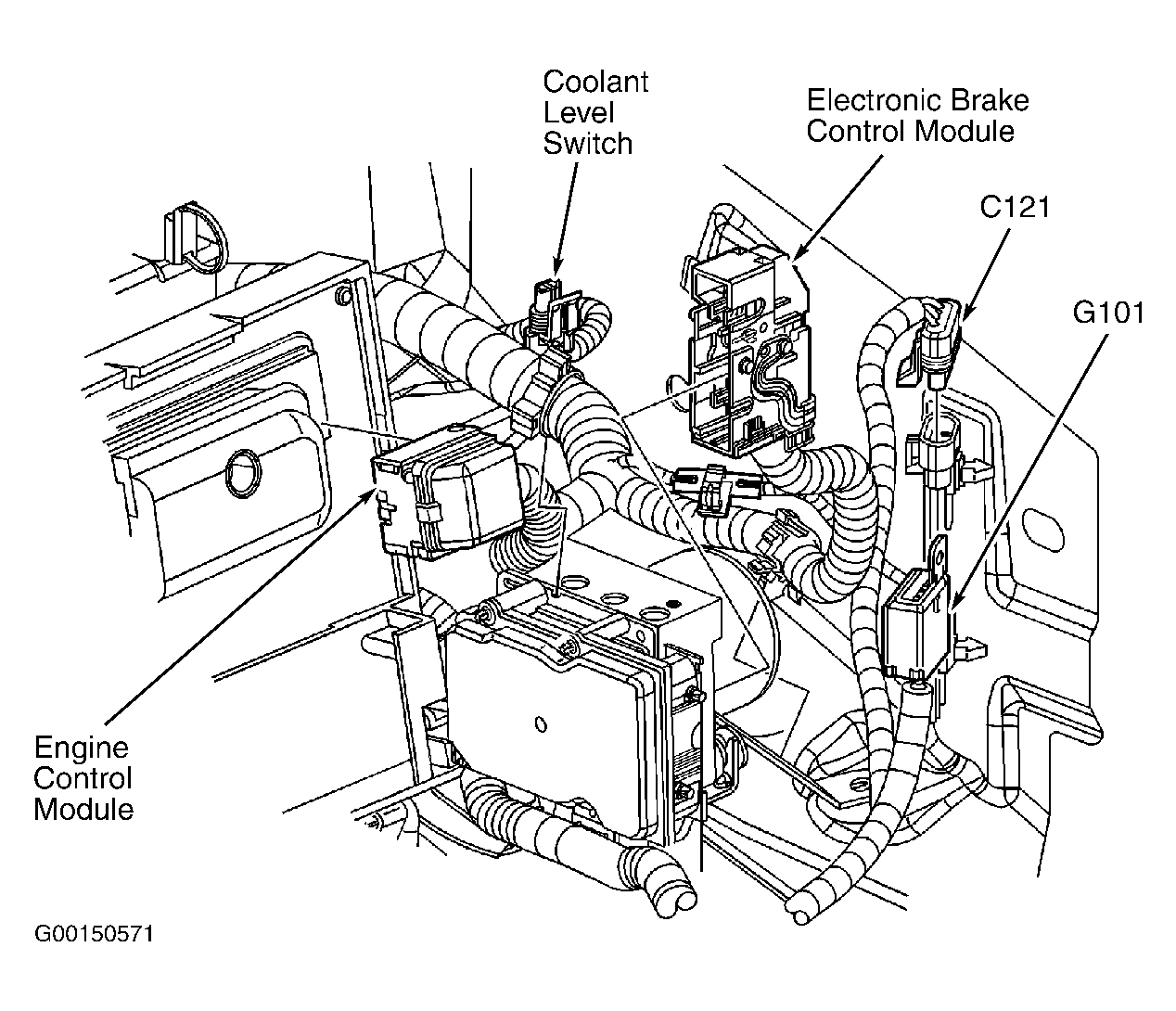

| Electronic Brake Control Module | At left side of engine compartment. See Figure. |
| Engine Control Module | At left side of engine compartment. See Figure. |

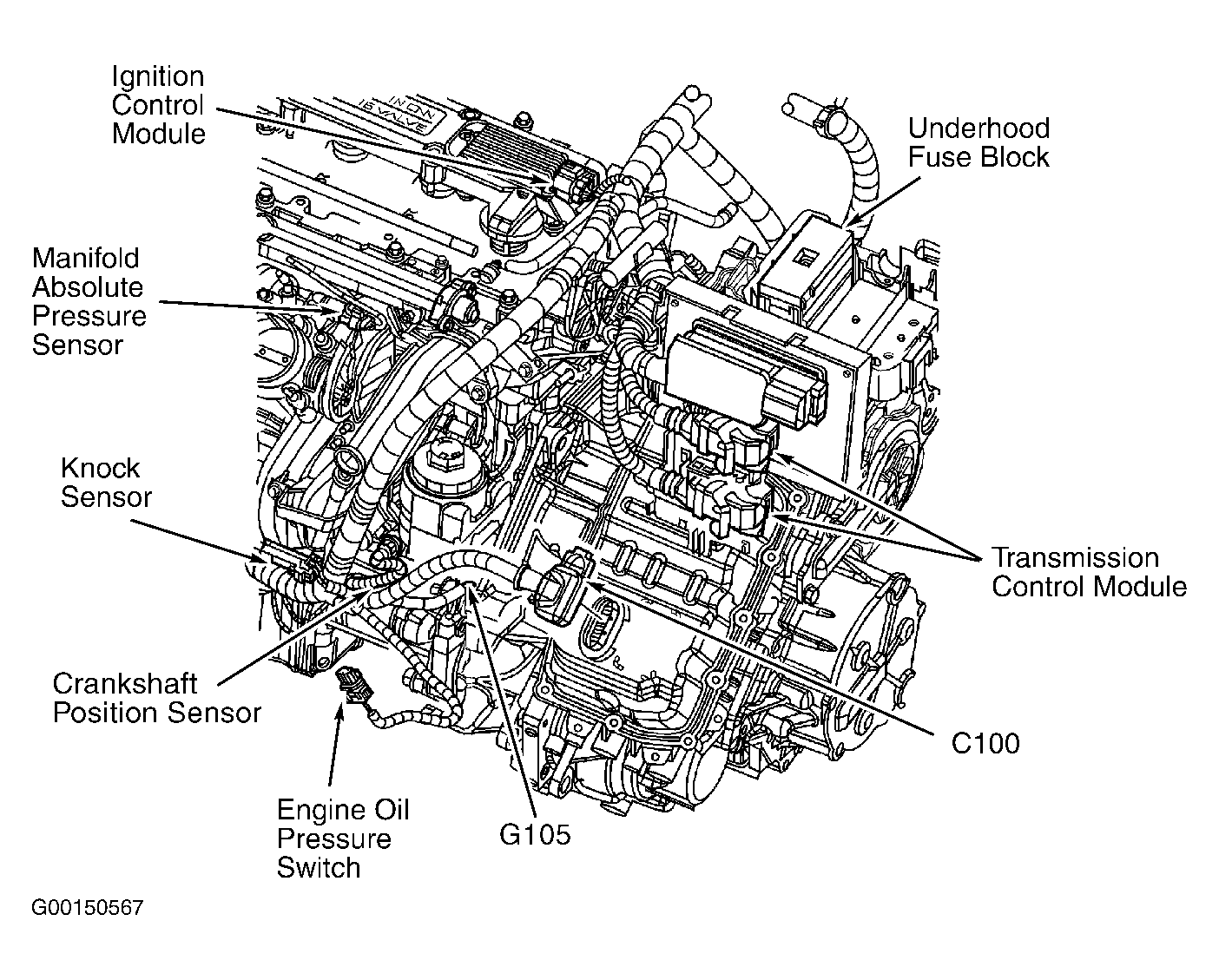

| Ignition Control Module | At top rear of engine, near oil fill cap. See Figure. |
| Inflatable Restraint Roof Rail Module (ASF) (Left) | At left rear side of roof bracket, in "C" pillar. |
| Inflatable Restraint Roof Rail Module (ASF) (Right) | At right rear side of roof bracket, in "C" pillar. |
| Inflatable Restraint Sensing & Diagnostic Module | Under center console, behind emergency brake. |
| Sun Roof Module | Left of sun visor, in headliner. |
| Transmission Control Module | At left rear of engine compartment, near strut tower. See Figure. |
| Vehicle Communication Interface Module | At center of rear package shelf, between rear speakers. |
